Suzuki DT 55 Parts Listings 1988 to 1997

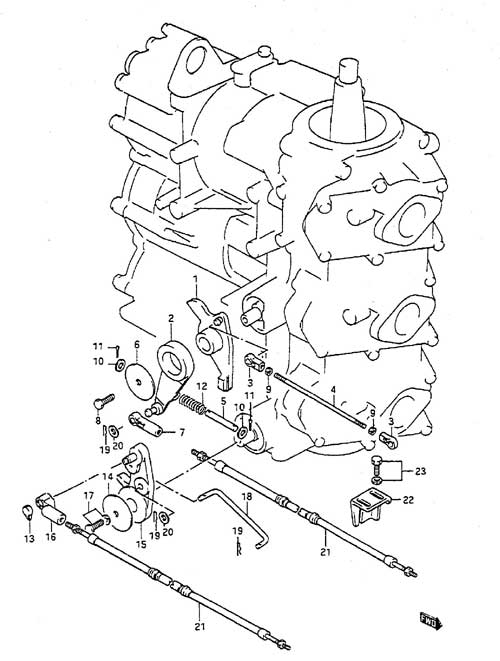

Fig. 9 - Throttle Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19121-94701 Throttle Lever Control (NLA)
SKU: 19121-94701 Weight: 0.100000 Brand: Price: $ 8.47 |
Throttle Lever Control (NLA) | 1 | $ 8.47 | ||
| 2-1 | 19122-94702 Throttle Control Arm
SKU: 19122-94702 Weight: 0.200000 Brand: Price: $ 11.85 |
Throttle Control Arm | 1 | $ 11.85 | 1988 to 1994 Requires Ref# 19 20 | |
| 2-2 | 19122-94702 Throttle Control Arm
SKU: 19122-94702 Weight: 0.200000 Brand: Price: $ 11.85 |
Throttle Control Arm | 1 | $ 11.85 | 1995 to 1997 | |
| 3 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 5 | 19137-94700 Throttle Lever Damper Pin (NLA)
SKU: 19137-94700 Weight: 0.060000 Brand: Price: $ 5.76 |
Throttle Lever Damper Pin (NLA) | 1 | $ 5.76 | ||
| 4 | 19135-94400 Rod
SKU: 19135-94400 Weight: 0.060000 Brand: Price: $ 4.84 |
Rod | 1 | $ 4.84 | ||
| 6 | 19211-94700 Throttle Lever Washer (NLA)
SKU: 19211-94700 Weight: 0.100000 Brand: Price: $ 1.64 |
Throttle Lever Washer (NLA) | 1 | $ 1.64 | ||
| 7 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | ||
| 8-1 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 1 | $ 3.07 | 1988 to 1996 | |
| 8-2 | 01570-06167 BOLT
SKU: 01570-06167 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 1 | $ 2.62 | 1997 | |
| 9-1 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | 1988 to 1996 | |
| 9-2 | 08310-00057 Nut
SKU: 08310-00057 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | 1997 | |
| 10-1 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | 1988 to 1996 | |
| 10-2 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | 1997 | |
| 11 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 12 | 09440-09021 Spring
SKU: 09440-09021 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 13 | 19113-95300 Connector Cap
SKU: 19113-95300 Weight: 0.060000 Brand: Price: $ 2.26 |
Connector Cap | 1 | $ 2.26 | ||
| 14 | 19211-94700 Throttle Lever Washer (NLA)
SKU: 19211-94700 Weight: 0.100000 Brand: Price: $ 1.64 |
Throttle Lever Washer (NLA) | 1 | $ 1.64 | ||
| 15 | 23211-94702 Clutch Control Arm (NLA)
SKU: 23211-94702 Weight: 0.125000 Brand: Price: $ 8.67 |
Clutch Control Arm (NLA) | 1 | $ 8.67 | ||
| 16 | 67467-95201 Cable Connector
SKU: 67467-95201 Weight: 0.060000 Brand: Price: $ 5.49 |
Cable Connector | 1 | $ 5.49 | ||
| 17 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 1 | $ 3.07 | ||
| 18 | 23111-94701 Clutch Link (NLA)
SKU: 23111-94701 Weight: 0.100000 Brand: Price: $ 12.93 |
Clutch Link (NLA) | 1 | $ 12.93 | ||
| 19 | 09385-06003 Pin (NLA)
SKU: 09385-06003 Weight: 0.060000 Brand: Price: $ 1.21 |
Pin (NLA) | 2 | $ 1.21 | ||
| 20 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | ||
| 22 | 67271-95213 Remocon Holder (NLA)
SKU: 67271-95213 Weight: 0.250000 Brand: Price: $ 18.65 |
Remocon Holder (NLA) | 1 | $ 18.65 | ||
| 23 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
