Suzuki DT 55 Parts Listings 1988 to 1997

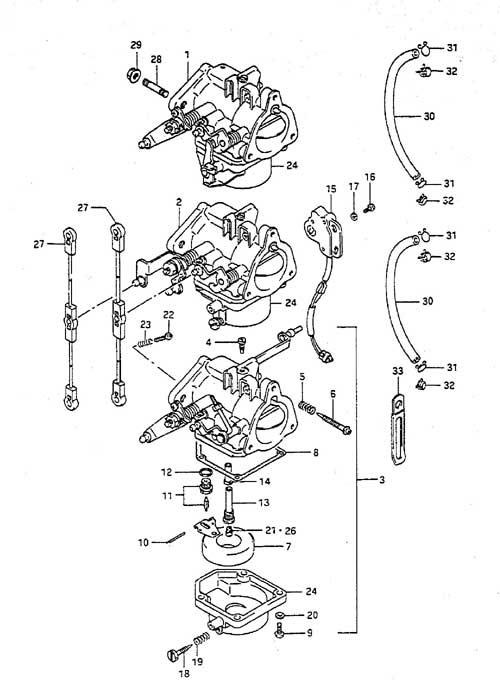

Fig. 4 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-947A0 Top Carburetor Assembly (NLA)
SKU: 13201-947A0 Weight: 0.100000 Brand: Price: $ 374.30 |
Top Carburetor Assembly (NLA) | 1 | $ 374.30 | 1988 | |
| 1-2 | 13201-947F0 Top Carburetor Assembly (NLA)
SKU: 13201-947F0 Weight: 0.100000 Brand: Price: $ 259.42 |
Top Carburetor Assembly (NLA) | 1 | $ 259.42 | 1989 to 1997 | |
| 2-1 | 13202-947A0 2nd Carburetor Assembly (NLA)
SKU: 13202-947A0 Weight: 0.100000 Brand: Price: $ 389.85 |
2nd Carburetor Assembly (NLA) | 1 | $ 389.85 | 1988 | |
| 2-3 | 13202-947F1 2nd Carburetor Assembly (NLA)
SKU: 13202-947F1 Weight: 1.000000 Brand: Price: $ 439.54 |
2nd Carburetor Assembly (NLA) | 1 | $ 439.54 | 1989 to 1997 | |
| 3-1 | 13203-947A0 3rd Carburetor Assembly (NLA)
SKU: 13203-947A0 Weight: 1.600000 Brand: Price: $ 364.62 |
3rd Carburetor Assembly (NLA) | 1 | $ 364.62 | 1988 | |
| 3-2 | 13203-947C0 3rd Carburetor Assembly (NLA)
SKU: 13203-947C0 Weight: 0.100000 Brand: Price: $ 286.64 |
3rd Carburetor Assembly (NLA) | 1 | $ 286.64 | 1988 to S/N 911317 | |
| 3-3 | 13203-947F0 3rd Carburetor Assembly (NLA)
SKU: 13203-947F0 Weight: 0.100000 Brand: Price: $ 252.50 |
3rd Carburetor Assembly (NLA) | 1 | $ 252.50 | 1989 to 1997 S/N 911318 Newer | |
| 4-1 | 09492-75001 Pilot Jet #75
SKU: 09492-75001 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #75 | 3 | $ 10.00 | 1988 | |
| 4-2 | 09492-77001 Pilot Jet #77.5
SKU: 09492-77001 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #77.5 | 3 | $ 10.00 | 1989 to 1997 | |
| 5 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 6 | 13269-93311 Pilot Air Screw
SKU: 13269-93311 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 3 | $ 8.28 | ||
| 7 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 3 | $ 20.17 | ||
| 8 | 13251-93320 Float Chamber Gasket
SKU: 13251-93320 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 3 | $ 8.56 | ||
| 9 | 13249-95520 Screw (NLA)
SKU: 13249-95520 Weight: 0.060000 Brand: Price: $ 2.35 |
Screw (NLA) | 12 | $ 2.35 | ||
| 10 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 3 | $ 3.28 | ||
| 11 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 3 | $ 49.35 | ||
| 12 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 3 | $ 1.91 | ||
| 13 | 13236-94410 Main Nozzle (NLA)
SKU: 13236-94410 Weight: 0.060000 Brand: Price: $ 20.09 |
Main Nozzle (NLA) | 3 | $ 20.09 | ||
| 14 | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.47 |
Upper Nozzle | 3 | $ 3.47 | ||
| 15-1 | 37810-94612 Throttle Valve Sensor Assembly (NLA)
SKU: 37810-94612 Weight: 0.180000 Brand: Price: $ 62.55 |
Throttle Valve Sensor Assembly (NLA) | 1 | $ 62.55 | 1988 | |
| 15-2 | 37810-95606 Throttle Valve Sensor Assembly
SKU: 37810-95606 Weight: 0.180000 Brand: Price: $ 232.07 |
Throttle Valve Sensor Assembly | 1 | $ 232.07 | 1989 to 1997 | |
| 16 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 2 | $ 1.11 | ||
| 17 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 18 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 3 | $ 7.95 | ||
| 19 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 20 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 12 | $ 1.85 | ||
| 21-1 | 09491-23019 Main Jet #117.5
SKU: 09491-23019 Weight: 0.100000 Brand: Price: $ 11.29 |
Main Jet #117.5 | 3 | $ 11.29 | 1988 | |
| 21-2 | 09491-24026 Main Jet #120
SKU: 09491-24026 Weight: 0.060000 Brand: Price: $ 15.58 |
Main Jet #120 | 3 | $ 15.58 | 1989 to 1997 | |
| 22 | 13534-95D00 Screw
SKU: 13534-95D00 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 23 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 24 | 13240-94600 Float Chamber Assembly
SKU: 13240-94600 Weight: 0.200000 Brand: Price: $ 70.55 |
Float Chamber Assembly | 3 | $ 70.55 | ||
| 26-1 | 09491-21019 Main Jet #107.5
SKU: 09491-21019 Weight: 0.100000 Brand: Price: $ 11.42 |
Main Jet #107.5 | 3 | $ 11.42 | Optional | |
| 26-2 | 09491-22011 Main Jet #112.5
SKU: 09491-22011 Weight: 0.060000 Brand: Price: $ 9.36 |
Main Jet #112.5 | 3 | $ 9.36 | Optional | |
| 26-3 | 09491-24023 Main Jet #122.5
SKU: 09491-24023 Weight: 0.060000 Brand: Price: $ 16.18 |
Main Jet #122.5 | 3 | $ 16.18 | Optional | |
| 26-4 | 09491-25014 Main Jet #125
SKU: 09491-25014 Weight: 0.060000 Brand: Price: $ 15.07 |
Main Jet #125 | 3 | $ 15.07 | Optional | |
| 27 | 13510-94700 Throttle Rod Assembly (NLA)
SKU: 13510-94700 Weight: 0.060000 Brand: Price: $ 9.73 |
Throttle Rod Assembly (NLA) | 2 | $ 9.73 | ||
| 28 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 3 | $ 2.03 | ||
| 29 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 6 | $ 2.27 | ||
| 30 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->120 | |
| 31 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 4 | $ 1.86 | 1988 to 1990 | |
| 32 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1997 | |
| 33 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 3 | $ 1.86 | ||
| 34 | 13910-94701 Carburetor Repair Kit
SKU: 13910-94701 Weight: 0.060000 Brand: Price: $ 32.39 |
Carburetor Repair Kit | 3 | $ 32.39 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
