Suzuki DT 55 Parts Listings 1988 to 1997

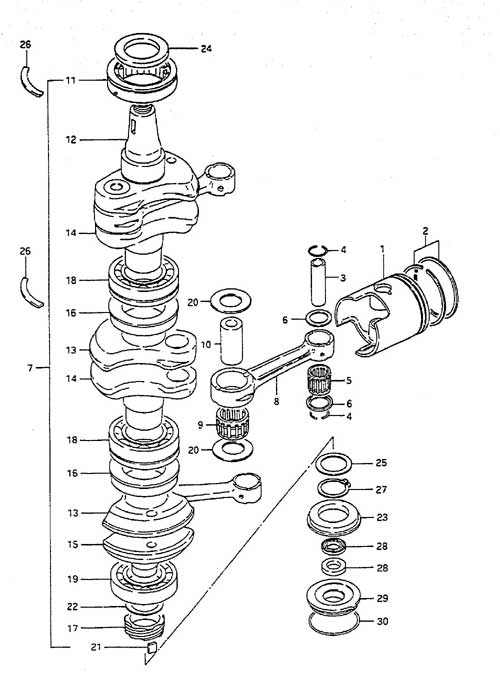

Fig. 2 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12110-94701 Piston (NLA)
SKU: 12110-94701 Weight: 0.800000 Brand: Price: $ 74.71 |
Piston (NLA) | 3 | $ 74.71 | ||
| 1-2 | 12100-94701-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-94701-025 Weight: 1.010000 Brand: Price: $ 119.09 |
Piston & Ring Set (OS:0.25) (NLA) | 3 | $ 119.09 | ||
| 1-3 | 12100-94701-050 Piston & Ring Set (OS:0.50)(NLA)
SKU: 12100-94701-050 Weight: 1.010000 Brand: Price: $ 110.27 |
Piston & Ring Set (OS:0.50)(NLA) | 3 | $ 110.27 | ||
| 2-1 | 12140-94700 Piston Ring Set
SKU: 12140-94700 Weight: 0.060000 Brand: Price: $ 35.86 |
Piston Ring Set | 3 | $ 35.86 | ||
| 2-2 | 12140-94700-025 Piston Ring Set (OS:0.25)
SKU: 12140-94700-025 Weight: 0.125000 Brand: Price: $ 34.74 |
Piston Ring Set (OS:0.25) | 3 | $ 34.74 | ||
| 2-3 | 12140-94700-050 Piston Ring Set (OS:0.50)
SKU: 12140-94700-050 Weight: 0.060000 Brand: Price: $ 34.74 |
Piston Ring Set (OS:0.50) | 3 | $ 34.74 | ||
| 3 | 12151-94700 Piston Pin
SKU: 12151-94700 Weight: 0.160000 Brand: Price: $ 15.49 |
Piston Pin | 3 | $ 15.49 | ||
| 4 | 09381-20003 Circlip
SKU: 09381-20003 Weight: 0.060000 Brand: Price: $ 1.99 |
Circlip | 6 | $ 1.99 | ||
| 5 | 09263-20072 Bearing (20x26x24)
SKU: 09263-20072 Weight: 0.080000 Brand: Price: $ 27.92 |
Bearing (20x26x24) | 3 | $ 27.92 | ||
| 6 | 09169-20006 Washer
SKU: 09169-20006 Weight: 0.060000 Brand: Price: $ 8.06 |
Washer | 6 | $ 8.06 | ||
| 7 | 12200-94714 Crankshaft Assembly (NLA)
SKU: 12200-94714 Weight: 20.000000 Brand: Price: $ 1,676.64 |
Crankshaft Assembly (NLA) | 1 | $ 1,676.64 | ||
| 8 | 12161-92L00 Connecting Rod
SKU: 12161-92L00 Weight: 1.000000 Brand: Price: $ 134.09 |
Connecting Rod | 3 | $ 134.09 | ||
| 9 | 09263-27005 Bearing (27x37x22)
SKU: 09263-27005 Weight: 0.250000 Brand: Price: $ 52.49 |
Bearing (27x37x22) | 3 | $ 52.49 | ||
| 10 | 12211-94400 Crank Pin (NLA)
SKU: 12211-94400 Weight: 0.100000 Brand: Price: $ 18.64 |
Crank Pin (NLA) | 3 | $ 18.64 | ||
| 11 | 09264-35004 Bearing (35x72x23)
SKU: 09264-35004 Weight: 0.250000 Brand: Price: $ 283.63 |
Bearing (35x72x23) | 1 | $ 283.63 | ||
| 12 | 12221-94702 Upper Crankshaft (NLA)
SKU: 12221-94702 Weight: 0.100000 Brand: Price: $ 109.28 |
Upper Crankshaft (NLA) | 1 | $ 109.28 | ||
| 13 | 12232-94703 Middle Under Wheel (NLA)
SKU: 12232-94703 Weight: 10.000000 Brand: Price: $ 122.89 |
Middle Under Wheel (NLA) | 2 | $ 122.89 | ||
| 14 | 12231-94703 Middle Upper Wheel (NLA)
SKU: 12231-94703 Weight: 10.000000 Brand: Price: $ 122.89 |
Middle Upper Wheel (NLA) | 2 | $ 122.89 | ||
| 15 | 12240-94701 Under Crankshaft (NLA)
SKU: 12240-94701 Weight: 10.000000 Brand: Price: $ 120.82 |
Under Crankshaft (NLA) | 1 | $ 120.82 | ||
| 16 | 09289-45L01 Oil Seal (45x72x12)
SKU: 09289-45L01 Weight: 0.060000 Brand: Price: $ 40.50 |
Oil Seal (45x72x12) | 2 | $ 40.50 | ||
| 17 | 16321-95301 Oil Pump Drive Gear (NLA)
SKU: 16321-95301 Weight: 0.100000 Brand: Price: $ 88.04 |
Oil Pump Drive Gear (NLA) | 1 | $ 88.04 | ||
| 18 | 09269-30012 Bearing (30x72x19)(NLA)
SKU: 09269-30012 Weight: 0.800000 Brand: Price: $ 101.66 |
Bearing (30x72x19)(NLA) | 2 | $ 101.66 | ||
| 19 | 09262-35L09 Bearing (35x72x17)
SKU: 09262-35L09 Weight: 0.700000 Brand: Price: $ 77.92 |
Bearing (35x72x17) | 1 | $ 77.92 | ||
| 20 | 09160-27008 Washer
SKU: 09160-27008 Weight: 0.060000 Brand: Price: $ 3.19 |
Washer | 6 | $ 3.19 | ||
| 21 | 09421-08001 Key
SKU: 09421-08001 Weight: 0.060000 Brand: Price: $ 2.86 |
Key | 1 | $ 2.86 | ||
| 22 | 09181-30212 Washer (NLA)
SKU: 09181-30212 Weight: 0.060000 Brand: Price: $ 2.67 |
Washer (NLA) | 1 | $ 2.67 | ||
| 23 | 09283-30077 Oil Seal (30x55x8x)
SKU: 09283-30077 Weight: 0.060000 Brand: Price: $ 13.59 |
Oil Seal (30x55x8x) | 1 | $ 13.59 | ||
| 24 | 09283-35L01 Crankshaft Oil Seal
SKU: 09283-35L01 Weight: 0.060000 Brand: Price: $ 27.94 |
Crankshaft Oil Seal | 1 | $ 27.94 | ||
| 25 | 09181-30167 Shim (1.00)
SKU: 09181-30167 Weight: 0.060000 Brand: Price: $ 3.18 |
Shim (1.00) | 1 | $ 3.18 | ||
| 26 | 09390-72008 C Ring
SKU: 09390-72008 Weight: 0.060000 Brand: Price: $ 3.02 |
C Ring | 2 | $ 3.02 | ||
| 27 | 08331-31309 CIRCLIP
SKU: 08331-31309 Weight: 0.100000 Brand: Price: $ 2.59 |
CIRCLIP | 1 | $ 2.59 | ||
| 28 | 09282-17009 Oil Seal (17x28x6)
SKU: 09282-17009 Weight: 0.060000 Brand: Price: $ 10.20 |
Oil Seal (17x28x6) | 2 | $ 10.20 | ||
| 29 | 11431-95300 Under Oil Seal Housing (NLA)
SKU: 11431-95300 Weight: 0.130000 Brand: Price: $ 25.39 |
Under Oil Seal Housing (NLA) | 1 | $ 25.39 | ||
| 30 | 09280-50008 O-Ring
SKU: 09280-50008 Weight: 0.060000 Brand: Price: $ 2.62 |
O-Ring | 1 | $ 2.62 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
