Suzuki DT 55 Parts Listings 1988 to 1997

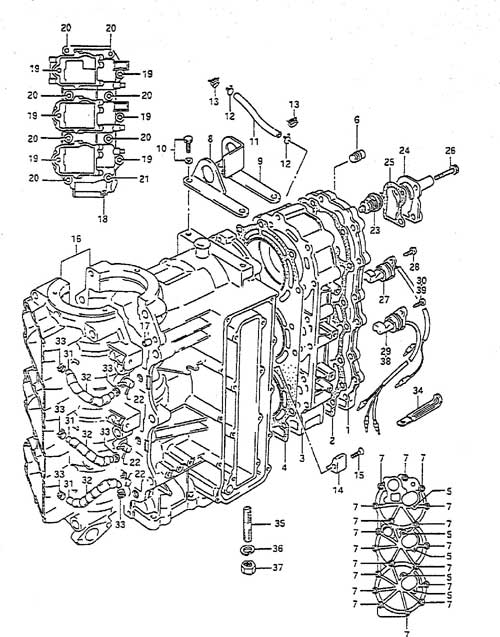

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11161-94700-0ED Cylinder Head Cover (NLA)
SKU: 11161-94700-0ED Weight: 2.000000 Brand: Price: $ 102.01 |
Cylinder Head Cover (NLA) | 1 | $ 102.01 | ||
| 2 | 11162-94730 Cylinder Head Cover Gasket
SKU: 11162-94730 Weight: 0.150000 Brand: Price: $ 21.92 |
Cylinder Head Cover Gasket | 1 | $ 21.92 | ||
| 3 | 11111-94702-0ED Cylinder Head (NLA)
SKU: 11111-94702-0ED Weight: 10.000000 Brand: Price: $ 274.48 |
Cylinder Head (NLA) | 1 | $ 274.48 | ||
| 4 | 11141-94720 Cylinder Head Gasket
SKU: 11141-94720 Weight: 0.250000 Brand: Price: $ 53.40 |
Cylinder Head Gasket | 1 | $ 53.40 | ||
| 5 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 5 | $ 2.74 | ||
| 6 | 09246-04005 Plug
SKU: 09246-04005 Weight: 0.060000 Brand: Price: $ 4.11 |
Plug | 1 | $ 4.11 | ||
| 7 | 01560-08757 BOLT
SKU: 01560-08757 Weight: 0.080000 Brand: Price: $ 3.98 |
BOLT | 18 | $ 3.98 | ||
| 8 | 11291-94701-02M Engine Hook (NLA)
SKU: 11291-94701-02M Weight: 0.100000 Brand: Price: $ 7.91 |
Engine Hook (NLA) | 1 | $ 7.91 | 1988 | |
| 9 | 11290-94710-0ED Engine Hook (NLA)
SKU: 11290-94710-0ED Weight: 0.100000 Brand: Price: $ 16.81 |
Engine Hook (NLA) | 1 | $ 16.81 | 1989 to 1997 | |
| 10 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->110 | |
| 12 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 2 | $ 1.86 | 1988 to 1990 | |
| 13 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 2 | $ 1.86 | 1991 to 1997 | |
| 14 | 11281-94400 Zinc Anode
SKU: 11281-94400 Weight: 0.100000 Brand: Price: $ 3.13 |
Zinc Anode | 1 | $ 3.13 | ||
| 15 | 09126-06005 Screw (6x30)
SKU: 09126-06005 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x30) | 1 | $ 2.12 | ||
| 16-1 | 11300-94734-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11300-94734-0ED Weight: 50.000000 Brand: Price: $ 1,335.14 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,335.14 | 1991 to 1994 | |
| 16-2 | 11300-94751-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11300-94751-0ED Weight: 0.100000 Brand: Price: $ 971.04 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 971.04 | 1995 to 1997 | |
| 17 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 18 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 19 | 01550-10407 BOLT
SKU: 01550-10407 Weight: 0.100000 Brand: Price: $ 4.05 |
BOLT | 6 | $ 4.05 | ||
| 20 | 01550-10657 BOLT
SKU: 01550-10657 Weight: 0.100000 Brand: Price: $ 4.64 |
BOLT | 7 | $ 4.64 | ||
| 21 | 01550-10857 BOLT
SKU: 01550-10857 Weight: 0.120000 Brand: Price: $ 4.56 |
BOLT | 1 | $ 4.56 | ||
| 22 | 16710-94420 Oil Check Valve (NLA)
SKU: 16710-94420 Weight: 0.100000 Brand: Price: $ 15.27 |
Oil Check Valve (NLA) | 3 | $ 15.27 | 1986 to 1994 | |
| 23 | 17670-93964 Thermostat (50c)
SKU: 17670-93964 Weight: 0.187500 Brand: Price: $ 57.90 |
Thermostat (50c) | 1 | $ 57.90 | ||
| 24 | 17681-94401-0ED Thermostat Cover
SKU: 17681-94401-0ED Weight: 0.120000 Brand: Price: $ 37.06 |
Thermostat Cover | 1 | $ 37.06 | ||
| 25 | 17685-94410 Thermostat Gasket
SKU: 17685-94410 Weight: 0.060000 Brand: Price: $ 4.12 |
Thermostat Gasket | 1 | $ 4.12 | ||
| 26 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 27 | 34870-94630 Cooling Water Sensor
SKU: 34870-94630 Weight: 0.100000 Brand: Price: $ 84.62 |
Cooling Water Sensor | 1 | $ 84.62 | 1988 to 1989 | |
| 28 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 2 | $ 2.62 | 1988 to 1989 | |
| 29 | 34870-94630 Cooling Water Sensor
SKU: 34870-94630 Weight: 0.100000 Brand: Price: $ 84.62 |
Cooling Water Sensor | 1 | $ 84.62 | 1990 to 1991 | |
| 30 | 03111-0516A SCREW
SKU: 03111-0516A Weight: 0.200000 Brand: Price: $ 1.48 |
SCREW | 2 | $ 1.48 | 1990 to 1991 | |
| 31 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 3 | $ 6.08 | L:600->120 | |
| 32 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 3 | $ 8.45 | L:540->90 | |
| 33 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 6 | $ 2.12 | ||
| 34-1 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 34-2 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 35 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 1 | $ 5.23 | ||
| 36 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
| 37 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 38 | 34820-95D20 Cylinder Temp Sensor
SKU: 34820-95D20 Weight: 0.250000 Brand: Price: $ 68.04 |
Cylinder Temp Sensor | 1 | $ 68.04 | 1992 to 1997 | |
| 39 | 03241-0516A SCREW
SKU: 03241-0516A Weight: 0.060000 Brand: Price: $ 1.21 |
SCREW | 2 | $ 1.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
