Suzuki DT 140 Parts Listings 1997 to 2001

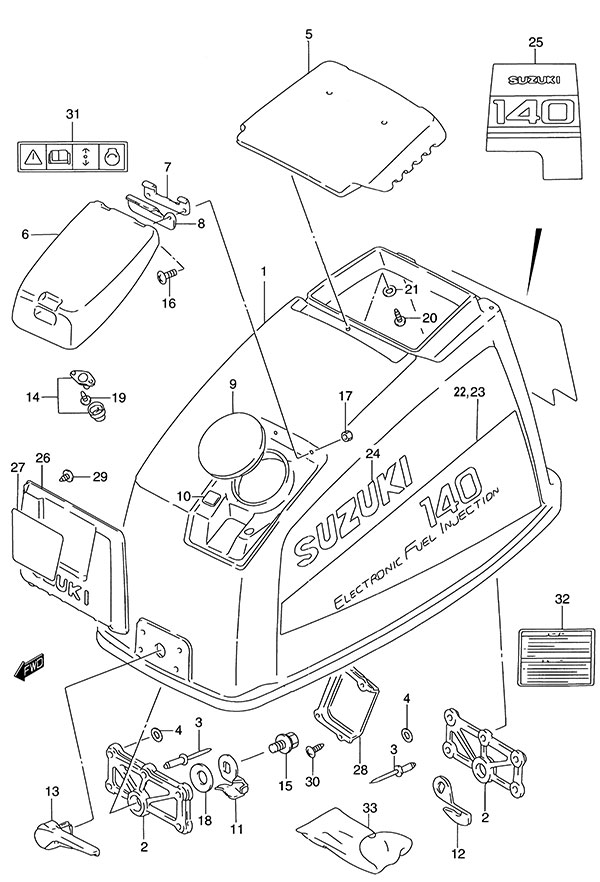

Fig. 52A - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-94882-0ED Engine Cover Set (NLA)
SKU: 61420-94882-0ED Weight: 50.000000 Brand: Price: $ 1,301.15 |
Engine Cover Set (NLA) | 1 | $ 1,301.15 | ||
| 2 | 61651-94602 Front Hood Holder (NLA)
SKU: 61651-94602 Weight: 0.100000 Brand: Price: $ 11.67 |
Front Hood Holder (NLA) | 2 | $ 11.67 | ||
| 3 | 09229-04032 Rivet (NLA)
SKU: 09229-04032 Weight: 0.100000 Brand: Price: $ 2.03 |
Rivet (NLA) | 10 | $ 2.03 | ||
| 4 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 10 | $ 1.85 | ||
| 5 | 61431-94503-0ED Tilt Up Handle (NLA)
SKU: 61431-94503-0ED Weight: 2.000000 Brand: Price: $ 99.52 |
Tilt Up Handle (NLA) | 1 | $ 99.52 | ||
| 6 | 61481-94504-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94504-0ED Weight: 0.400000 Brand: Price: $ 51.76 |
Oil Tank Filler Lid (NLA) | 1 | $ 51.76 | ||
| 7 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 8 | 61485-94500 Oil Filler Lid Spring
SKU: 61485-94500 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 9 | 61486-94600 Engine Cover Cap (NLA)
SKU: 61486-94600 Weight: 0.140000 Brand: Price: $ 11.80 |
Engine Cover Cap (NLA) | 1 | $ 11.80 | ||
| 10 | 61544-94500 Oil Filler Pad
SKU: 61544-94500 Weight: 0.060000 Brand: Price: $ 1.76 |
Oil Filler Pad | 1 | $ 1.76 | ||
| 11 | 61641-94600 Front Hook (NLA)
SKU: 61641-94600 Weight: 0.100000 Brand: Price: $ 8.47 |
Front Hook (NLA) | 1 | $ 8.47 | ||
| 12 | 61631-94610 Rear Hook (NLA)
SKU: 61631-94610 Weight: 0.060000 Brand: Price: $ 9.93 |
Rear Hook (NLA) | 1 | $ 9.93 | ||
| 13 | 61645-94600-0ED Front Hook Lever (NLA)
SKU: 61645-94600-0ED Weight: 0.100000 Brand: Price: $ 25.32 |
Front Hook Lever (NLA) | 2 | $ 25.32 | ||
| 14 | 61670-94600 Oil Lid Striker Assy (NLA)
SKU: 61670-94600 Weight: 0.060000 Brand: Price: $ 3.87 |
Oil Lid Striker Assy (NLA) | 1 | $ 3.87 | ||
| 15 | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 2 | $ 4.31 | ||
| 16 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 17 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 18 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 2 | $ 3.38 | ||
| 19 | 03241-0410A SCREW
SKU: 03241-0410A Weight: 0.060000 Brand: Price: $ 1.32 |
SCREW | 2 | $ 1.32 | ||
| 20 | 03541-0616A SCREW
SKU: 03541-0616A Weight: 0.100000 Brand: Price: $ 1.82 |
SCREW | 4 | $ 1.82 | ||
| 21 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 4 | $ 1.85 | ||
| 22 | 61443-94910 Starboard Engine Cover Stripe
SKU: 61443-94910 Weight: 0.060000 Brand: Price: $ 64.07 |
Starboard Engine Cover Stripe | 1 | $ 64.07 | ||
| 23 | 61453-94910 Port Engine Cover Decal (NLA)
SKU: 61453-94910 Weight: 0.060000 Brand: Price: $ 62.09 |
Port Engine Cover Decal (NLA) | 1 | $ 62.09 | ||
| 24 | 68111-42031-1RR Suzuki Mark
SKU: 68111-42031-1RR Weight: 0.100000 Brand: Price: $ 23.47 |
Suzuki Mark | 2 | $ 23.47 | ||
| 25 | 61463-94910 Engine Cover Rear Decal
SKU: 61463-94910 Weight: 0.125000 Brand: Price: $ 34.47 |
Engine Cover Rear Decal | 1 | $ 34.47 | ||
| 26 | 61421-94601-2TN Engine Cover Emblem
SKU: 61421-94601-2TN Weight: 0.380000 Brand: Price: $ 59.22 |
Engine Cover Emblem | 1 | $ 59.22 | ||
| 27 | 61422-94640-019 Front Emblem Mark (NLA)
SKU: 61422-94640-019 Weight: 0.060000 Brand: Price: $ 10.37 |
Front Emblem Mark (NLA) | 1 | $ 10.37 | ||
| 28 | 61487-94602 Front Emblem Inner Cover (NLA)
SKU: 61487-94602 Weight: 0.100000 Brand: Price: $ 6.72 |
Front Emblem Inner Cover (NLA) | 1 | $ 6.72 | ||
| 29 | 03241-0512A SCREW
SKU: 03241-0512A Weight: 0.060000 Brand: Price: $ 1.34 |
SCREW | 4 | $ 1.34 | ||
| 30 | 03241-0512A SCREW
SKU: 03241-0512A Weight: 0.060000 Brand: Price: $ 1.34 |
SCREW | 4 | $ 1.34 | ||
| 31 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 32 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | ||
| 33 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
