Suzuki DT 140 Parts Listings 1989 to 1994

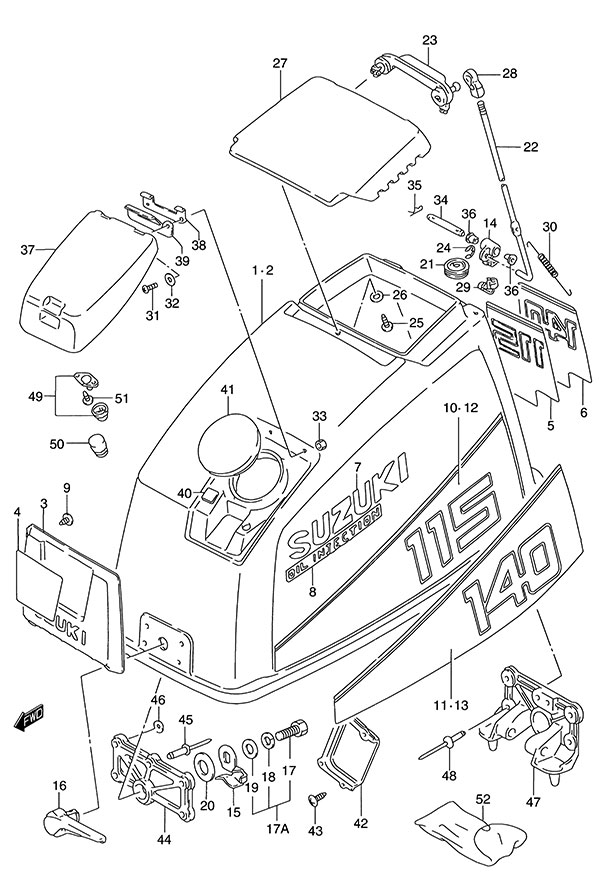

Fig. 50 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-94882-0ED Engine Cover Set (NLA)
SKU: 61420-94882-0ED Weight: 50.000000 Brand: Price: $ 1,301.15 |
Engine Cover Set (NLA) | 1 | $ 1,301.15 | ||
| 6 | 61435-94630-70G Rear Emblem Mark (NLA)
SKU: 61435-94630-70G Weight: 0.100000 Brand: Price: $ 12.28 |
Rear Emblem Mark (NLA) | 1 | $ 12.28 | For Gray | |
| 7-1 | 61441-94600-764 Suzuki Emblem (NLA)
SKU: 61441-94600-764 Weight: 0.060000 Brand: Price: $ 11.04 |
Suzuki Emblem (NLA) | 2 | $ 11.04 | For Gray | |
| 7-2 | 68181-17D00-019 Suzuki Emblem
SKU: 68181-17D00-019 Weight: 0.060000 Brand: Price: $ 27.57 |
Suzuki Emblem | 2 | $ 27.57 | For White | |
| 8-1 | 61442-94600-764 Oil Injection Mark
SKU: 61442-94600-764 Weight: 0.060000 Brand: Price: $ 4.06 |
Oil Injection Mark | 2 | $ 4.06 | For Gray | |
| 8-2 | 61442-94600-019 Oil Injection Mark (NLA)
SKU: 61442-94600-019 Weight: 0.062500 Brand: Price: $ 4.27 |
Oil Injection Mark (NLA) | 2 | $ 4.27 | For White | |
| 9 | 03241-0512A SCREW
SKU: 03241-0512A Weight: 0.060000 Brand: Price: $ 1.34 |
SCREW | 4 | $ 1.34 | 1994 | |
| 11 | 61443-94630-70G Starboard Engine Cover Stripe
SKU: 61443-94630-70G Weight: 0.350000 Brand: Price: $ 57.93 |
Starboard Engine Cover Stripe | 1 | $ 57.93 | For Gray | |
| 13 | 61453-94630-70G Port Engine Cover Decal (NLA)
SKU: 61453-94630-70G Weight: 0.100000 Brand: Price: $ 36.97 |
Port Engine Cover Decal (NLA) | 1 | $ 36.97 | For Gray | |
| 14 | 61641-94501 Engine Cover Hook (NLA)
SKU: 61641-94501 Weight: 0.100000 Brand: Price: $ 24.91 |
Engine Cover Hook (NLA) | 1 | $ 24.91 | ||
| 15 | 61641-94600 Front Hook (NLA)
SKU: 61641-94600 Weight: 0.100000 Brand: Price: $ 8.47 |
Front Hook (NLA) | 1 | $ 8.47 | ||
| 16 | 61645-94600-0ED Front Hook Lever (NLA)
SKU: 61645-94600-0ED Weight: 0.100000 Brand: Price: $ 25.32 |
Front Hook Lever (NLA) | 1 | $ 25.32 | ||
| 17 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | 1989 to 1993 | |
| 17A | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 1 | $ 4.31 | 1994 | |
| 18 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | 1989 to 1993 | |
| 19 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 1 | $ 1.97 | 1989 to 1993 | |
| 20 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 21 | 61652-94501 Grommet (NLA)
SKU: 61652-94501 Weight: 0.100000 Brand: Price: $ 2.51 |
Grommet (NLA) | 1 | $ 2.51 | ||
| 22 | 61653-94502 Latch Release Rod (NLA)
SKU: 61653-94502 Weight: 0.100000 Brand: Price: $ 11.59 |
Latch Release Rod (NLA) | 1 | $ 11.59 | ||
| 23 | 61661-94501 Lower Cover Latch Lever (NLA)
SKU: 61661-94501 Weight: 0.060000 Brand: Price: $ 23.52 |
Lower Cover Latch Lever (NLA) | 1 | $ 23.52 | ||
| 24 | 09383-03001 E Ring
SKU: 09383-03001 Weight: 0.060000 Brand: Price: $ 0.81 |
E Ring | 1 | $ 0.81 | ||
| 25 | 03541-0616A SCREW
SKU: 03541-0616A Weight: 0.100000 Brand: Price: $ 1.82 |
SCREW | 4 | $ 1.82 | ||
| 26 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 27 | 61431-94503-0ED Tilt Up Handle (NLA)
SKU: 61431-94503-0ED Weight: 2.000000 Brand: Price: $ 99.52 |
Tilt Up Handle (NLA) | 1 | $ 99.52 | ||
| 28 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 29 | 09209-05017 Connector
SKU: 09209-05017 Weight: 0.060000 Brand: Price: $ 1.51 |
Connector | 1 | $ 1.51 | ||
| 30 | 09443-06040 Spring (NLA)
SKU: 09443-06040 Weight: 0.100000 Brand: Price: $ 2.07 |
Spring (NLA) | 1 | $ 2.07 | ||
| 31 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 32 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 33 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 34 | 61642-95500 Pin (NLA)
SKU: 61642-95500 Weight: 0.100000 Brand: Price: $ 5.21 |
Pin (NLA) | 1 | $ 5.21 | ||
| 35 | 09385-06003 Pin (NLA)
SKU: 09385-06003 Weight: 0.060000 Brand: Price: $ 1.21 |
Pin (NLA) | 2 | $ 1.21 | ||
| 36 | 09301-06005 Bushing (NLA)
SKU: 09301-06005 Weight: 0.060000 Brand: Price: $ 0.98 |
Bushing (NLA) | 2 | $ 0.98 | ||
| 37 | 61481-94504-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94504-0ED Weight: 0.400000 Brand: Price: $ 51.76 |
Oil Tank Filler Lid (NLA) | 1 | $ 51.76 | ||
| 38 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 39 | 61485-94500 Oil Filler Lid Spring
SKU: 61485-94500 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 40 | 61544-94500 Oil Filler Pad
SKU: 61544-94500 Weight: 0.060000 Brand: Price: $ 1.76 |
Oil Filler Pad | 1 | $ 1.76 | ||
| 41 | 61486-94600 Engine Cover Cap (NLA)
SKU: 61486-94600 Weight: 0.140000 Brand: Price: $ 11.80 |
Engine Cover Cap (NLA) | 1 | $ 11.80 | ||
| 42 | 61487-94602 Front Emblem Inner Cover (NLA)
SKU: 61487-94602 Weight: 0.100000 Brand: Price: $ 6.72 |
Front Emblem Inner Cover (NLA) | 1 | $ 6.72 | ||
| 43 | 03241-0512A SCREW
SKU: 03241-0512A Weight: 0.060000 Brand: Price: $ 1.34 |
SCREW | 4 | $ 1.34 | ||
| 44 | 61651-94602 Front Hood Holder (NLA)
SKU: 61651-94602 Weight: 0.100000 Brand: Price: $ 11.67 |
Front Hood Holder (NLA) | 1 | $ 11.67 | ||
| 45 | 09229-04027 Rivet (NLA)
SKU: 09229-04027 Weight: 0.100000 Brand: Price: $ 1.19 |
Rivet (NLA) | 5 | $ 1.19 | ||
| 46 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 5 | $ 1.85 | ||
| 47 | 61644-94502 Cover Locating Bracket (NLA)
SKU: 61644-94502 Weight: 0.100000 Brand: Price: $ 36.64 |
Cover Locating Bracket (NLA) | 1 | $ 36.64 | ||
| 48 | 09229-04014 Rivet (NLA)
SKU: 09229-04014 Weight: 0.100000 Brand: Price: $ 1.14 |
Rivet (NLA) | 5 | $ 1.14 | ||
| 49 | 61670-94600 Oil Lid Striker Assy (NLA)
SKU: 61670-94600 Weight: 0.060000 Brand: Price: $ 3.87 |
Oil Lid Striker Assy (NLA) | 1 | $ 3.87 | ||
| 50 | 09250-12012 Cap (NLA)
SKU: 09250-12012 Weight: 0.060000 Brand: Price: $ 5.52 |
Cap (NLA) | 1 | $ 5.52 | ||
| 51 | 03241-0410A SCREW
SKU: 03241-0410A Weight: 0.060000 Brand: Price: $ 1.32 |
SCREW | 2 | $ 1.32 | ||
| 52 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
