Suzuki DT 140 Parts Listings 1986 to 1987

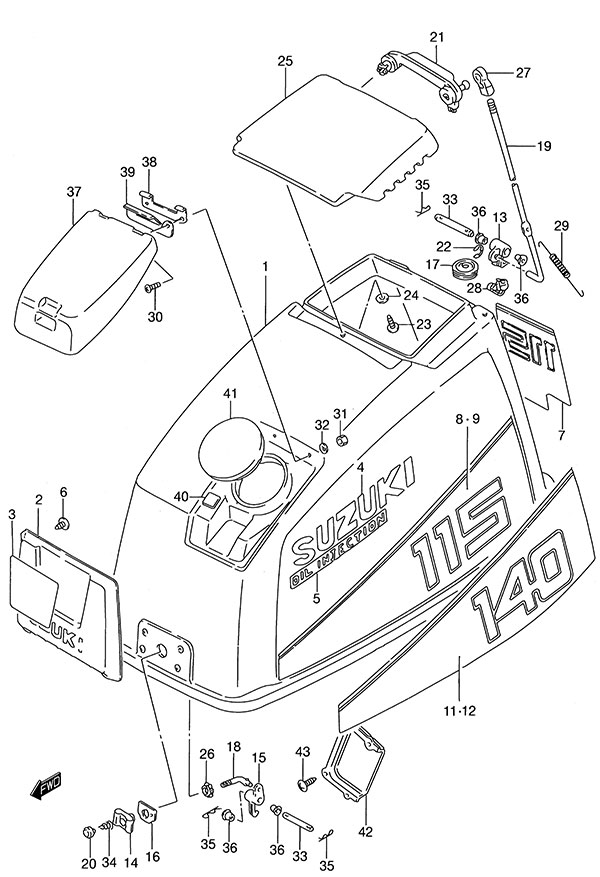

Fig. 48 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61403-94810-02M Engine Cover Set (NLA)
SKU: 61403-94810-02M Weight: 0.100000 Brand: Price: $ 369.43 |
Engine Cover Set (NLA) | 1 | $ 369.43 | ||
| 2 | 61421-94601-2CS Front Emblem (NLA)
SKU: 61421-94601-2CS Weight: 0.100000 Brand: Price: $ 40.49 |
Front Emblem (NLA) | 1 | $ 40.49 | For Silver | |
| 3 | 61422-94600-26N Front Emblem Mark (NLA)
SKU: 61422-94600-26N Weight: 0.100000 Brand: Price: $ 8.05 |
Front Emblem Mark (NLA) | 1 | $ 8.05 | For Silver | |
| 4 | 68181-17D00-019 Suzuki Emblem
SKU: 68181-17D00-019 Weight: 0.060000 Brand: Price: $ 27.57 |
Suzuki Emblem | 2 | $ 27.57 | ||
| 5 | 61442-94600-019 Oil Injection Mark (NLA)
SKU: 61442-94600-019 Weight: 0.062500 Brand: Price: $ 4.27 |
Oil Injection Mark (NLA) | 2 | $ 4.27 | ||
| 6-1 | 03241-0516A SCREW
SKU: 03241-0516A Weight: 0.060000 Brand: Price: $ 1.21 |
SCREW | 3 | $ 1.21 | ||
| 6-2 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 1 | $ 1.27 | ||
| 7-1 | 61435-94600-70G Rear Emblem Mark (NLA)
SKU: 61435-94600-70G Weight: 0.060000 Brand: Price: $ 11.34 |
Rear Emblem Mark (NLA) | 1 | $ 11.34 | For Silver | |
| 7-2 | 61435-94600-8EH Rear Emblem Mark (NLA)
SKU: 61435-94600-8EH Weight: 0.100000 Brand: Price: $ 11.34 |
Rear Emblem Mark (NLA) | 1 | $ 11.34 | For White | |
| 8-1 | 61443-94620-70G Starboard Engine Cover Decal (NLA)
SKU: 61443-94620-70G Weight: 0.250000 Brand: Price: $ 54.88 |
Starboard Engine Cover Decal (NLA) | 1 | $ 54.88 | For Silver | |
| 8-2 | 61443-94620-8EH Starboard Engine Cover Decal (NLA)
SKU: 61443-94620-8EH Weight: 0.100000 Brand: Price: $ 40.85 |
Starboard Engine Cover Decal (NLA) | 1 | $ 40.85 | For White | |
| 11 | 61443-94630-70G Starboard Engine Cover Stripe
SKU: 61443-94630-70G Weight: 0.350000 Brand: Price: $ 57.93 |
Starboard Engine Cover Stripe | 1 | $ 57.93 | For Silver | |
| 12 | 61453-94630-70G Port Engine Cover Decal (NLA)
SKU: 61453-94630-70G Weight: 0.100000 Brand: Price: $ 36.97 |
Port Engine Cover Decal (NLA) | 1 | $ 36.97 | For Silver | |
| 13 | 61641-94501 Engine Cover Hook (NLA)
SKU: 61641-94501 Weight: 0.100000 Brand: Price: $ 24.91 |
Engine Cover Hook (NLA) | 1 | $ 24.91 | ||
| 14 | 61651-95501 Hook Spring Holder (NLA)
SKU: 61651-95501 Weight: 0.100000 Brand: Price: $ 2.73 |
Hook Spring Holder (NLA) | 1 | $ 2.73 | ||
| 15 | 61641-95500 Release Hook (NLA)
SKU: 61641-95500 Weight: 0.100000 Brand: Price: $ 19.35 |
Release Hook (NLA) | 1 | $ 19.35 | ||
| 16 | 61652-95500 Hook Spring Holder Packing (NLA)
SKU: 61652-95500 Weight: 0.100000 Brand: Price: $ 5.50 |
Hook Spring Holder Packing (NLA) | 1 | $ 5.50 | ||
| 17 | 61652-94501 Grommet (NLA)
SKU: 61652-94501 Weight: 0.100000 Brand: Price: $ 2.51 |
Grommet (NLA) | 1 | $ 2.51 | ||
| 18 | 61653-95501 Release Hook Shaft (NLA)
SKU: 61653-95501 Weight: 0.100000 Brand: Price: $ 8.30 |
Release Hook Shaft (NLA) | 1 | $ 8.30 | ||
| 19 | 61653-94502 Latch Release Rod (NLA)
SKU: 61653-94502 Weight: 0.100000 Brand: Price: $ 11.59 |
Latch Release Rod (NLA) | 1 | $ 11.59 | ||
| 20 | 61660-95500 Hook Knob (NLA)
SKU: 61660-95500 Weight: 0.100000 Brand: Price: $ 3.11 |
Hook Knob (NLA) | 1 | $ 3.11 | ||
| 21 | 61661-94501 Lower Cover Latch Lever (NLA)
SKU: 61661-94501 Weight: 0.060000 Brand: Price: $ 23.52 |
Lower Cover Latch Lever (NLA) | 1 | $ 23.52 | ||
| 22 | 09383-03001 E Ring
SKU: 09383-03001 Weight: 0.060000 Brand: Price: $ 0.81 |
E Ring | 1 | $ 0.81 | ||
| 23 | 03241-0616C SCREW
SKU: 03241-0616C Weight: 0.200000 Brand: Price: $ 2.72 |
SCREW | 4 | $ 2.72 | ||
| 24 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 25 | 61431-94503-0ED Tilt Up Handle (NLA)
SKU: 61431-94503-0ED Weight: 2.000000 Brand: Price: $ 99.52 |
Tilt Up Handle (NLA) | 1 | $ 99.52 | ||
| 26 | 61654-95500 Nut (NLA)
SKU: 61654-95500 Weight: 0.100000 Brand: Price: $ 1.94 |
Nut (NLA) | 1 | $ 1.94 | ||
| 27 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 28 | 09209-05017 Connector
SKU: 09209-05017 Weight: 0.060000 Brand: Price: $ 1.51 |
Connector | 1 | $ 1.51 | ||
| 29 | 09443-06040 Spring (NLA)
SKU: 09443-06040 Weight: 0.100000 Brand: Price: $ 2.07 |
Spring (NLA) | 1 | $ 2.07 | ||
| 30 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 31 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 32 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 33 | 61642-95500 Pin (NLA)
SKU: 61642-95500 Weight: 0.100000 Brand: Price: $ 5.21 |
Pin (NLA) | 2 | $ 5.21 | ||
| 34 | 09441-12001 Spring (SUS)
SKU: 09441-12001 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring (SUS) | 1 | $ 3.07 | ||
| 35 | 09385-06003 Pin (NLA)
SKU: 09385-06003 Weight: 0.060000 Brand: Price: $ 1.21 |
Pin (NLA) | 4 | $ 1.21 | ||
| 36 | 09301-06005 Bushing (NLA)
SKU: 09301-06005 Weight: 0.060000 Brand: Price: $ 0.98 |
Bushing (NLA) | 4 | $ 0.98 | ||
| 37 | 61481-94504-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94504-0ED Weight: 0.400000 Brand: Price: $ 51.76 |
Oil Tank Filler Lid (NLA) | 1 | $ 51.76 | ||
| 38 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 39 | 61485-94500 Oil Filler Lid Spring
SKU: 61485-94500 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 40 | 61544-94500 Oil Filler Pad
SKU: 61544-94500 Weight: 0.060000 Brand: Price: $ 1.76 |
Oil Filler Pad | 1 | $ 1.76 | ||
| 41 | 61486-94600 Engine Cover Cap (NLA)
SKU: 61486-94600 Weight: 0.140000 Brand: Price: $ 11.80 |
Engine Cover Cap (NLA) | 1 | $ 11.80 | ||
| 42 | 61487-94602 Front Emblem Inner Cover (NLA)
SKU: 61487-94602 Weight: 0.100000 Brand: Price: $ 6.72 |
Front Emblem Inner Cover (NLA) | 1 | $ 6.72 | ||
| 43 | 03241-0516A SCREW
SKU: 03241-0516A Weight: 0.060000 Brand: Price: $ 1.21 |
SCREW | 4 | $ 1.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
