Suzuki DT 140 Parts Listings 1986 to 2001

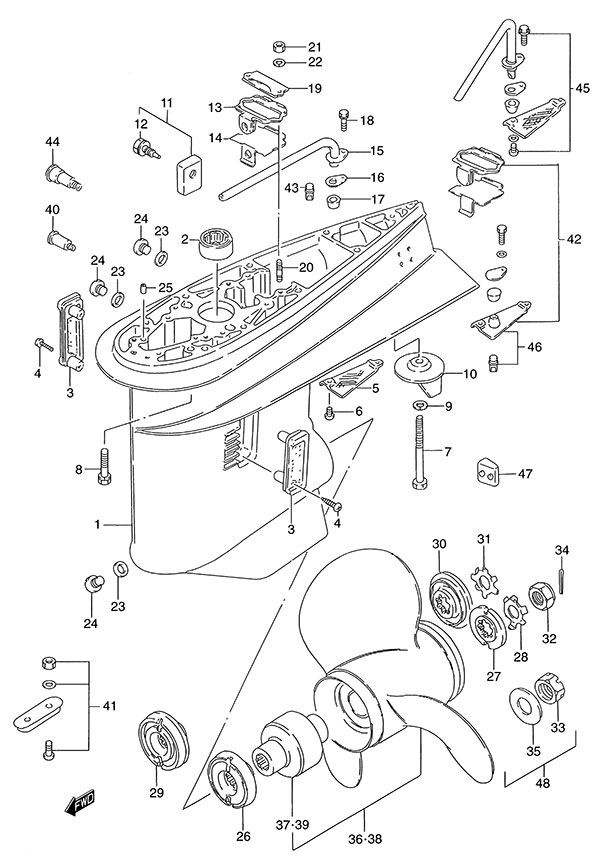

Fig. 45 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 55100-94530-0ED Gear Case Housing
SKU: 55100-94530-0ED Weight: 24.000000 Brand: Price: $ 1,230.00 |
Gear Case Housing | 1 | $ 1,230.00 | S/N 709964 Older Requires Ref# 50 to 54 | |
| 1-2 | 55100-94530-0ED Gear Case Housing
SKU: 55100-94530-0ED Weight: 24.000000 Brand: Price: $ 1,230.00 |
Gear Case Housing | 1 | $ 1,230.00 | S/N 709965 Newer | |
| 2 | 09263-28016 Bearing (28.6x38x31.8)
SKU: 09263-28016 Weight: 0.220000 Brand: Price: $ 89.23 |
Bearing (28.6x38x31.8) | 1 | $ 89.23 | ||
| 3 | 17631-94600 Water Filter
SKU: 17631-94600 Weight: 0.060000 Brand: Price: $ 13.29 |
Water Filter | 2 | $ 13.29 | ||
| 4 | 03112-04309 SCREW 4X30
SKU: 03112-04309 Weight: 0.060000 Brand: Price: $ 1.73 |
SCREW 4X30 | 2 | $ 1.73 | ||
| 5 | 17635-94500 Sub Water Filter
SKU: 17635-94500 Weight: 0.060000 Brand: Price: $ 5.64 |
Sub Water Filter | 1 | $ 5.64 | ||
| 6 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 7 | 09116-10142 Bolt (10x100) w/Washer
SKU: 09116-10142 Weight: 0.140000 Brand: Price: $ 8.14 |
Bolt (10x100) w/Washer | 1 | $ 8.14 | ||
| 8 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 9 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 1 | $ 1.86 | ||
| 10 | 55125-94502 Zinc Anode
SKU: 55125-94502 Weight: 0.580000 Brand: Price: $ 23.71 |
Zinc Anode | 1 | $ 23.71 | ||
| 11 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 12 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 13 | 55332-94510 Exhaust Seal Rubber (NLA)
SKU: 55332-94510 Weight: 0.060000 Brand: Price: $ 11.92 |
Exhaust Seal Rubber (NLA) | 1 | $ 11.92 | ||
| 14 | 55333-94510 Exhaust Seal Plate
SKU: 55333-94510 Weight: 0.080000 Brand: Price: $ 6.21 |
Exhaust Seal Plate | 1 | $ 6.21 | ||
| 15 | 17520-94500 Sub Water Tube (NLA)
SKU: 17520-94500 Weight: 0.250000 Brand: Price: $ 31.85 |
Sub Water Tube (NLA) | 1 | $ 31.85 | ||
| 16 | 17523-94510 Sub Water Tube Gasket
SKU: 17523-94510 Weight: 0.060000 Brand: Price: $ 3.08 |
Sub Water Tube Gasket | 1 | $ 3.08 | ||
| 17 | 17564-94500 Sub Water Tube Bushing
SKU: 17564-94500 Weight: 0.060000 Brand: Price: $ 3.04 |
Sub Water Tube Bushing | 1 | $ 3.04 | ||
| 18 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 1 | $ 3.07 | ||
| 19 | 55334-94500 Exhaust Seal Cover
SKU: 55334-94500 Weight: 0.060000 Brand: Price: $ 30.19 |
Exhaust Seal Cover | 1 | $ 30.19 | ||
| 20 | 09108-06062 Stud Bolt (6x12)
SKU: 09108-06062 Weight: 0.060000 Brand: Price: $ 1.62 |
Stud Bolt (6x12) | 2 | $ 1.62 | ||
| 21 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 22 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 23 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 24 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 25 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 2 | $ 3.33 | ||
| 26-1 | 57635-95503 Propeller Bushing Stopper
SKU: 57635-95503 Weight: 0.660000 Brand: Price: $ 80.98 |
Propeller Bushing Stopper | 1 | $ 80.98 | Type: U 1986 to 1991 | |
| 26-2 | 57635-95510 Propeller Bushing Stopper
SKU: 57635-95510 Weight: 0.680000 Brand: Price: $ 96.27 |
Propeller Bushing Stopper | 1 | $ 96.27 | Type: U 1992 to 2000 | |
| 27 | 57633-95501 Propeller Nut Spacer
SKU: 57633-95501 Weight: 0.200000 Brand: Price: $ 35.83 |
Propeller Nut Spacer | 1 | $ 35.83 | Type: U | |
| 28 | 57635-95300 Propeller Nut Washer
SKU: 57635-95300 Weight: 0.060000 Brand: Price: $ 3.85 |
Propeller Nut Washer | 1 | $ 3.85 | Type: U 1986 to 1991 | |
| 29-1 | 57635-94502 Propeller Bushing Stopper
SKU: 57635-94502 Weight: 0.580000 Brand: Price: $ 103.93 |
Propeller Bushing Stopper | 1 | $ 103.93 | Type: V 1986 to 1991 | |
| 29-2 | 57635-94511 Propeller Bushing Stopper
SKU: 57635-94511 Weight: 0.600000 Brand: Price: $ 115.08 |
Propeller Bushing Stopper | 1 | $ 115.08 | Type: V 1992 to 2001 | |
| 30 | 57633-94500 Propeller Nut Spacer
SKU: 57633-94500 Weight: 0.320000 Brand: Price: $ 28.04 |
Propeller Nut Spacer | 1 | $ 28.04 | Type: V | |
| 31 | 57634-94500 Propeller Nut Washer (NLA)
SKU: 57634-94500 Weight: 0.060000 Brand: Price: $ 4.09 |
Propeller Nut Washer (NLA) | 1 | $ 4.09 | Type: V 1986 to 1991 | |
| 32 | 09159-18004 Nut
SKU: 09159-18004 Weight: 0.080000 Brand: Price: $ 21.41 |
Nut | 1 | $ 21.41 | 1986 to 1991 | |
| 33 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | 1992 to 2001 | |
| 34 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 35 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | 1992 to 2001 | |
| 36-1 | 58100-95511-019 U1700 Propeller 3x13-1/4x17 (NLA)
SKU: 58100-95511-019 Weight: 0.100000 Brand: Price: $ 159.78 |
U1700 Propeller 3x13-1/4x17 (NLA) | 1 | $ 159.78 | ||
| 36-2 | 58100-95550-019 U1800 Propeller 3x13x18 (NLA)
SKU: 58100-95550-019 Weight: 0.100000 Brand: Price: $ 159.78 |
U1800 Propeller 3x13x18 (NLA) | 1 | $ 159.78 | ||
| 36-3 | 58100-95521-019 U1900 Propeller 3x13x19 (NLA)
SKU: 58100-95521-019 Weight: 0.100000 Brand: Price: $ 159.78 |
U1900 Propeller 3x13x19 (NLA) | 1 | $ 159.78 | ||
| 37 | 58120-95500 Type U Propeller Bushing
SKU: 58120-95500 Weight: 1.000000 Brand: Price: $ 64.81 |
Type U Propeller Bushing | 1 | $ 64.81 | ||
| 38-1 | 99105-00100-14P S/S Propeller 3x13-1/4x14 (NLA)
SKU: 99105-00100-14P Weight: 13.000000 Brand: Price: $ 405.10 |
S/S Propeller 3x13-1/4x14 (NLA) | 1 | $ 405.10 | ||
| 38-2 | 99105-00100-16P S/S Propeller 3x13-1/14x16 (NLA)
SKU: 99105-00100-16P Weight: 24.000000 Brand: Price: $ 421.27 |
S/S Propeller 3x13-1/14x16 (NLA) | 1 | $ 421.27 | ||
| 38-3 | 99105-00100-18P S/S Propeller 3x13-1/4x18 (NLA)
SKU: 99105-00100-18P Weight: 13.000000 Brand: Price: $ 405.10 |
S/S Propeller 3x13-1/4x18 (NLA) | 1 | $ 405.10 | ||
| 38-4 | 99105-00101-20P S/S Propeller 3x13-1/4x20 (NLA)
SKU: 99105-00101-20P Weight: 13.000000 Brand: Price: $ 413.10 |
S/S Propeller 3x13-1/4x20 (NLA) | 1 | $ 413.10 | ||
| 38-5 | 58100-94500-019 V1500 Propeller 3x13-1/2x15
SKU: 58100-94500-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1500 Propeller 3x13-1/2x15 | 1 | $ 242.32 | ||
| 38-6 | 58100-94512-019 V1700 Propeller 3x13-3/4x17
SKU: 58100-94512-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1700 Propeller 3x13-3/4x17 | 1 | $ 242.32 | ||
| 38-7 | 58100-94522-019 V1900 Propeller 3x13x19
SKU: 58100-94522-019 Weight: 10.000000 Brand: Price: $ 266.55 |
V1900 Propeller 3x13x19 | 1 | $ 266.55 | ||
| 38-8 | 58100-94532-019 V2100 Propeller 3x13x21
SKU: 58100-94532-019 Weight: 10.000000 Brand: Price: $ 235.26 |
V2100 Propeller 3x13x21 | 1 | $ 235.26 | ||
| 39 | 58120-94520 Propeller Bushing (NLA)
SKU: 58120-94520 Weight: 1.120000 Brand: Price: $ 59.60 |
Propeller Bushing (NLA) | 1 | $ 59.60 | Type: V | |
| 40 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | ||
| 41 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 42 | 17500-94520 Exhaust Seal Assembly (NLA)
SKU: 17500-94520 Weight: 0.180000 Brand: Price: $ 13.27 |
Exhaust Seal Assembly (NLA) | 1 | $ 13.27 | Optional | |
| 43 | 17636-94500 Sub Water Tube Plug (NLA)
SKU: 17636-94500 Weight: 0.200000 Brand: Price: $ 3.73 |
Sub Water Tube Plug (NLA) | 1 | $ 3.73 | Optional | |
| 44 | 55182-95200 Flush Hose Attachment (NLA)
SKU: 55182-95200 Weight: 0.100000 Brand: Price: $ 11.73 |
Flush Hose Attachment (NLA) | 1 | $ 11.73 | Optional | |
| 45 | 17500-94510 Cooling Tube Set (NLA)
SKU: 17500-94510 Weight: 0.100000 Brand: Price: $ 152.23 |
Cooling Tube Set (NLA) | 1 | $ 152.23 | Optional | |
| 46 | 17600-94500 Sub Water Tube Plug Kit (NLA)
SKU: 17600-94500 Weight: 0.080000 Brand: Price: $ 4.59 |
Sub Water Tube Plug Kit (NLA) | 1 | $ 4.59 | Optional | |
| 47 | 55116-94511 Gear Case Plug (NLA)
SKU: 55116-94511 Weight: 0.100000 Brand: Price: $ 7.85 |
Gear Case Plug (NLA) | 1 | $ 7.85 | Optional | |
| 48-1 | 57630-94500 Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style
SKU: 57630-94500 Weight: 0.500000 Brand: Price: $ 34.42 |
Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style | 1 | $ 34.42 | Opt: Type: V | |
| 48-2 | 57630-95500 Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 U-Style
SKU: 57630-95500 Weight: 0.360000 Brand: Price: $ 26.29 |
Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 U-Style | 1 | $ 26.29 | Opt: Type: U | |
| 49 | 25700-94500 Gear Case Seal Kit DT115 / DT140 (NLA)
SKU: 25700-94500 Weight: 0.220000 Brand: Price: $ 30.87 |
Gear Case Seal Kit DT115 / DT140 (NLA) | 1 | $ 30.87 | Opt: Not Shown | |
| 50 | 25141-94510 Shift Rod Housing Guide
SKU: 25141-94510 Weight: 0.100000 Brand: Price: $ 35.09 |
Shift Rod Housing Guide | 1 | $ 35.09 | Not Shown | |
| 51 | 25142-94520 Shift Guide Gasket
SKU: 25142-94520 Weight: 0.060000 Brand: Price: $ 6.20 |
Shift Guide Gasket | 1 | $ 6.20 | Not Shown | |
| 52 | 52121-94520-0ED Drive Shaft Housing Cover (NLA)
SKU: 52121-94520-0ED Weight: 0.200000 Brand: Price: $ 28.31 |
Drive Shaft Housing Cover (NLA) | 1 | $ 28.31 | Not Shown | |
| 53 | 09103-06118 Bolt (6x60)
SKU: 09103-06118 Weight: 0.060000 Brand: Price: $ 2.41 |
Bolt (6x60) | 1 | $ 2.41 | Not Shown | |
| 54 | 09284-08003 Dust Seal
SKU: 09284-08003 Weight: 0.060000 Brand: Price: $ 3.36 |
Dust Seal | 1 | $ 3.36 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
