Suzuki DT 140 Parts Listings 1986 to 1995

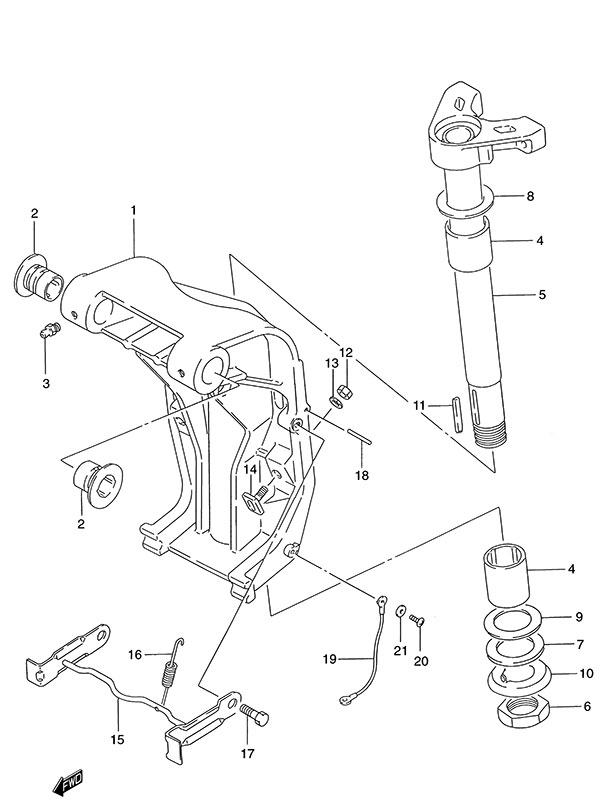

Fig. 35 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-94521-0ED Swivel Bracket (NLA)
SKU: 43111-94521-0ED Weight: 0.100000 Brand: Price: $ 300.09 |
Swivel Bracket (NLA) | 1 | $ 300.09 | ||
| 2 | 43211-95510 Bushing (NLA)
SKU: 43211-95510 Weight: 0.060000 Brand: Price: $ 7.24 |
Bushing (NLA) | 2 | $ 7.24 | ||
| 3 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 4 | 09306-36002 Bushing (NLA)
SKU: 09306-36002 Weight: 0.100000 Brand: Price: $ 3.25 |
Bushing (NLA) | 2 | $ 3.25 | ||
| 5 | 43740-94505-0ED Pilot Shaft (NLA)
SKU: 43740-94505-0ED Weight: 0.100000 Brand: Price: $ 216.19 |
Pilot Shaft (NLA) | 1 | $ 216.19 | ||
| 6 | 09140-33002 Nut (NLA)
SKU: 09140-33002 Weight: 0.100000 Brand: Price: $ 7.76 |
Nut (NLA) | 1 | $ 7.76 | ||
| 7 | 09160-33002 Lower Washer (NLA)
SKU: 09160-33002 Weight: 0.100000 Brand: Price: $ 4.81 |
Lower Washer (NLA) | 1 | $ 4.81 | ||
| 8 | 09160-36004 Upper Washer (NLA)
SKU: 09160-36004 Weight: 0.100000 Brand: Price: $ 3.09 |
Upper Washer (NLA) | 1 | $ 3.09 | ||
| 9 | 09181-36005 Shim (0.3) (NLA)
SKU: 09181-36005 Weight: 0.100000 Brand: Price: $ 1.76 |
Shim (0.3) (NLA) | 1 | $ 1.76 | ||
| 10 | 09166-33002 Washer (NLA)
SKU: 09166-33002 Weight: 0.100000 Brand: Price: $ 3.80 |
Washer (NLA) | 1 | $ 3.80 | ||
| 11 | 09421-05006 Key (NLA)
SKU: 09421-05006 Weight: 0.100000 Brand: Price: $ 3.65 |
Key (NLA) | 1 | $ 3.65 | ||
| 12 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 13 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 14 | 48311-94501 Trim Cylinder Ram Pad
SKU: 48311-94501 Weight: 0.200000 Brand: Price: $ 49.72 |
Trim Cylinder Ram Pad | 2 | $ 49.72 | ||
| 15 | 41220-95501-0ED Tilt Lock Lever (NLA)
SKU: 41220-95501-0ED Weight: 0.500000 Brand: Price: $ 23.82 |
Tilt Lock Lever (NLA) | 1 | $ 23.82 | ||
| 16 | 09443-10029 Tilt Lock Lever Spring (NLA)
SKU: 09443-10029 Weight: 0.100000 Brand: Price: $ 2.44 |
Tilt Lock Lever Spring (NLA) | 1 | $ 2.44 | ||
| 17 | 09111-12008 Bolt (NLA)
SKU: 09111-12008 Weight: 0.200000 Brand: Price: $ 4.50 |
Bolt (NLA) | 2 | $ 4.50 | ||
| 18 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 19 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 20 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | ||
| 21 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 1 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
