Suzuki DT 140 Parts Listings 1986 to 1995

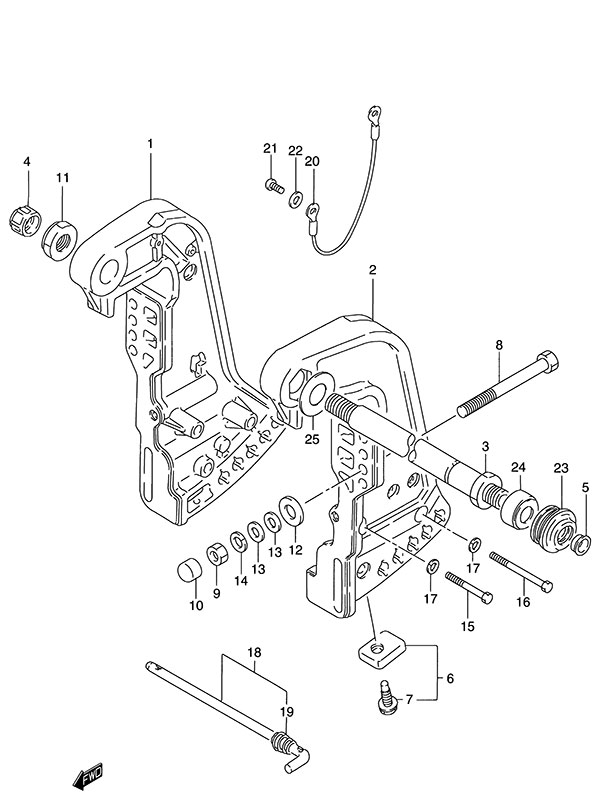

Fig. 33 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-94511-02M Starboard Clamp Bracket (NLA)
SKU: 41111-94511-02M Weight: 0.100000 Brand: Price: $ 60.03 |
Starboard Clamp Bracket (NLA) | 1 | $ 60.03 | S/N 609069 Older | |
| 1-2 | 41111-95602-0ED Starboard Clamp Bracket (NLA)
SKU: 41111-95602-0ED Weight: 6.500000 Brand: Price: $ 202.51 |
Starboard Clamp Bracket (NLA) | 1 | $ 202.51 | S/N 609070 Newer | |
| 1-3 | 41111-94511-01T Starboard Clamp Bracket (NLA)
SKU: 41111-94511-01T Weight: 0.100000 Brand: Price: $ 60.03 |
Starboard Clamp Bracket (NLA) | 1 | $ 60.03 | S/N 609069 Older | |
| 2-1 | 41121-94531-02M Port Clamp Bracket (NLA)
SKU: 41121-94531-02M Weight: 0.100000 Brand: Price: $ 60.03 |
Port Clamp Bracket (NLA) | 1 | $ 60.03 | S/N 609069 Older | |
| 2-2 | 41121-94532-02M Port Clamp Bracket (NLA)
SKU: 41121-94532-02M Weight: 0.100000 Brand: Price: $ 87.47 |
Port Clamp Bracket (NLA) | 1 | $ 87.47 | S/N 609070 to 609260 | |
| 2-3 | 41121-94531-01T Port Clamp Bracket (NLA)
SKU: 41121-94531-01T Weight: 0.100000 Brand: Price: $ 60.03 |
Port Clamp Bracket (NLA) | 1 | $ 60.03 | S/N 609069 Older | |
| 2-4 | 41121-94532-01T Port Clamp Bracket (NLA)
SKU: 41121-94532-01T Weight: 0.100000 Brand: Price: $ 112.60 |
Port Clamp Bracket (NLA) | 1 | $ 112.60 | S/N 609070 to 609260 | |
| 2-5 | 41121-95610-0ED Port Clamp Bracket (NLA)
SKU: 41121-95610-0ED Weight: 10.000000 Brand: Price: $ 181.57 |
Port Clamp Bracket (NLA) | 1 | $ 181.57 | 1987 to 1995 | |
| 3 | 41130-95541 Clamp Bracket Shaft
SKU: 41130-95541 Weight: 2.000000 Brand: Price: $ 408.05 |
Clamp Bracket Shaft | 1 | $ 408.05 | ||
| 4 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 1 | $ 2.85 | ||
| 5 | 41152-94500 Clamp Bracket Shaft Plug
SKU: 41152-94500 Weight: 0.125000 Brand: Price: $ 2.22 |
Clamp Bracket Shaft Plug | 1 | $ 2.22 | ||
| 6 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 7 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 8 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | ||
| 9 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 10 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 11 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 12 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 13 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 6 | $ 1.80 | ||
| 14 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 15 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 16 | 09100-10264 Bolt (10x80)
SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 4 | $ 8.05 | ||
| 17 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 6 | $ 1.86 | ||
| 18 | 45420-95500 Tilt Lock Pin
SKU: 45420-95500 Weight: 0.250000 Brand: Price: $ 35.98 |
Tilt Lock Pin | 1 | $ 35.98 | ||
| 19 | 09441-24002 Spring (NLA)
SKU: 09441-24002 Weight: 0.100000 Brand: Price: $ 1.96 |
Spring (NLA) | 1 | $ 1.96 | ||
| 20 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 21 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 22 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 23 | 41161-95250 Steering Cable Seal (NLA)
SKU: 41161-95250 Weight: 0.100000 Brand: Price: $ 7.47 |
Steering Cable Seal (NLA) | 1 | $ 7.47 | Optional 1986 | |
| 24 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | 1987 to 1995 | |
| 25 | 09160-22046 Washer (NLA)
SKU: 09160-22046 Weight: 0.060000 Brand: Price: $ 4.68 |
Washer (NLA) | 1 | $ 4.68 | S/N 609070 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
