Suzuki DT 140 Parts Listings 2001

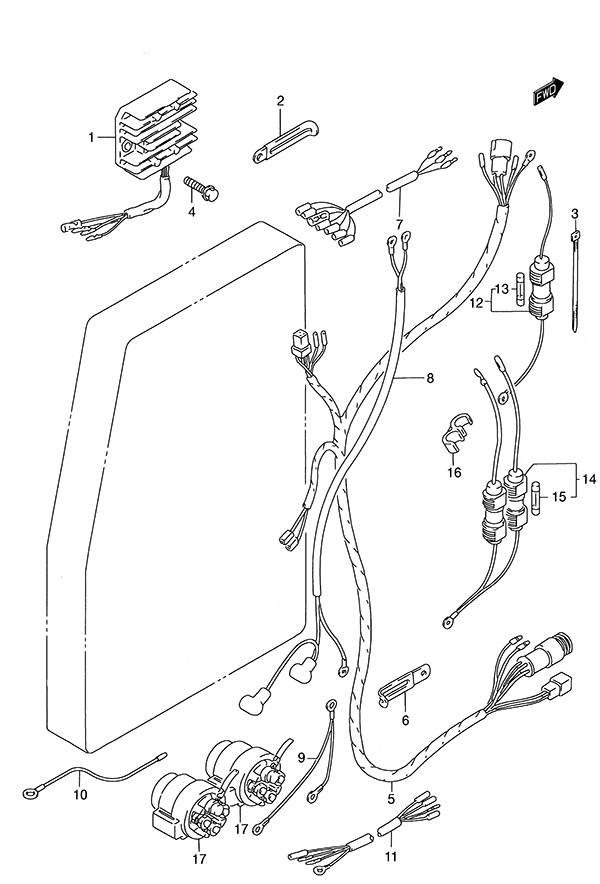

Fig. 29A - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-94620 Rectifier & Regulator
SKU: 32800-94620 Weight: 0.500000 Brand: Price: $ 133.77 |
Rectifier & Regulator | 1 | $ 133.77 | ||
| 2 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 3 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 4 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 5 | 36610-94680 Wiring Harness Assembly (NLA)
SKU: 36610-94680 Weight: 5.000000 Brand: Price: $ 158.32 |
Wiring Harness Assembly (NLA) | 1 | $ 158.32 | ||
| 6-1 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 6-2 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 1 | $ 3.21 | ||
| 7 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | ||
| 8 | 33831-94630 Trim Relay Cable Assembly (NLA)
SKU: 33831-94630 Weight: 0.100000 Brand: Price: $ 19.30 |
Trim Relay Cable Assembly (NLA) | 1 | $ 19.30 | ||
| 9 | 33832-94601 Trim Cable Assembly (NLA)
SKU: 33832-94601 Weight: 0.100000 Brand: Price: $ 12.35 |
Trim Cable Assembly (NLA) | 1 | $ 12.35 | ||
| 10 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 11 | 36810-94610 Rectifier Extension Lead (NLA)
SKU: 36810-94610 Weight: 0.100000 Brand: Price: $ 17.19 |
Rectifier Extension Lead (NLA) | 1 | $ 17.19 | ||
| 12 | 36740-94620 Fuse Case Assembly (NLA)
SKU: 36740-94620 Weight: 0.100000 Brand: Price: $ 11.75 |
Fuse Case Assembly (NLA) | 1 | $ 11.75 | ||
| 13 | 09481-10001 10 Amp Fuse
SKU: 09481-10001 Weight: 0.060000 Brand: Price: $ 1.73 |
10 Amp Fuse | 1 | $ 1.73 | ||
| 14 | 36740-94771 Fuse Case Assembly (NLA)
SKU: 36740-94771 Weight: 0.100000 Brand: Price: $ 25.52 |
Fuse Case Assembly (NLA) | 1 | $ 25.52 | ||
| 15 | 09481-25001 25 Amp Fuse
SKU: 09481-25001 Weight: 0.060000 Brand: Price: $ 2.06 |
25 Amp Fuse | 1 | $ 2.06 | ||
| 16 | 09408-00043 Clamp
SKU: 09408-00043 Weight: 0.250000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | ||
| 17 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 2 | $ 140.10 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
