Suzuki DT 140 Parts Listings 1986 to 1996

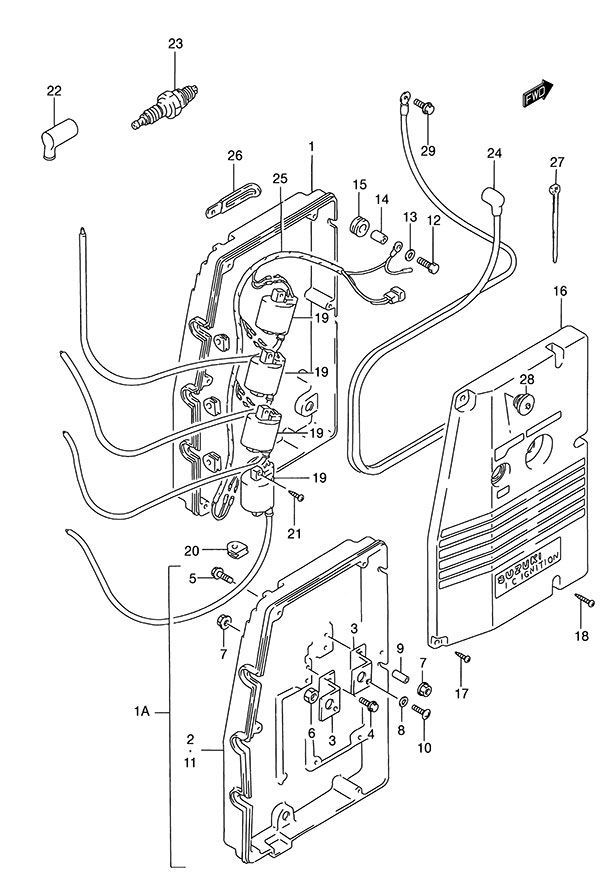

Fig. 27 - Ignition
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32890-94610 Electric Parts Holder (NLA)
SKU: 32890-94610 Weight: 0.100000 Brand: Price: $ 24.46 |
Electric Parts Holder (NLA) | 1 | $ 24.46 | ||
| 1A | 32890-94810 Electric Parts Holder Set (NLA)
SKU: 32890-94810 Weight: 0.100000 Brand: Price: $ 46.22 |
Electric Parts Holder Set (NLA) | 1 | $ 46.22 | 1986 to 1995 | |
| 2 | 32890-94640 Electric Parts Holder (NLA)
SKU: 32890-94640 Weight: 1.060000 Brand: Price: $ 36.37 |
Electric Parts Holder (NLA) | 1 | $ 36.37 | ||
| 3 | 37933-94600 Reset Bracket (NLA)
SKU: 37933-94600 Weight: 0.100000 Brand: Price: $ 5.22 |
Reset Bracket (NLA) | 2 | $ 5.22 | ||
| 4 | 01550-0625A BOLT
SKU: 01550-0625A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 5 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 6 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | ||
| 7 | 08316-1006B Nut
SKU: 08316-1006B Weight: 0.100000 Brand: Price: $ 2.52 |
Nut | 5 | $ 2.52 | ||
| 8 | 09160-06052 Washer
SKU: 09160-06052 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 2 | $ 1.44 | ||
| 10 | 02142-0625A SCREW
SKU: 02142-0625A Weight: 0.100000 Brand: Price: $ 1.43 |
SCREW | 1 | $ 1.43 | ||
| 11 | 32890-94640 Electric Parts Holder (NLA)
SKU: 32890-94640 Weight: 1.060000 Brand: Price: $ 36.37 |
Electric Parts Holder (NLA) | 1 | $ 36.37 | 1996 | |
| 12 | 01500-08307 BOLT
SKU: 01500-08307 Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 4 | $ 3.09 | ||
| 13 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | ||
| 14 | 09180-08193 Spacer (NLA)
SKU: 09180-08193 Weight: 0.100000 Brand: Price: $ 2.68 |
Spacer (NLA) | 4 | $ 2.68 | ||
| 15 | 09320-12028 Cushion (NLA)
SKU: 09320-12028 Weight: 0.100000 Brand: Price: $ 0.88 |
Cushion (NLA) | 4 | $ 0.88 | ||
| 16 | 32895-94630 Parts Holder Cover (NLA)
SKU: 32895-94630 Weight: 1.000000 Brand: Price: $ 28.31 |
Parts Holder Cover (NLA) | 1 | $ 28.31 | ||
| 17 | 03211-0520A SCREW
SKU: 03211-0520A Weight: 0.060000 Brand: Price: $ 2.29 |
SCREW | 5 | $ 2.29 | ||
| 18 | 03212-0530B SCREW
SKU: 03212-0530B Weight: 0.060000 Brand: Price: $ 2.12 |
SCREW | 1 | $ 2.12 | ||
| 19 | 33410-94621 Ignition Coil Assembly (NLA)
SKU: 33410-94621 Weight: 0.400000 Brand: Price: $ 80.66 |
Ignition Coil Assembly (NLA) | 4 | $ 80.66 | ||
| 20 | 09309-06007 Grommet (NLA)
SKU: 09309-06007 Weight: 0.060000 Brand: Price: $ 2.06 |
Grommet (NLA) | 4 | $ 2.06 | ||
| 21 | 03211-0520A SCREW
SKU: 03211-0520A Weight: 0.060000 Brand: Price: $ 2.29 |
SCREW | 8 | $ 2.29 | ||
| 22-1 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 4 | $ 18.63 | 1986 to 1988 | |
| 22-2 | 33510-87D20 Spark Plug Cap
SKU: 33510-87D20 Weight: 0.060000 Brand: Price: $ 35.00 |
Spark Plug Cap | 4 | $ 35.00 | 1989 to 1996 | |
| 23-1 | 09482-00198 NGK B8HS Spark Plug
SKU: 09482-00198 Weight: 0.187500 Brand: Price: $ 3.27 |
NGK B8HS Spark Plug | 4 | $ 3.27 | ||
| 23-2 | 09482-00370 NGK BR8HS Spark Plug
SKU: 09482-00370 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK BR8HS Spark Plug | 4 | $ 3.57 | 1991 to 1996 | |
| 24 | 33810-94601 Starter Motor Cable
SKU: 33810-94601 Weight: 5.000000 Brand: Price: $ 168.55 |
Starter Motor Cable | 1 | $ 168.55 | ||
| 25 | 36830-94600 Ignition Coil Wiring (NLA)
SKU: 36830-94600 Weight: 0.100000 Brand: Price: $ 26.51 |
Ignition Coil Wiring (NLA) | 1 | $ 26.51 | 1986 to 1988 | |
| 26 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 27 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 4 | $ 2.27 | ||
| 28 | 09250-12005 Plug
SKU: 09250-12005 Weight: 0.100000 Brand: Price: $ 1.41 |
Plug | 1 | $ 1.41 | 1991 to 1996 | |
| 29 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
