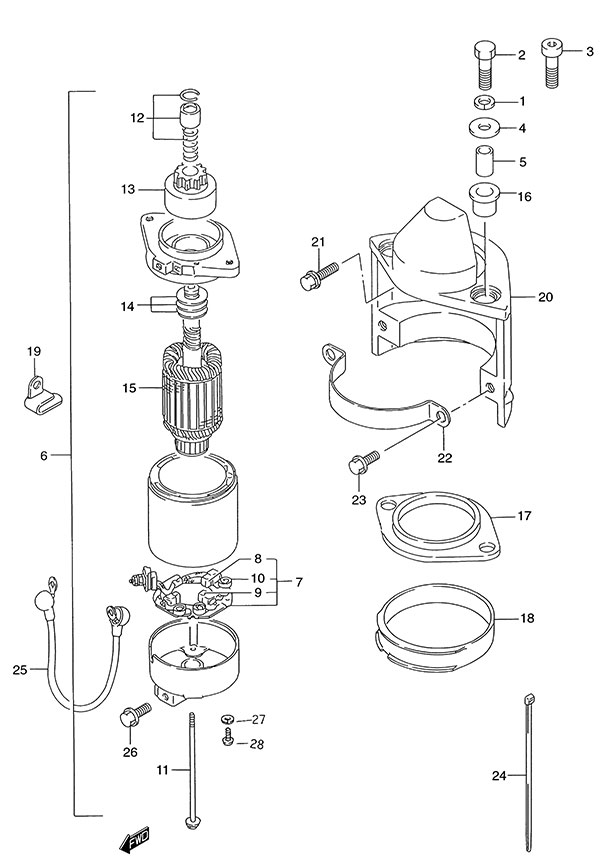

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 08321-01087 Lock Washer ![]() SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | 1986 to 1989 | |
2-1 | 01500-0835B BOLT ![]() SKU: 01500-0835B Weight: 0.200000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | 1986 to 1989 | |
2-2 | 09117-08087 Bolt (8x40) (NLA) ![]() SKU: 09117-08087 Weight: 0.060000 Brand: Price: $ 1.60 |
Bolt (8x40) (NLA) | 2 | $ 1.60 | 1990 to 1992 | |
3 | 07130-08407 BOLT ![]() SKU: 07130-08407 Weight: 0.060000 Brand: Price: $ 3.20 |
BOLT | 2 | $ 3.20 | 1993 to 1999 | |
4-1 | 09160-08062 Washer ![]() SKU: 09160-08062 Weight: 0.060000 Brand: Price: $ 2.27 |
Washer | 2 | $ 2.27 | For Ref# 2-1 | |
4-2 | 09160-08054 Washer ![]() SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 2 | $ 1.44 | For Ref# 3 1994 to 1999 | |
5 | 09180-08097-XC0 Spacer ![]() SKU: 09180-08097-XC0 Weight: 0.060000 Brand: Price: $ 2.71 |
Spacer | 2 | $ 2.71 | ||
6 | 31100-94610 Starter Motor Assembly (NLA) ![]() SKU: 31100-94610 Weight: 8.000000 Brand: Price: $ 764.39 |
Starter Motor Assembly (NLA) | 1 | $ 764.39 | ||
7 | 31173-95310 Brush Holder ![]() SKU: 31173-95310 Weight: 0.160000 Brand: Price: $ 62.73 |
Brush Holder | 1 | $ 62.73 | ||
8 | 31131-95310 Brush (+) ![]() SKU: 31131-95310 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 2 | $ 25.72 | ||
9 | 31131-95241 Brush ![]() SKU: 31131-95241 Weight: 0.060000 Brand: Price: $ 14.27 |
Brush | 1 | $ 14.27 | ||
10 | 31135-95310 Spring (NLA) ![]() SKU: 31135-95310 Weight: 0.060000 Brand: Price: $ 4.46 |
Spring (NLA) | 3 | $ 4.46 | ||
11 | 31281-94510 Through Bolt ![]() SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
12 | 31312-94601 Pinion Stopper Set ![]() SKU: 31312-94601 Weight: 0.250000 Brand: Price: $ 13.39 |
Pinion Stopper Set | 1 | $ 13.39 | ||
13 | 31320-95240 Pinion Assembly (NLA) ![]() SKU: 31320-95240 Weight: 0.600000 Brand: Price: $ 210.00 |
Pinion Assembly (NLA) | 1 | $ 210.00 | ||
14 | 31360-87D00 Washer Kit (NLA) ![]() SKU: 31360-87D00 Weight: 0.100000 Brand: Price: $ 4.35 |
Washer Kit (NLA) | 1 | $ 4.35 | ||
15 | 31310-94600 Armature (NLA) ![]() SKU: 31310-94600 Weight: 5.000000 Brand: Price: $ 347.90 |
Armature (NLA) | 1 | $ 347.90 | ||
16 | 31916-94500 Starter Motor Upper Damper ![]() SKU: 31916-94500 Weight: 0.100000 Brand: Price: $ 4.84 |
Starter Motor Upper Damper | 2 | $ 4.84 | ||
17 | 31917-94500 Starter Motor Middle Damper (NLA) ![]() SKU: 31917-94500 Weight: 0.100000 Brand: Price: $ 9.16 |
Starter Motor Middle Damper (NLA) | 1 | $ 9.16 | ||
18 | 31918-94600 Lower Damper (NLA) ![]() SKU: 31918-94600 Weight: 0.100000 Brand: Price: $ 7.01 |
Lower Damper (NLA) | 1 | $ 7.01 | ||
19 | 09407-14403 Clamp (L:125) ![]() SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
20 | 31911-94620-0ED Starter Motor Bracket ![]() SKU: 31911-94620-0ED Weight: 1.200000 Brand: Price: $ 56.64 |
Starter Motor Bracket | 1 | $ 56.64 | ||
21 | 01580-08257 BOLT ![]() SKU: 01580-08257 Weight: 0.060000 Brand: Price: $ 3.24 |
BOLT | 4 | $ 3.24 | ||
22 | 31912-94600 Starting Motor Band (NLA) ![]() SKU: 31912-94600 Weight: 0.100000 Brand: Price: $ 4.37 |
Starting Motor Band (NLA) | 1 | $ 4.37 | ||
23 | 01550-08167 BOLT ![]() SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 2 | $ 2.84 | ||
24 | 09407-14403 Clamp (L:125) ![]() SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
25 | 33820-94600 Cable Assembly (NLA) ![]() SKU: 33820-94600 Weight: 5.000000 Brand: Price: $ 8.84 |
Cable Assembly (NLA) | 1 | $ 8.84 | ||
26 | 01550-08167 BOLT ![]() SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
