Suzuki DT 140 Parts Listings 1997 to 2001

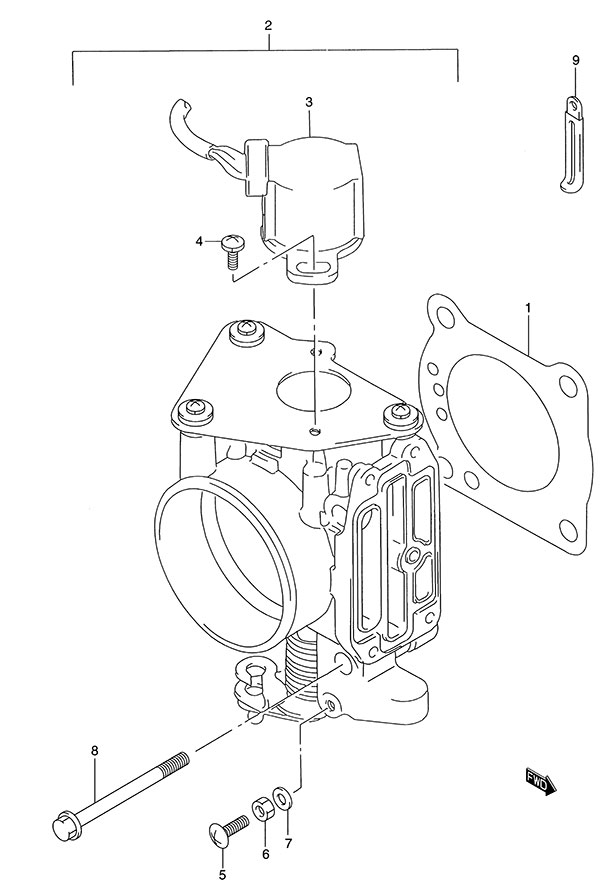

Fig. 10 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13125-94900 Throttle Body Gasket
SKU: 13125-94900 Weight: 0.060000 Brand: Price: $ 3.85 |
Throttle Body Gasket | 1 | $ 3.85 | ||
| 2 | 13300-94910 Throttle Body Assembly (NLA)
SKU: 13300-94910 Weight: 1.000000 Brand: Price: $ 551.90 |
Throttle Body Assembly (NLA) | 1 | $ 551.90 | ||
| 3 | 37810-94900 Throttle Valve Sensor Assembly
SKU: 37810-94900 Weight: 0.500000 Brand: Price: $ 269.47 |
Throttle Valve Sensor Assembly | 1 | $ 269.47 | ||
| 4 | 13381-94900 Throttle Sensor Screw (NLA)
SKU: 13381-94900 Weight: 0.100000 Brand: Price: $ 2.60 |
Throttle Sensor Screw (NLA) | 3 | $ 2.60 | ||
| 5 | 13391-94900 Adjust Screw (NLA)
SKU: 13391-94900 Weight: 0.100000 Brand: Price: $ 7.85 |
Adjust Screw (NLA) | 1 | $ 7.85 | ||
| 6 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 7 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 3 | $ 1.70 | ||
| 8 | 01550-08557 BOLT
SKU: 01550-08557 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 4 | $ 3.61 | ||
| 9 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
