Suzuki DT 140 Parts Listings 1997 to 2001

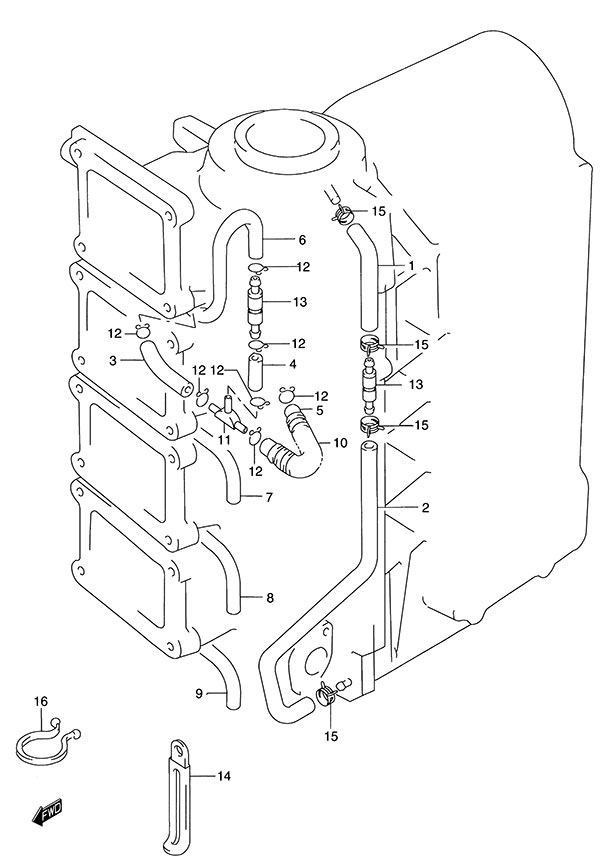

Fig. 9B - Lubrication Hose
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->120 | |
| 2 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->400 | |
| 3 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 4 | $ 7.94 | L:600->30 | |
| 4 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 4 | $ 7.94 | L:600->50 | |
| 5 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 4 | $ 7.94 | L:600->90 | |
| 6 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->380 | |
| 7 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->440 | |
| 8 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->520 | |
| 9 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->560 | |
| 10 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:600->65 | |
| 11 | 09367-04010 3 Way (NLA)
SKU: 09367-04010 Weight: 0.100000 Brand: Price: $ 3.03 |
3 Way (NLA) | 4 | $ 3.03 | ||
| 12 | 09401-07101 Clip (NLA)
SKU: 09401-07101 Weight: 0.100000 Brand: Price: $ 1.61 |
Clip (NLA) | 32 | $ 1.61 | ||
| 13 | 16710-95211 Check Valve
SKU: 16710-95211 Weight: 0.060000 Brand: Price: $ 17.43 |
Check Valve | 5 | $ 17.43 | ||
| 14-1 | 09404-08207 Clamp (L:97)
SKU: 09404-08207 Weight: 0.100000 Brand: Price: $ 2.37 |
Clamp (L:97) | 2 | $ 2.37 | ||
| 14-2 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 15 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 4 | $ 2.12 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
