Suzuki DT 140 Parts Listings
S/N 231404 to 1996

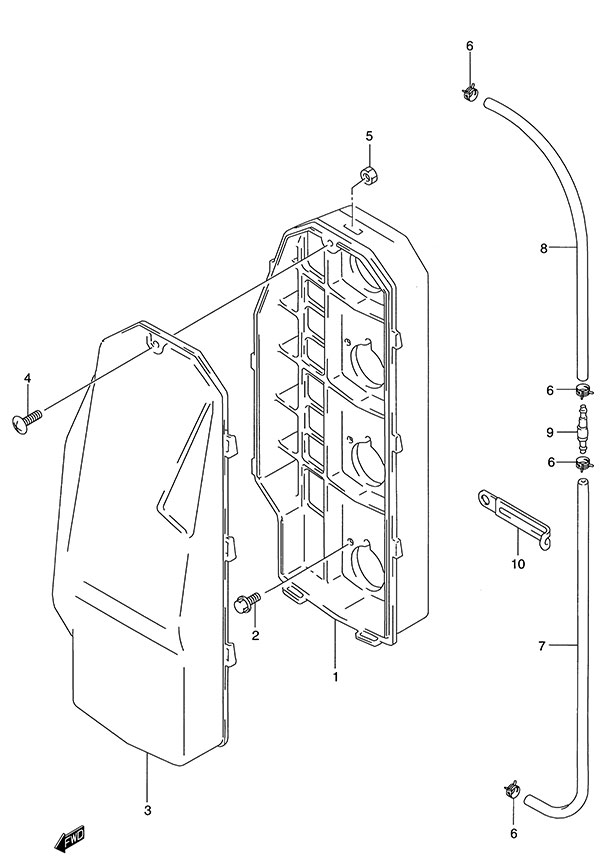

Fig. 9 - Silencer Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13811-94601 Silencer Case (NLA)
SKU: 13811-94601 Weight: 2.000000 Brand: Price: $ 45.93 |
Silencer Case (NLA) | 1 | $ 45.93 | ||
| 2 | 09116-06160 Bolt (6x16)
SKU: 09116-06160 Weight: 0.060000 Brand: Price: $ 2.25 |
Bolt (6x16) | 8 | $ 2.25 | ||
| 3 | 13812-94601 Silencer Cover (NLA)
SKU: 13812-94601 Weight: 0.600000 Brand: Price: $ 35.32 |
Silencer Cover (NLA) | 1 | $ 35.32 | ||
| 4 | 09125-06095 Screw (6x25)
SKU: 09125-06095 Weight: 0.200000 Brand: Price: $ 3.26 |
Screw (6x25) | 1 | $ 3.26 | ||
| 5 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 6 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 4 | $ 2.12 | ||
| 7 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->400 | |
| 8 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->120 | |
| 9 | 16710-95211 Check Valve
SKU: 16710-95211 Weight: 0.060000 Brand: Price: $ 17.43 |
Check Valve | 1 | $ 17.43 | ||
| 10 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
