Suzuki DT 140 Parts Listings 1986 to S/N 231403

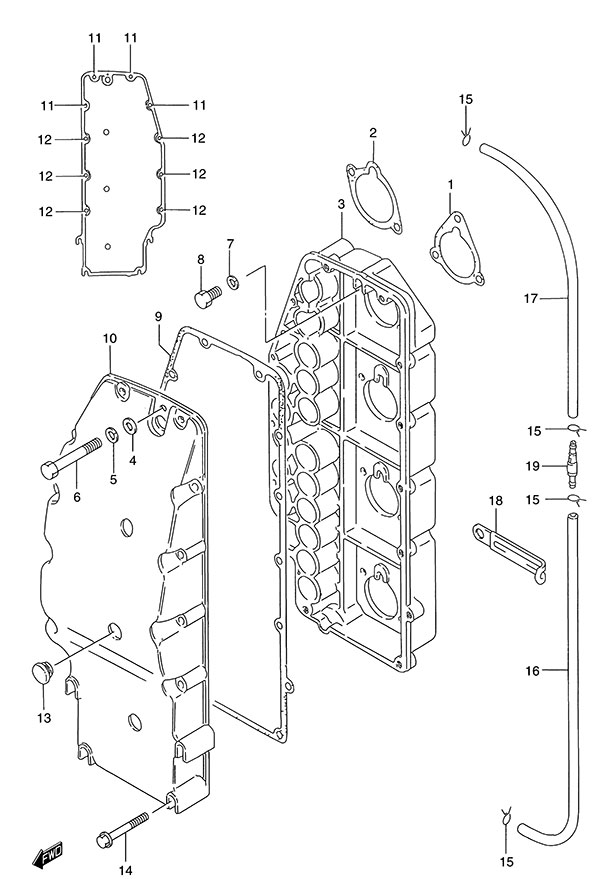

Fig. 8 - Silencer
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 13855-95210 Silencer Gasket
SKU: 13855-95210 Weight: 0.060000 Brand: Price: $ 4.13 |
Silencer Gasket | 4 | $ 4.13 | ||
| 3 | 13811-94601 Silencer Case (NLA)
SKU: 13811-94601 Weight: 2.000000 Brand: Price: $ 45.93 |
Silencer Case (NLA) | 1 | $ 45.93 | ||
| 4 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Washer (6.5x13x1.0) | 1 | $ 1.95 | ||
| 5 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 6 | 09100-06038 Bolt (6x50)
SKU: 09100-06038 Weight: 0.060000 Brand: Price: $ 1.54 |
Bolt (6x50) | 1 | $ 1.54 | ||
| 7 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 8 | $ 1.95 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 8 | $ 2.45 | ||
| 9 | 13853-94510 Silencer Gasket (NLA)
SKU: 13853-94510 Weight: 0.140000 Brand: Price: $ 20.94 |
Silencer Gasket (NLA) | 1 | $ 20.94 | ||
| 10 | 13812-94504 Silencer Cover (NLA)
SKU: 13812-94504 Weight: 0.100000 Brand: Price: $ 25.37 |
Silencer Cover (NLA) | 1 | $ 25.37 | ||
| 11 | 02142-05207 SCREW
SKU: 02142-05207 Weight: 0.060000 Brand: Price: $ 1.50 |
SCREW | 4 | $ 1.50 | ||
| 12 | 02142-05357 SCREW
SKU: 02142-05357 Weight: 0.060000 Brand: Price: $ 2.48 |
SCREW | 6 | $ 2.48 | ||
| 13 | 09250-15010 Plug
SKU: 09250-15010 Weight: 0.060000 Brand: Price: $ 1.94 |
Plug | 4 | $ 1.94 | ||
| 14 | 01550-05457 BOLT 5X45
SKU: 01550-05457 Weight: 0.060000 Brand: Price: $ 2.60 |
BOLT 5X45 | 4 | $ 2.60 | ||
| 15 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.23 |
Clamp | 4 | $ 2.23 | ||
| 16 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 9.15 |
Hose (3x7x600) | 1 | $ 9.15 | L:600->400 | |
| 17 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 9.15 |
Hose (3x7x600) | 1 | $ 9.15 | L:600->120 | |
| 18 | 09404-08420 Clamp
SKU: 09404-08420 Weight: 0.125000 Brand: Price: $ 3.38 |
Clamp | 1 | $ 3.38 | ||
| 19 | 16710-95211 Check Valve
SKU: 16710-95211 Weight: 0.060000 Brand: Price: $ 18.03 |
Check Valve | 1 | $ 18.03 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
