Suzuki DT 140 Parts Listings 1986 to 1996

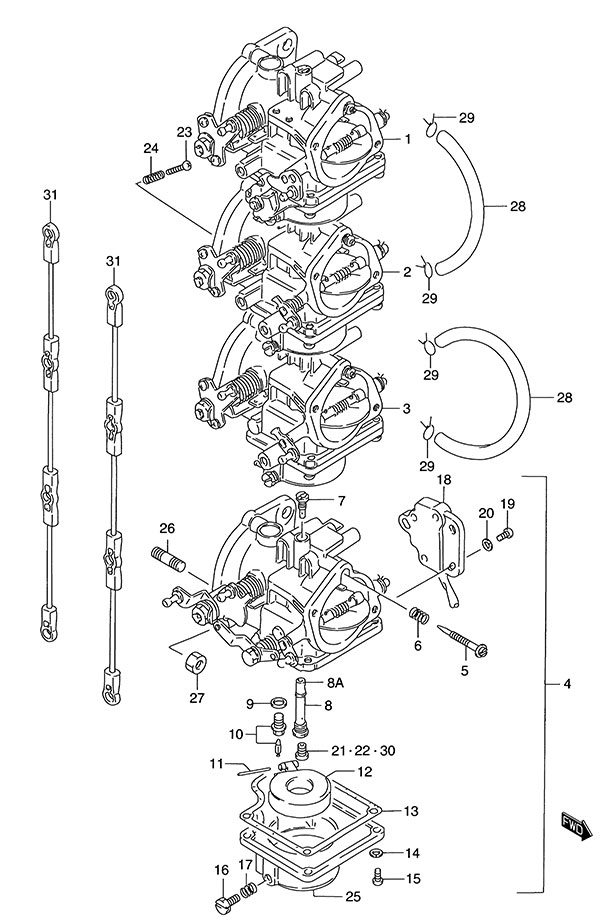

Fig. 7 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-94660 Top Carburetor Assembly (NLA)
SKU: 13201-94660 Weight: 1.000000 Brand: Price: $ 348.45 |
Top Carburetor Assembly (NLA) | 1 | $ 348.45 | 1986 to 1988 | |
| 1-2 | 13201-946B4 Top Carburetor Assembly (NLA)
SKU: 13201-946B4 Weight: 1.000000 Brand: Price: $ 301.67 |
Top Carburetor Assembly (NLA) | 1 | $ 301.67 | 1989 to 1996 | |
| 2-1 | 13202-94660 2nd Carburetor Assembly (NLA)
SKU: 13202-94660 Weight: 0.100000 Brand: Price: $ 286.64 |
2nd Carburetor Assembly (NLA) | 1 | $ 286.64 | 1986 to 1988 | |
| 2-2 | 13202-946B4 2nd Carburetor Assembly (NLA)
SKU: 13202-946B4 Weight: 1.000000 Brand: Price: $ 340.40 |
2nd Carburetor Assembly (NLA) | 1 | $ 340.40 | 1989 to 1996 | |
| 3-1 | 13203-94660 3rd Carburetor Assembly (NLA)
SKU: 13203-94660 Weight: 0.100000 Brand: Price: $ 348.45 |
3rd Carburetor Assembly (NLA) | 1 | $ 348.45 | 1986 to 1988 | |
| 4-1 | 13204-94660 4th Carburetor Assembly (NLA)
SKU: 13204-94660 Weight: 1.000000 Brand: Price: $ 393.27 |
4th Carburetor Assembly (NLA) | 1 | $ 393.27 | 1986 to 1988 | |
| 4-2 | 13204-946B4 4th Carburetor Assembly (NLA)
SKU: 13204-946B4 Weight: 2.000000 Brand: Price: $ 707.34 |
4th Carburetor Assembly (NLA) | 1 | $ 707.34 | 1989 to 1996 | |
| 5 | 13269-95210 Pilot Air Screw
SKU: 13269-95210 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 4 | $ 8.28 | ||
| 6 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 4 | $ 4.90 | ||
| 7-1 | 09492-80005 Pilot Jet #80
SKU: 09492-80005 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #80 | 4 | $ 10.00 | 1986 to 1988 | |
| 7-2 | 09492-85001 Pilot Jet #85
SKU: 09492-85001 Weight: 0.060000 Brand: Price: $ 10.07 |
Pilot Jet #85 | 4 | $ 10.07 | 1989 to 1992 | |
| 7-3 | 09492-80005 Pilot Jet #80
SKU: 09492-80005 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #80 | 4 | $ 10.00 | 1993 to 1996 | |
| 8-1 | 13235-95210 Main Nozzle
SKU: 13235-95210 Weight: 0.060000 Brand: Price: $ 24.93 |
Main Nozzle | 4 | $ 24.93 | 1986 to 1988 | |
| 8-2 | 13236-94600 Main Nozzle (NLA)
SKU: 13236-94600 Weight: 0.060000 Brand: Price: $ 17.30 |
Main Nozzle (NLA) | 4 | $ 17.30 | 1986 to 1996 | |
| 8A | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.47 |
Upper Nozzle | 4 | $ 3.47 | ||
| 9 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 4 | $ 1.91 | ||
| 10 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 4 | $ 49.35 | ||
| 11 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 4 | $ 3.28 | ||
| 12 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 4 | $ 20.17 | ||
| 13 | 13251-95220 Float Chamber Gasket
SKU: 13251-95220 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 4 | $ 8.56 | ||
| 14 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 16 | $ 1.85 | ||
| 15 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 16 | $ 1.88 | ||
| 16 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 4 | $ 7.95 | ||
| 17 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 4 | $ 4.90 | ||
| 18-1 | 37810-94601 Throttle Valve Sensor Assembly (NLA)
SKU: 37810-94601 Weight: 0.180000 Brand: Price: $ 77.16 |
Throttle Valve Sensor Assembly (NLA) | 1 | $ 77.16 | 1986 to 1988 | |
| 18-2 | 37810-95606 Throttle Valve Sensor Assembly
SKU: 37810-95606 Weight: 0.180000 Brand: Price: $ 232.07 |
Throttle Valve Sensor Assembly | 1 | $ 232.07 | 1989 to 1996 | |
| 19 | 02112-0416A SCREW
SKU: 02112-0416A Weight: 0.125000 Brand: Price: $ 1.24 |
SCREW | 2 | $ 1.24 | ||
| 20 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 21-1 | 09491-31007 Main Jet #157.5 (NLA)
SKU: 09491-31007 Weight: 0.100000 Brand: Price: $ 4.37 |
Main Jet #157.5 (NLA) | 1 | $ 4.37 | Carb #1 1986 to 1988 | |
| 21-2 | 09491-31014 Main Jet #155
SKU: 09491-31014 Weight: 0.200000 Brand: Price: $ 16.47 |
Main Jet #155 | 1 | $ 16.47 | Carb #2 1986 to 1988 | |
| 21-3 | 09491-32008 Main Jet #162.5
SKU: 09491-32008 Weight: 0.060000 Brand: Price: $ 8.13 |
Main Jet #162.5 | 1 | $ 8.13 | Carb #3 1986 to 1988 | |
| 21-4 | 09491-31014 Main Jet #155
SKU: 09491-31014 Weight: 0.200000 Brand: Price: $ 16.47 |
Main Jet #155 | 1 | $ 16.47 | Carb #4 1986 to 1988 | |
| 22-1 | 09491-30010 Main Jet #150
SKU: 09491-30010 Weight: 0.062500 Brand: Price: $ 7.82 |
Main Jet #150 | 4 | $ 7.82 | 1989 to 1996 S/N 651314 Older | |
| 22-2 | 09491-32012 Main Jet #160
SKU: 09491-32012 Weight: 0.060000 Brand: Price: $ 12.00 |
Main Jet #160 | 4 | $ 12.00 | S/N 651315 Newer | |
| 23 | 13534-95D00 Screw
SKU: 13534-95D00 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 24 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 25 | 13245-95210 Float Chamber (NLA)
SKU: 13245-95210 Weight: 0.100000 Brand: Price: $ 48.93 |
Float Chamber (NLA) | 4 | $ 48.93 | ||
| 26 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 8 | $ 2.03 | ||
| 27 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 8 | $ 2.27 | ||
| 28 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->135 Upper L:600->270 Lower | |
| 29 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | ||
| 30-1 | 09491-29006 Main Jet #145 (NLA)
SKU: 09491-29006 Weight: 0.100000 Brand: Price: $ 5.38 |
Main Jet #145 (NLA) | 1 | $ 5.38 | Optional | |
| 30-2 | 09491-29010 Main Jet #147.5
SKU: 09491-29010 Weight: 0.100000 Brand: Price: $ 11.89 |
Main Jet #147.5 | 1 | $ 11.89 | Optional | |
| 30-3 | 09491-30009 Main Jet #152.5 (NLA)
SKU: 09491-30009 Weight: 0.100000 Brand: Price: $ 5.12 |
Main Jet #152.5 (NLA) | 1 | $ 5.12 | Optional | |
| 30-4 | 09491-32012 Main Jet #160
SKU: 09491-32012 Weight: 0.060000 Brand: Price: $ 12.00 |
Main Jet #160 | 1 | $ 12.00 | Optional | |
| 30-5 | 09491-33007 Main Jet #167.5 (NLA)
SKU: 09491-33007 Weight: 0.060000 Brand: Price: $ 12.02 |
Main Jet #167.5 (NLA) | 1 | $ 12.02 | Optional | |
| 31 | 13510-94600 Throttle Rod Assembly (NLA)
SKU: 13510-94600 Weight: 0.100000 Brand: Price: $ 13.39 |
Throttle Rod Assembly (NLA) | 2 | $ 13.39 | ||
| 32 | 13910-94400 Carburetor Repair Kit
SKU: 13910-94400 Weight: 0.080000 Brand: Price: $ 34.42 |
Carburetor Repair Kit | 4 | $ 34.42 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
