Suzuki DT 140 Parts Listings 1986 to 2001

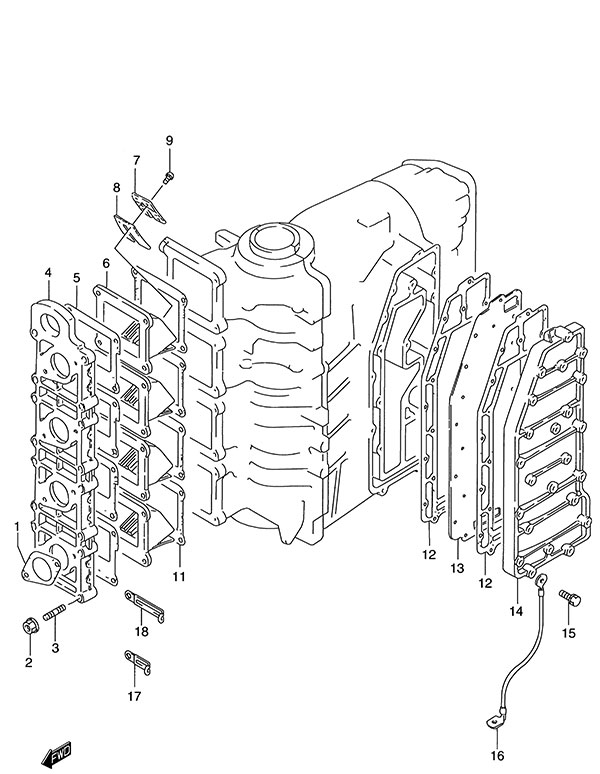

Fig. 4 - Intake/Exhaust Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13125-95210 Carburetor Gasket
SKU: 13125-95210 Weight: 0.060000 Brand: Price: $ 4.33 |
Carburetor Gasket | 4 | $ 4.33 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 16 | $ 2.27 | ||
| 3 | 01421-08357 BOLT,STUD
SKU: 01421-08357 Weight: 0.060000 Brand: Price: $ 4.62 |
BOLT,STUD | 16 | $ 4.62 | ||
| 4-1 | 13110-94601 Inlet Case (NLA)
SKU: 13110-94601 Weight: 1.000000 Brand: Price: $ 130.82 |
Inlet Case (NLA) | 1 | $ 130.82 | 1986 to 1994 | |
| 4-2 | 13110-946V1 Inlet Case (NLA)
SKU: 13110-946V1 Weight: 1.000000 Brand: Price: $ 119.81 |
Inlet Case (NLA) | 1 | $ 119.81 | 1995 to 1996 | |
| 5 | 13121-94510 Inlet Case Gasket (NLA)
SKU: 13121-94510 Weight: 0.060000 Brand: Price: $ 5.45 |
Inlet Case Gasket (NLA) | 4 | $ 5.45 | ||
| 6 | 13150-94502 Reed Valve Assembly (NLA)
SKU: 13150-94502 Weight: 0.500000 Brand: Price: $ 122.84 |
Reed Valve Assembly (NLA) | 4 | $ 122.84 | ||
| 7 | 13152-94501 Reed Valve Stopper (NLA)
SKU: 13152-94501 Weight: 0.100000 Brand: Price: $ 7.17 |
Reed Valve Stopper (NLA) | 16 | $ 7.17 | ||
| 8 | 13153-94500 Reed Valve (NLA)
SKU: 13153-94500 Weight: 0.060000 Brand: Price: $ 13.38 |
Reed Valve (NLA) | 16 | $ 13.38 | ||
| 9 | 02112-3308A SCREW
SKU: 02112-3308A Weight: 0.060000 Brand: Price: $ 1.93 |
SCREW | 32 | $ 1.93 | ||
| 11 | 13156-94511 Reed Valve Gasket (NLA)
SKU: 13156-94511 Weight: 0.060000 Brand: Price: $ 7.44 |
Reed Valve Gasket (NLA) | 4 | $ 7.44 | ||
| 12 | 14151-94510 Exhaust Cover Gasket
SKU: 14151-94510 Weight: 0.250000 Brand: Price: $ 19.71 |
Exhaust Cover Gasket | 2 | $ 19.71 | ||
| 13 | 14131-94503 Exhaust Plate
SKU: 14131-94503 Weight: 1.010000 Brand: Price: $ 54.23 |
Exhaust Plate | 1 | $ 54.23 | ||
| 14 | 14141-94500-0ED Exhaust Cover (NLA)
SKU: 14141-94500-0ED Weight: 3.000000 Brand: Price: $ 90.87 |
Exhaust Cover (NLA) | 1 | $ 90.87 | ||
| 15 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 23 | $ 2.82 | ||
| 16 | 36895-94400 Wire Lead (NLA)
SKU: 36895-94400 Weight: 0.100000 Brand: Price: $ 1.61 |
Wire Lead (NLA) | 1 | $ 1.61 | ||
| 17 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 18 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 1 | $ 3.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
