Suzuki DT 140 Parts Listings 1996 to 2001

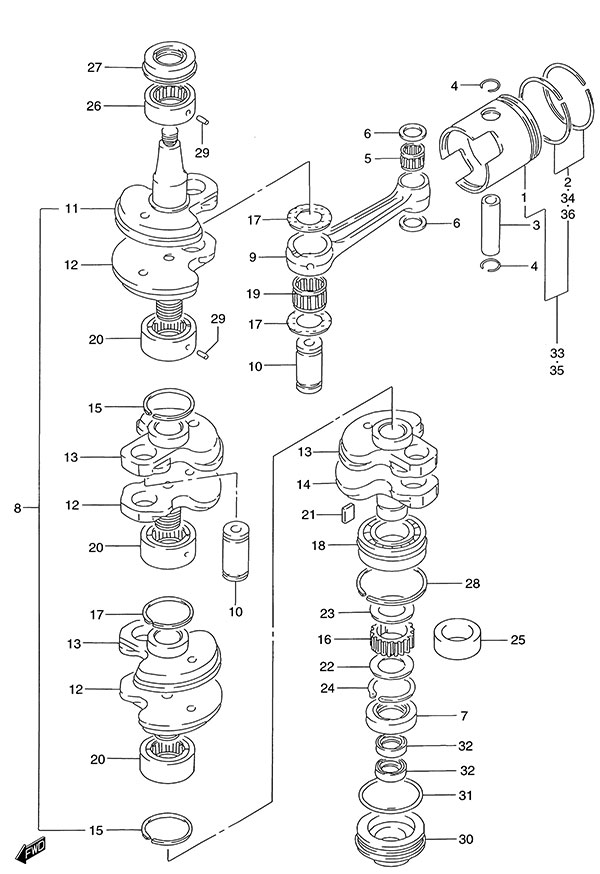

Fig. 3 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12110-94611 Piston
SKU: 12110-94611 Weight: 1.000000 Brand: Price: $ 106.97 |
Piston | 4 | $ 106.97 | ||
| 2 | 12140-87D02 Piston Ring Set
SKU: 12140-87D02 Weight: 0.250000 Brand: Price: $ 43.30 |
Piston Ring Set | 4 | $ 43.30 | ||
| 3 | 12151-94601 Piston Pin
SKU: 12151-94601 Weight: 0.250000 Brand: Price: $ 17.18 |
Piston Pin | 4 | $ 17.18 | ||
| 4 | 09381-22004 Circlip
SKU: 09381-22004 Weight: 0.060000 Brand: Price: $ 1.14 |
Circlip | 8 | $ 1.14 | ||
| 5 | 09263-22063 Bearing (22x28x30)
SKU: 09263-22063 Weight: 0.100000 Brand: Price: $ 31.68 |
Bearing (22x28x30) | 4 | $ 31.68 | ||
| 6 | 09181-22251 Washer
SKU: 09181-22251 Weight: 0.060000 Brand: Price: $ 3.28 |
Washer | 8 | $ 3.28 | ||
| 7 | 09283-35030 Oil Seal (35x58x8)
SKU: 09283-35030 Weight: 0.060000 Brand: Price: $ 12.41 |
Oil Seal (35x58x8) | 1 | $ 12.41 | ||
| 8 | 12200-94900 Crankshaft Assembly (NLA)
SKU: 12200-94900 Weight: 25.000000 Brand: Price: $ 1,899.32 |
Crankshaft Assembly (NLA) | 1 | $ 1,899.32 | ||
| 9 | 12161-94900 Connecting Rod
SKU: 12161-94900 Weight: 2.000000 Brand: Price: $ 121.24 |
Connecting Rod | 4 | $ 121.24 | ||
| 10 | 12211-94610 Crankshaft Pin Upper
SKU: 12211-94610 Weight: 0.700000 Brand: Price: $ 32.50 |
Crankshaft Pin Upper | 4 | $ 32.50 | ||
| 11 | 12221-94900 Upper Crankshaft (NLA)
SKU: 12221-94900 Weight: 10.000000 Brand: Price: $ 115.44 |
Upper Crankshaft (NLA) | 1 | $ 115.44 | ||
| 12 | 12232-94900 Middle Under Wheel (NLA)
SKU: 12232-94900 Weight: 10.000000 Brand: Price: $ 122.89 |
Middle Under Wheel (NLA) | 3 | $ 122.89 | ||
| 13 | 12231-94900 Middle Upper Wheel (NLA)
SKU: 12231-94900 Weight: 10.000000 Brand: Price: $ 130.16 |
Middle Upper Wheel (NLA) | 3 | $ 130.16 | ||
| 14 | 12240-94900 Under Crankshaft (NLA)
SKU: 12240-94900 Weight: 10.000000 Brand: Price: $ 130.16 |
Under Crankshaft (NLA) | 1 | $ 130.16 | ||
| 15 | 12323-94600 Ring Seal (NLA)
SKU: 12323-94600 Weight: 0.060000 Brand: Price: $ 4.34 |
Ring Seal (NLA) | 6 | $ 4.34 | ||
| 16 | 16321-94600 Oil Pump Drive Gear
SKU: 16321-94600 Weight: 0.250000 Brand: Price: $ 107.45 |
Oil Pump Drive Gear | 1 | $ 107.45 | ||
| 17 | 09160-30034 Washer
SKU: 09160-30034 Weight: 0.060000 Brand: Price: $ 8.61 |
Washer | 8 | $ 8.61 | ||
| 18 | 09262-40003 Bearing (40x80x18) (NLA)
SKU: 09262-40003 Weight: 0.500000 Brand: Price: $ 86.20 |
Bearing (40x80x18) (NLA) | 1 | $ 86.20 | ||
| 19 | 09263-30019 Bearing (32x40x22)
SKU: 09263-30019 Weight: 0.140000 Brand: Price: $ 64.55 |
Bearing (32x40x22) | 4 | $ 64.55 | ||
| 20 | 09269-40003 Bearing (40x65x37) (NLA)
SKU: 09269-40003 Weight: 0.860000 Brand: Price: $ 168.66 |
Bearing (40x65x37) (NLA) | 3 | $ 168.66 | ||
| 21 | 09421-10002 Key (NLA)
SKU: 09421-10002 Weight: 0.100000 Brand: Price: $ 3.57 |
Key (NLA) | 1 | $ 3.57 | ||
| 22 | 09181-35167 Washer (NLA)
SKU: 09181-35167 Weight: 0.060000 Brand: Price: $ 2.80 |
Washer (NLA) | 1 | $ 2.80 | ||
| 23 | 09181-35240 Washer (NLA)
SKU: 09181-35240 Weight: 0.100000 Brand: Price: $ 3.71 |
Washer (NLA) | 1 | $ 3.71 | ||
| 24 | 08331-3135A Circlip
SKU: 08331-3135A Weight: 0.060000 Brand: Price: $ 2.09 |
Circlip | 1 | $ 2.09 | ||
| 26 | 09263-40010 RC 40x62x27 Bearing
SKU: 09263-40010 Weight: 0.660000 Brand: Price: $ 170.05 |
RC 40x62x27 Bearing | 1 | $ 170.05 | ||
| 27 | 09283-40024 Oil Seal (40x26x8)
SKU: 09283-40024 Weight: 0.060000 Brand: Price: $ 9.45 |
Oil Seal (40x26x8) | 1 | $ 9.45 | ||
| 28 | 09390-80002 C-Ring
SKU: 09390-80002 Weight: 0.060000 Brand: Price: $ 2.82 |
C-Ring | 1 | $ 2.82 | ||
| 29 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 4 | $ 1.11 | ||
| 30 | 11431-94600 Under Oil Seal Housing (NLA)
SKU: 11431-94600 Weight: 0.280000 Brand: Price: $ 23.82 |
Under Oil Seal Housing (NLA) | 1 | $ 23.82 | ||
| 31 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 1 | $ 6.34 | ||
| 32 | 09282-24003 Oil Seal (24x36x6)
SKU: 09282-24003 Weight: 0.060000 Brand: Price: $ 5.41 |
Oil Seal (24x36x6) | 2 | $ 5.41 | ||
| 33 | 12100-94611-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-94611-025 Weight: 1.200000 Brand: Price: $ 120.10 |
Piston & Ring Set (OS:0.25) (NLA) | 4 | $ 120.10 | Optional | |
| 34 | 12140-95320-025 Piston Ring Set (OS:0.25)(NLA)
SKU: 12140-95320-025 Weight: 0.250000 Brand: Price: $ 41.79 |
Piston Ring Set (OS:0.25)(NLA) | 4 | $ 41.79 | Optional | |
| 35 | 12100-94611-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-94611-050 Weight: 1.200000 Brand: Price: $ 120.10 |
Piston & Ring Set (OS:0.50) (NLA) | 4 | $ 120.10 | Optional | |
| 36 | 12140-95320-050 Piston Ring Set (OS:0.50)
SKU: 12140-95320-050 Weight: 0.250000 Brand: Price: $ 43.05 |
Piston Ring Set (OS:0.50) | 4 | $ 43.05 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
