Suzuki DT 115 Parts Listings 1986 to 2001

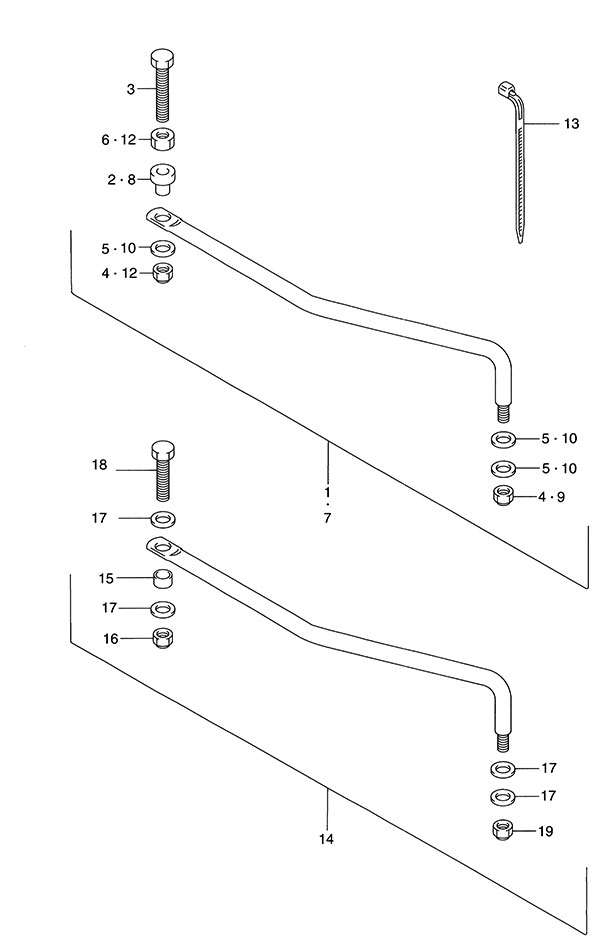

Fig. 60 - Opt: Drag Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67701-94502 Drag Link Assembly (NLA)
SKU: 67701-94502 Weight: 0.100000 Brand: Price: $ 52.35 |
Drag Link Assembly (NLA) | 1 | $ 52.35 | ||
| 2 | 67721-94510 Spacer (NLA)
SKU: 67721-94510 Weight: 0.100000 Brand: Price: $ 5.16 |
Spacer (NLA) | 1 | $ 5.16 | ||
| 3 | 67725-99E00 Drag Link Bolt
SKU: 67725-99E00 Weight: 0.080000 Brand: Price: $ 7.42 |
Drag Link Bolt | 1 | $ 7.42 | ||
| 4 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 1 | $ 8.24 | ||
| 5 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 3 | $ 2.65 | ||
| 6 | 43764-95500 Nut (NLA)
SKU: 43764-95500 Weight: 0.100000 Brand: Price: $ 2.86 |
Nut (NLA) | 1 | $ 2.86 | ||
| 7 | 67701-94511 Drag Link Assembly (NLA)
SKU: 67701-94511 Weight: 0.100000 Brand: Price: $ 34.92 |
Drag Link Assembly (NLA) | 1 | $ 34.92 | Standard | |
| 8 | 67721-94510 Spacer (NLA)
SKU: 67721-94510 Weight: 0.100000 Brand: Price: $ 5.16 |
Spacer (NLA) | 1 | $ 5.16 | ||
| 9 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | ||
| 10 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 3 | $ 2.65 | ||
| 12 | 43764-95500 Nut (NLA)
SKU: 43764-95500 Weight: 0.100000 Brand: Price: $ 2.86 |
Nut (NLA) | 1 | $ 2.86 | ||
| 13 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 14-1 | 67701-94530 Drag Link Assembly (NLA)
SKU: 67701-94530 Weight: 0.100000 Brand: Price: $ 91.47 |
Drag Link Assembly (NLA) | 1 | $ 91.47 | Std: 1993 to 1995 | |
| 14-2 | 67701-94900 Drag Link Assembly (NLA)
SKU: 67701-94900 Weight: 10.000000 Brand: Price: $ 77.12 |
Drag Link Assembly (NLA) | 1 | $ 77.12 | Std: 1996 to 2001 | |
| 15 | 67721-94520 Spacer (NLA)
SKU: 67721-94520 Weight: 0.100000 Brand: Price: $ 6.16 |
Spacer (NLA) | 1 | $ 6.16 | Std: 1993 to 2001 | |
| 16 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 1 | $ 8.24 | Std: 1993 to 2001 | |
| 17 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 4 | $ 2.65 | Std: 1993 to 2001 | |
| 18 | 67725-94520 Drag Link Bolt (NLA)
SKU: 67725-94520 Weight: 0.100000 Brand: Price: $ 9.45 |
Drag Link Bolt (NLA) | 1 | $ 9.45 | Std: 1993 to 2001 | |
| 19 | 43764-95500 Nut (NLA)
SKU: 43764-95500 Weight: 0.100000 Brand: Price: $ 2.86 |
Nut (NLA) | 1 | $ 2.86 | Std: 1993 to 2001 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
