Suzuki DT 115 Parts Listings 1986 to 2001

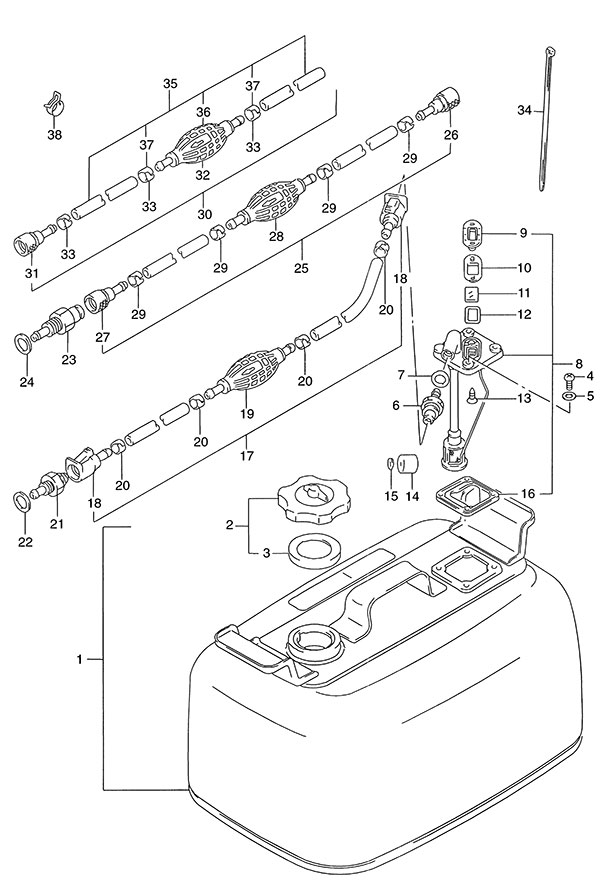

Fig. 54 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65800-92823 Fuel Tank Set (NLA)
SKU: 65800-92823 Weight: 0.100000 Brand: Price: $ 169.67 |
Fuel Tank Set (NLA) | 1 | $ 169.67 | ||
| 2 | 65510-92D00 Fuel Tank Cap Assembly
SKU: 65510-92D00 Weight: 0.250000 Brand: Price: $ 28.84 |
Fuel Tank Cap Assembly | 1 | $ 28.84 | ||
| 3 | 65561-92D00 Tank Cap Gasket
SKU: 65561-92D00 Weight: 0.100000 Brand: Price: $ 6.81 |
Tank Cap Gasket | 1 | $ 6.81 | ||
| 4 | 02112-16167 SCREW
SKU: 02112-16167 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 4 | $ 2.72 | ||
| 5-1 | 09168-06004 Washer
SKU: 09168-06004 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | 1986 to 1988 | |
| 5-2 | 09168-06026 Gasket
SKU: 09168-06026 Weight: 0.060000 Brand: Price: $ 3.16 |
Gasket | 4 | $ 3.16 | 1989 to 1995 | |
| 6-1 | 65720-94411 Fuel Connector (NLA)
SKU: 65720-94411 Weight: 0.060000 Brand: Price: $ 21.96 |
Fuel Connector (NLA) | 1 | $ 21.96 | ||
| 6-2 | 65740-95501 Fuel Tank Connector (13mm)
SKU: 65740-95501 Weight: 0.100000 Brand: Price: $ 26.29 |
Fuel Tank Connector (13mm) | 1 | $ 26.29 | S/N 231153 Newer | |
| 7-1 | 09168-12001 Gasket
SKU: 09168-12001 Weight: 0.200000 Brand: Price: $ 1.46 |
Gasket | 1 | $ 1.46 | 1986 to 1988 | |
| 7-2 | 09168-12015-XC0 Gasket (12.2x21x0.8)
SKU: 09168-12015-XC0 Weight: 0.060000 Brand: Price: $ 3.72 |
Gasket (12.2x21x0.8) | 1 | $ 3.72 | 1989 to 1995 | |
| 8 | 65850-92D01 Fuel Gauge Assembly (NLA)
SKU: 65850-92D01 Weight: 0.100000 Brand: Price: $ 35.99 |
Fuel Gauge Assembly (NLA) | 1 | $ 35.99 | ||
| 9-1 | 65855-92D00 Gauge Cover (NLA)
SKU: 65855-92D00 Weight: 0.100000 Brand: Price: $ 2.64 |
Gauge Cover (NLA) | 1 | $ 2.64 | 1986 to 1988 | |
| 9-2 | 65855-92D10 Gauge Cover (NLA)
SKU: 65855-92D10 Weight: 0.100000 Brand: Price: $ 2.25 |
Gauge Cover (NLA) | 1 | $ 2.25 | 1989 to 1995 | |
| 10-1 | 65854-92D10 Lens Gasket (NLA)
SKU: 65854-92D10 Weight: 0.100000 Brand: Price: $ 2.28 |
Lens Gasket (NLA) | 1 | $ 2.28 | 1986 to 1988 | |
| 10-2 | 65854-92D20 Lens Gasket (NLA)
SKU: 65854-92D20 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens Gasket (NLA) | 1 | $ 1.76 | 1989 to 1995 | |
| 11 | 65853-92D00 Lens (NLA)
SKU: 65853-92D00 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens (NLA) | 1 | $ 1.76 | ||
| 12-1 | 65854-92D00 Lens Gasket (NLA)
SKU: 65854-92D00 Weight: 0.100000 Brand: Price: $ 1.93 |
Lens Gasket (NLA) | 1 | $ 1.93 | 1986 to 1988 | |
| 12-2 | 65854-92D30 Lens Gasket (NLA)
SKU: 65854-92D30 Weight: 0.100000 Brand: Price: $ 1.79 |
Lens Gasket (NLA) | 1 | $ 1.79 | 1989 to 1995 | |
| 13 | 03222-04083 Screw (NLA)
SKU: 03222-04083 Weight: 0.100000 Brand: Price: $ 1.02 |
Screw (NLA) | 2 | $ 1.02 | ||
| 14 | 65864-92D00 Float (NLA)
SKU: 65864-92D00 Weight: 0.100000 Brand: Price: $ 3.99 |
Float (NLA) | 1 | $ 3.99 | ||
| 15 | 65866-92D00 Push Nut (NLA)
SKU: 65866-92D00 Weight: 0.100000 Brand: Price: $ 0.85 |
Push Nut (NLA) | 1 | $ 0.85 | ||
| 16 | 65871-92D00 Gasket (NLA)
SKU: 65871-92D00 Weight: 0.100000 Brand: Price: $ 2.59 |
Gasket (NLA) | 1 | $ 2.59 | ||
| 17 | 65700-87D16 Fuel Hose (NLA)
SKU: 65700-87D16 Weight: 0.100000 Brand: Price: $ 66.95 |
Fuel Hose (NLA) | 1 | $ 66.95 | ||
| 18 | 65750-94404 Fuel Hose Connector
SKU: 65750-94404 Weight: 0.060000 Brand: Price: $ 21.06 |
Fuel Hose Connector | 2 | $ 21.06 | ||
| 20 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 21 | 65720-94411 Fuel Connector (NLA)
SKU: 65720-94411 Weight: 0.060000 Brand: Price: $ 21.96 |
Fuel Connector (NLA) | 1 | $ 21.96 | ||
| 22 | 09161-12004 Washer
SKU: 09161-12004 Weight: 0.060000 Brand: Price: $ 2.34 |
Washer | 1 | $ 2.34 | ||
| 23-1 | 65720-955L1 Fuel Connector
SKU: 65720-955L1 Weight: 0.100000 Brand: Price: $ 59.85 |
Fuel Connector | 1 | $ 59.85 | S/N 231153 Newer | |
| 23-2 | 65721-87D00 Fuel Connector (NLA)
SKU: 65721-87D00 Weight: 0.060000 Brand: Price: $ 9.36 |
Fuel Connector (NLA) | 1 | $ 9.36 | 1997 to 2001 | |
| 24 | 09161-12004 Washer
SKU: 09161-12004 Weight: 0.060000 Brand: Price: $ 2.34 |
Washer | 1 | $ 2.34 | 1986 to 1996 S/N 231153 Newer | |
| 25 | 65700-87D85 Fuel Hose
SKU: 65700-87D85 Weight: 2.000000 Brand: Price: $ 229.94 |
Fuel Hose | 1 | $ 229.94 | S/N 231153 Newer | |
| 26 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | S/N 231153 Newer | |
| 27 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | S/N 231153 Newer | |
| 28 | 65770-95540 Squeeze Pump (NLA)
SKU: 65770-95540 Weight: 0.130000 Brand: Price: $ 19.04 |
Squeeze Pump (NLA) | 1 | $ 19.04 | S/N 231153 Newer | |
| 29 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | S/N 231153 Newer | |
| 30 | 65700-87D32 Fuel Hose (NLA)
SKU: 65700-87D32 Weight: 0.100000 Brand: Price: $ 39.86 |
Fuel Hose (NLA) | 1 | $ 39.86 | 1993 to 1996 | |
| 31 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | 1993 to 1996 | |
| 33 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 3 | $ 2.90 | 1993 to 1996 | |
| 34-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 34-2 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | 1995 to 1996 | |
| 35 | 65700-87D23 Fuel Hose
SKU: 65700-87D23 Weight: 1.010000 Brand: Price: $ 181.79 |
Fuel Hose | 1 | $ 181.79 | 1997 to 2001 | |
| 37 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 2 | $ 2.90 | 1997 to 2001 | |
| 38 | 09401-10409 Clip
SKU: 09401-10409 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 2 | $ 2.27 | 1997 to 2001 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
