Suzuki DT 115 Parts Listings 1986 to 2001

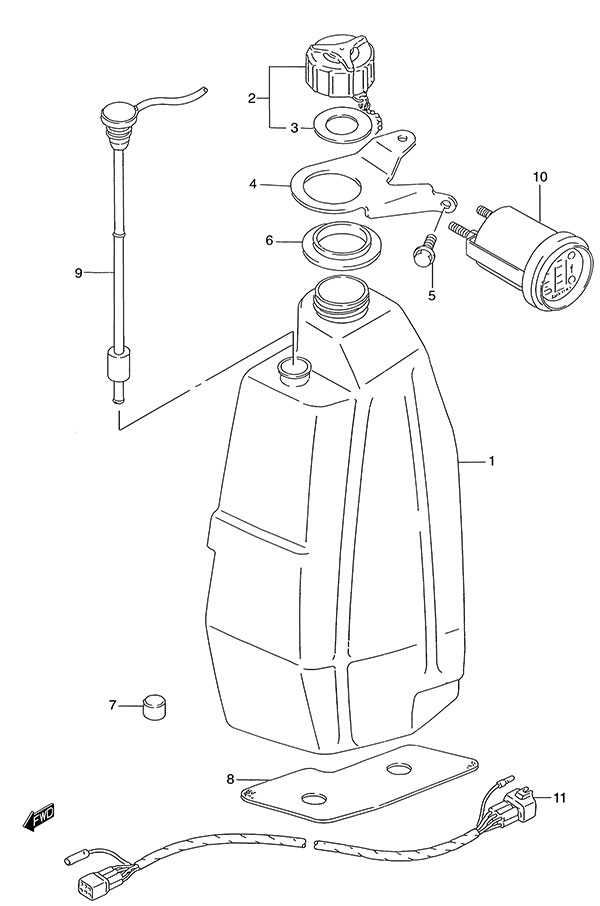

Fig. 53 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69110-94602 Oil Tank
SKU: 69110-94602 Weight: 1.600000 Brand: Price: $ 84.37 |
Oil Tank | 1 | $ 84.37 | ||
| 2 | 69200-94510 Suzuki Oil Tank Cap
SKU: 69200-94510 Weight: 0.120000 Brand: Price: $ 30.84 |
Suzuki Oil Tank Cap | 1 | $ 30.84 | ||
| 3 | 69241-94500 Oil Tank Cap Gasket
SKU: 69241-94500 Weight: 0.060000 Brand: Price: $ 3.02 |
Oil Tank Cap Gasket | 1 | $ 3.02 | ||
| 4 | 69311-94610 Oil Tank Support (NLA)
SKU: 69311-94610 Weight: 0.100000 Brand: Price: $ 8.09 |
Oil Tank Support (NLA) | 1 | $ 8.09 | ||
| 5 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 6 | 69312-94600 Upper Cushion (NLA)
SKU: 69312-94600 Weight: 0.100000 Brand: Price: $ 3.10 |
Upper Cushion (NLA) | 1 | $ 3.10 | ||
| 7 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 2 | $ 2.67 | ||
| 8 | 69361-94602 Oil Tank Cushion
SKU: 69361-94602 Weight: 0.100000 Brand: Price: $ 15.64 |
Oil Tank Cushion | 1 | $ 15.64 | ||
| 9 | 34860-94621 Oil Level Sensor (NLA)
SKU: 34860-94621 Weight: 0.240000 Brand: Price: $ 111.44 |
Oil Level Sensor (NLA) | 1 | $ 111.44 | ||
| 10-1 | 34701-92X50 Monitor Gauge Assembly (NLA)
SKU: 34701-92X50 Weight: 1.060000 Brand: Price: $ 239.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 239.95 | 1986 to 1992 | |
| 10-2 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | 1993 to 2001 | |
| 11-1 | 36660-94610 Monitor Gauge Harness (21 ft) (NLA)
SKU: 36660-94610 Weight: 1.900000 Brand: Price: $ 102.41 |
Monitor Gauge Harness (21 ft) (NLA) | 1 | $ 102.41 | L:6500 | |
| 11-2 | 36660-94690 Monitor Wiring Harness (NLA)
SKU: 36660-94690 Weight: 0.100000 Brand: Price: $ 55.72 |
Monitor Wiring Harness (NLA) | 1 | $ 55.72 | L:2000 | |
| 11-3 | 36660-95610 Monitor Gauge Harness (21 ft)
SKU: 36660-95610 Weight: 0.100000 Brand: Price: $ 205.70 |
Monitor Gauge Harness (21 ft) | 1 | $ 205.70 | 1993 to 2001 | |
| 11-4 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | Optional 1993 to 2001 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
