Suzuki DT 115 Parts Listings 1995 to 1997

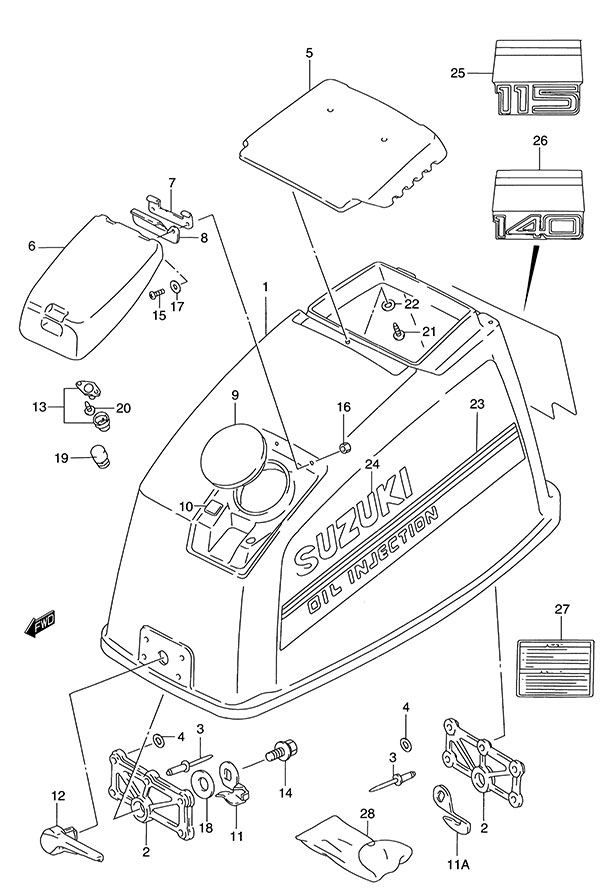

Fig. 51 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-94810-0ED Engine Cover Set (NLA)
SKU: 61420-94810-0ED Weight: 0.100000 Brand: Price: $ 690.60 |
Engine Cover Set (NLA) | 1 | $ 690.60 | ||
| 2 | 61651-94602 Front Hood Holder (NLA)
SKU: 61651-94602 Weight: 0.100000 Brand: Price: $ 11.67 |
Front Hood Holder (NLA) | 2 | $ 11.67 | ||
| 3 | 09229-04027 Rivet (NLA)
SKU: 09229-04027 Weight: 0.100000 Brand: Price: $ 1.19 |
Rivet (NLA) | 10 | $ 1.19 | ||
| 4 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 10 | $ 1.85 | ||
| 5 | 61431-94503-0ED Tilt Up Handle (NLA)
SKU: 61431-94503-0ED Weight: 2.000000 Brand: Price: $ 99.52 |
Tilt Up Handle (NLA) | 1 | $ 99.52 | ||
| 6 | 61481-94504-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94504-0ED Weight: 0.400000 Brand: Price: $ 51.76 |
Oil Tank Filler Lid (NLA) | 1 | $ 51.76 | ||
| 7 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 8 | 61485-94500 Oil Filler Lid Spring
SKU: 61485-94500 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 9 | 61486-94600 Engine Cover Cap (NLA)
SKU: 61486-94600 Weight: 0.140000 Brand: Price: $ 11.80 |
Engine Cover Cap (NLA) | 1 | $ 11.80 | ||
| 10 | 61544-94500 Oil Filler Pad
SKU: 61544-94500 Weight: 0.060000 Brand: Price: $ 1.76 |
Oil Filler Pad | 1 | $ 1.76 | ||
| 11 | 61641-94600 Front Hook (NLA)
SKU: 61641-94600 Weight: 0.100000 Brand: Price: $ 8.47 |
Front Hook (NLA) | 1 | $ 8.47 | ||
| 11A | 61631-94610 Rear Hook (NLA)
SKU: 61631-94610 Weight: 0.060000 Brand: Price: $ 9.93 |
Rear Hook (NLA) | 1 | $ 9.93 | ||
| 12 | 61645-94600-0ED Front Hook Lever (NLA)
SKU: 61645-94600-0ED Weight: 0.100000 Brand: Price: $ 25.32 |
Front Hook Lever (NLA) | 2 | $ 25.32 | ||
| 13 | 61670-94600 Oil Lid Striker Assy (NLA)
SKU: 61670-94600 Weight: 0.060000 Brand: Price: $ 3.87 |
Oil Lid Striker Assy (NLA) | 1 | $ 3.87 | ||
| 14 | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 2 | $ 4.31 | ||
| 15 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 16 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 17 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 18 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 2 | $ 3.38 | ||
| 19 | 09250-12012 Cap (NLA)
SKU: 09250-12012 Weight: 0.060000 Brand: Price: $ 5.52 |
Cap (NLA) | 1 | $ 5.52 | 1995 | |
| 20 | 03241-0410A SCREW
SKU: 03241-0410A Weight: 0.060000 Brand: Price: $ 1.32 |
SCREW | 2 | $ 1.32 | ||
| 21 | 03541-0616A SCREW
SKU: 03541-0616A Weight: 0.100000 Brand: Price: $ 1.82 |
SCREW | 4 | $ 1.82 | ||
| 22 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 23 | 61440-94660 Engine Cover Stripe Set (NLA)
SKU: 61440-94660 Weight: 0.060000 Brand: Price: $ 72.93 |
Engine Cover Stripe Set (NLA) | 1 | $ 72.93 | ||
| 24 | 68111-42031-1RR Suzuki Mark
SKU: 68111-42031-1RR Weight: 0.100000 Brand: Price: $ 23.47 |
Suzuki Mark | 2 | $ 23.47 | ||
| 25 | 61435-94660 Rear Mark "115"
SKU: 61435-94660 Weight: 0.100000 Brand: Price: $ 29.43 |
Rear Mark "115" | 1 | $ 29.43 | ||
| 27 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | ||
| 28 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
