Suzuki DT 115 Parts Listings 1986 to 2001

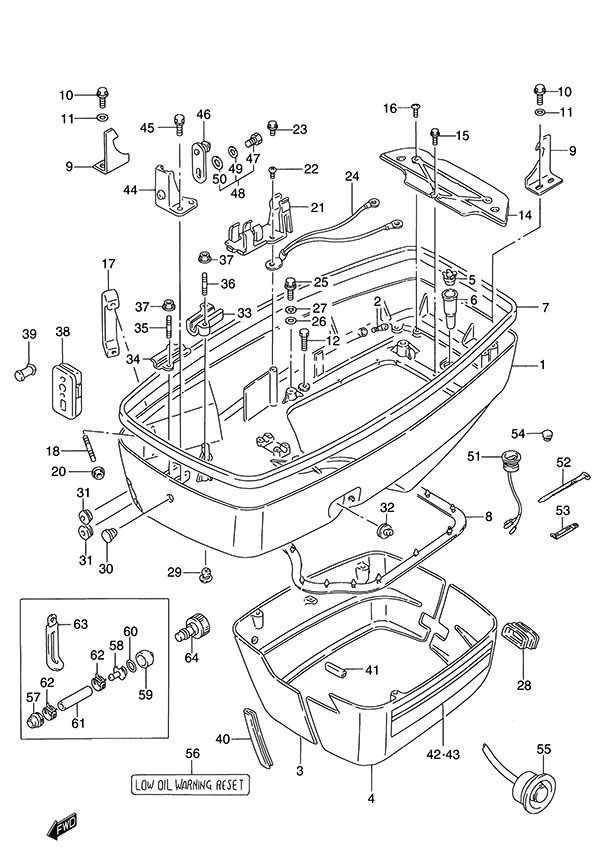

Fig. 47 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61110-94X53-0ED Lower Engine Cover (NLA)
SKU: 61110-94X53-0ED Weight: 50.000000 Brand: Price: $ 576.35 |
Lower Engine Cover (NLA) | 1 | $ 576.35 | ||
| 2 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 3 | 61131-94502-0ED Engine Holder Starboard Cover (NLA)
SKU: 61131-94502-0ED Weight: 2.000000 Brand: Price: $ 94.93 |
Engine Holder Starboard Cover (NLA) | 1 | $ 94.93 | ||
| 4 | 61141-94503-0ED Engine Holder Port Cover
SKU: 61141-94503-0ED Weight: 2.000000 Brand: Price: $ 80.94 |
Engine Holder Port Cover | 1 | $ 80.94 | ||
| 5-1 | 61139-94511 Drain Tube
SKU: 61139-94511 Weight: 0.200000 Brand: Price: $ 7.89 |
Drain Tube | 1 | $ 7.89 | 1986 to 1995 | |
| 5-2 | 61139-94901 Drain Tube
SKU: 61139-94901 Weight: 0.600000 Brand: Price: $ 14.45 |
Drain Tube | 1 | $ 14.45 | 1996 to 2001 | |
| 6 | 13979-37400 Drain Tube Retainer (NLA)
SKU: 13979-37400 Weight: 0.062500 Brand: Price: $ 8.62 |
Drain Tube Retainer (NLA) | 1 | $ 8.62 | 1986 to 1994 | |
| 7 | 61112-94502 Lower Cover Upper Seal (NLA)
SKU: 61112-94502 Weight: 1.500000 Brand: Price: $ 51.48 |
Lower Cover Upper Seal (NLA) | 1 | $ 51.48 | ||
| 8 | 61113-94503 Lower Cover Lower Seal
SKU: 61113-94503 Weight: 0.500000 Brand: Price: $ 23.66 |
Lower Cover Lower Seal | 1 | $ 23.66 | ||
| 9-1 | 61631-94602 Engine Cover Hook (NLA)
SKU: 61631-94602 Weight: 0.100000 Brand: Price: $ 12.15 |
Engine Cover Hook (NLA) | 2 | $ 12.15 | 1986 to 1987 | |
| 9-2 | 61631-94602 Engine Cover Hook (NLA)
SKU: 61631-94602 Weight: 0.100000 Brand: Price: $ 12.15 |
Engine Cover Hook (NLA) | 1 | $ 12.15 | 1988 to 1995 | |
| 10-1 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 4 | $ 3.07 | 1986 to 1987 | |
| 10-2 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 1988 to 1995 | |
| 11 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | 1988 to 1995 | |
| 12 | 09128-06052 Bolt (6x26) (NLA)
SKU: 09128-06052 Weight: 0.200000 Brand: Price: $ 1.56 |
Bolt (6x26) (NLA) | 4 | $ 1.56 | ||
| 14 | 61138-94601 Water Cover
SKU: 61138-94601 Weight: 2.000000 Brand: Price: $ 10.72 |
Water Cover | 1 | $ 10.72 | ||
| 15 | 09122-86003 Bolt (6x16) (NLA)
SKU: 09122-86003 Weight: 0.200000 Brand: Price: $ 1.57 |
Bolt (6x16) (NLA) | 1 | $ 1.57 | ||
| 16-1 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | 1986 to 1993 | |
| 16-2 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 2 | $ 1.38 | 1994 to 2001 | |
| 17 | 33816-94600 Clamp (NLA)
SKU: 33816-94600 Weight: 0.060000 Brand: Price: $ 7.02 |
Clamp (NLA) | 1 | $ 7.02 | ||
| 18 | 01421-06127 BOLT, STUD
SKU: 01421-06127 Weight: 0.200000 Brand: Price: $ 2.72 |
BOLT, STUD | 2 | $ 2.72 | ||
| 20 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | ||
| 21 | 36616-94600 Harness Connector Holder (NLA)
SKU: 36616-94600 Weight: 0.100000 Brand: Price: $ 6.13 |
Harness Connector Holder (NLA) | 1 | $ 6.13 | ||
| 22 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 1 | $ 2.09 | 1986 to 1992 | |
| 23 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | 1993 to 2001 | |
| 24 | 36895-95300 Lead (NLA)
SKU: 36895-95300 Weight: 0.100000 Brand: Price: $ 4.49 |
Lead (NLA) | 1 | $ 4.49 | ||
| 25-1 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 4 | $ 7.86 | 1986 to 1992 | |
| 25-2 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 4 | $ 4.19 | 1993 to 2001 | |
| 26-1 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 4 | $ 2.68 | 1986 to 1992 | |
| 26-2 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 4 | $ 1.63 | 1993 to 2001 | |
| 27 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | 1986 to 1992 | |
| 28 | 61142-94502 Grommet (NLA)
SKU: 61142-94502 Weight: 0.100000 Brand: Price: $ 3.20 |
Grommet (NLA) | 1 | $ 3.20 | ||
| 29 | 09250-09008 Plug
SKU: 09250-09008 Weight: 0.125000 Brand: Price: $ 1.55 |
Plug | 1 | $ 1.55 | ||
| 30 | 09250-10012 Cap (NLA)
SKU: 09250-10012 Weight: 0.060000 Brand: Price: $ 1.46 |
Cap (NLA) | 1 | $ 1.46 | ||
| 31 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 2 | $ 1.26 | ||
| 32 | 36656-94900 PTT Cable Grommet (NLA)
SKU: 36656-94900 Weight: 0.100000 Brand: Price: $ 4.08 |
PTT Cable Grommet (NLA) | 1 | $ 4.08 | ||
| 33 | 67271-94500 Remocon Cable Holder
SKU: 67271-94500 Weight: 0.080000 Brand: Price: $ 6.25 |
Remocon Cable Holder | 1 | $ 6.25 | ||
| 34 | 67276-94502 Remocon Cable Holder Plate (NLA)
SKU: 67276-94502 Weight: 0.060000 Brand: Price: $ 13.99 |
Remocon Cable Holder Plate (NLA) | 2 | $ 13.99 | ||
| 35 | 01421-06127 BOLT, STUD
SKU: 01421-06127 Weight: 0.200000 Brand: Price: $ 2.72 |
BOLT, STUD | 2 | $ 2.72 | ||
| 36 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.62 |
BOLTSTUD | 2 | $ 2.62 | ||
| 37 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 4 | $ 2.25 | ||
| 38 | 36656-94612 Cable Grommet (NLA)
SKU: 36656-94612 Weight: 0.100000 Brand: Price: $ 11.61 |
Cable Grommet (NLA) | 1 | $ 11.61 | ||
| 39 | 36661-95210 PTT Cable Cap (NLA)
SKU: 36661-95210 Weight: 0.100000 Brand: Price: $ 1.54 |
PTT Cable Cap (NLA) | 1 | $ 1.54 | ||
| 40 | 13851-95210 Cushion (NLA)
SKU: 13851-95210 Weight: 0.100000 Brand: Price: $ 4.79 |
Cushion (NLA) | 1 | $ 4.79 | L:585->82 | |
| 41 | 13851-95210 Cushion (NLA)
SKU: 13851-95210 Weight: 0.100000 Brand: Price: $ 4.79 |
Cushion (NLA) | 2 | $ 4.79 | L:585->30 | |
| 42 | 61240-94610-70G Lower Cover Decal Set (NLA)
SKU: 61240-94610-70G Weight: 0.060000 Brand: Price: $ 22.71 |
Lower Cover Decal Set (NLA) | 1 | $ 22.71 | For Gray | |
| 43 | 61231-94600-26G Port Lower Cover Decal (NLA)
SKU: 61231-94600-26G Weight: 0.100000 Brand: Price: $ 10.85 |
Port Lower Cover Decal (NLA) | 1 | $ 10.85 | 1986 to 1988 For Silver | |
| 44-1 | 61116-94601 Engine Cover Hook Bracket (NLA)
SKU: 61116-94601 Weight: 0.100000 Brand: Price: $ 16.69 |
Engine Cover Hook Bracket (NLA) | 1 | $ 16.69 | 1988 to 1994 | |
| 44-2 | 61116-94601 Engine Cover Hook Bracket (NLA)
SKU: 61116-94601 Weight: 0.100000 Brand: Price: $ 16.69 |
Engine Cover Hook Bracket (NLA) | 2 | $ 16.69 | 1995 to 2001 | |
| 45-1 | 09117-06046 Bolt (6x20) (NLA)
SKU: 09117-06046 Weight: 0.100000 Brand: Price: $ 1.40 |
Bolt (6x20) (NLA) | 2 | $ 1.40 | 1988 to 1994 | |
| 45-2 | 09117-06046 Bolt (6x20) (NLA)
SKU: 09117-06046 Weight: 0.100000 Brand: Price: $ 1.40 |
Bolt (6x20) (NLA) | 4 | $ 1.40 | 1995 to 1998 | |
| 45-3 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 4 | $ 3.10 | 1999 to 2001 | |
| 46 | 61610-95514 Fastener
SKU: 61610-95514 Weight: 0.060000 Brand: Price: $ 13.79 |
Fastener | 2 | $ 13.79 | 1988 to 2001 | |
| 47 | 01500-06127 BOLT
SKU: 01500-06127 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | 1988 to 1993 | |
| 48 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | 1994 to 2001 | |
| 49 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | 1988 to 1993 | |
| 50 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | 1988 to 1993 | |
| 51 | 37850-95612 PTT Switch Assembly
SKU: 37850-95612 Weight: 0.120000 Brand: Price: $ 104.20 |
PTT Switch Assembly | 1 | $ 104.20 | 1989 to 2001 | |
| 52 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | 1996 to 2001 | |
| 54 | 09250-20006 Cap
SKU: 09250-20006 Weight: 0.060000 Brand: Price: $ 2.20 |
Cap | 1 | $ 2.20 | 1989 to 2001 | |
| 55 | 37930-95612 Oil Warning Reset Switch Assembly
SKU: 37930-95612 Weight: 0.200000 Brand: Price: $ 36.86 |
Oil Warning Reset Switch Assembly | 1 | $ 36.86 | ||
| 56 | 37935-95602 Low Oil Warning Reset Label (NLA)
SKU: 37935-95602 Weight: 0.062500 Brand: Price: $ 1.83 |
Low Oil Warning Reset Label (NLA) | 1 | $ 1.83 | ||
| 57 | 17911-94611 Flush Connector Grommet (NLA)
SKU: 17911-94611 Weight: 0.060000 Brand: Price: $ 5.73 |
Flush Connector Grommet (NLA) | 1 | $ 5.73 | 1998 to 2001 | |
| 58 | 17912-94610 Flush Hose Connector
SKU: 17912-94610 Weight: 0.060000 Brand: Price: $ 7.82 |
Flush Hose Connector | 1 | $ 7.82 | 1998 to 2001 | |
| 59 | 17913-94610 Flush Connector Plug
SKU: 17913-94610 Weight: 0.060000 Brand: Price: $ 8.24 |
Flush Connector Plug | 1 | $ 8.24 | 1998 to 2001 | |
| 60 | 59291-94J00 O-Ring
SKU: 59291-94J00 Weight: 0.060000 Brand: Price: $ 3.77 |
O-Ring | 1 | $ 3.77 | 1998 to 2001 | |
| 61 | 09355-90145-600 Hose (9x14x600)
SKU: 09355-90145-600 Weight: 0.180000 Brand: Price: $ 12.60 |
Hose (9x14x600) | 1 | $ 12.60 | 1998 to 2001 | |
| 62 | 09401-13416 Clip (NLA)
SKU: 09401-13416 Weight: 0.100000 Brand: Price: $ 1.38 |
Clip (NLA) | 2 | $ 1.38 | 1998 to 2001 | |
| 64 | 17917-94600 Flush Water Connector
SKU: 17917-94600 Weight: 0.060000 Brand: Price: $ 9.89 |
Flush Water Connector | 1 | $ 9.89 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
