Suzuki DT 115 Parts Listings 1986 to 2001

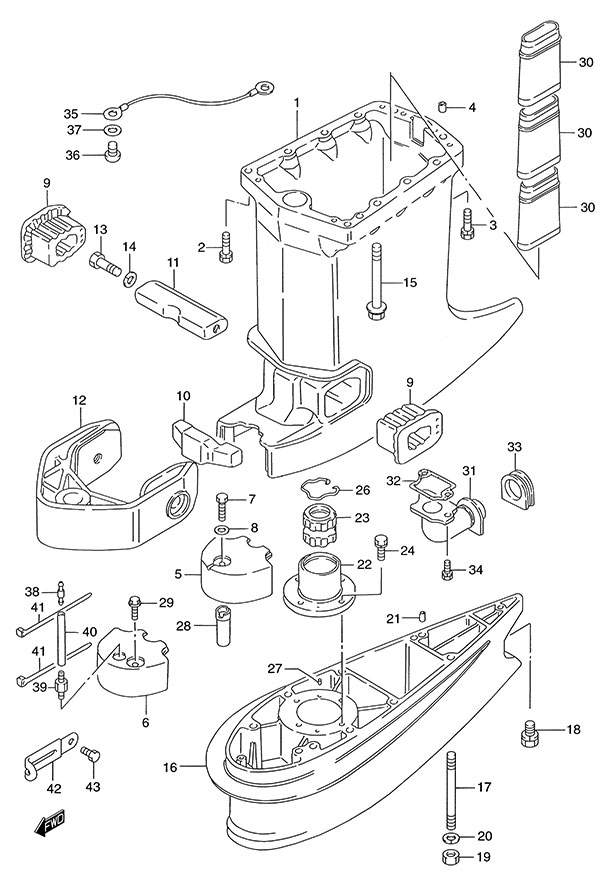

Fig. 44 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-94511-0ED Driveshaft Housing (NLA)
SKU: 52111-94511-0ED Weight: 10.000000 Brand: Price: $ 479.20 |
Driveshaft Housing (NLA) | 1 | $ 479.20 | ||
| 2 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 2 | $ 7.86 | ||
| 3 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 4 | $ 6.05 | ||
| 4 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 2 | $ 3.33 | ||
| 5 | 52121-94502-0ED Drive Shaft Housing Cover (NLA)
SKU: 52121-94502-0ED Weight: 0.220000 Brand: Price: $ 29.57 |
Drive Shaft Housing Cover (NLA) | 1 | $ 29.57 | S/N 709842 Older | |
| 6 | 52121-94520-0ED Drive Shaft Housing Cover (NLA)
SKU: 52121-94520-0ED Weight: 0.200000 Brand: Price: $ 28.31 |
Drive Shaft Housing Cover (NLA) | 1 | $ 28.31 | S/N 709843 Newer | |
| 7 | 01550-06657 BOLT
SKU: 01550-06657 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 1 | $ 3.61 | S/N 709842 Older | |
| 8 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 9-1 | 54161-94503 Lower Mount (NLA)
SKU: 54161-94503 Weight: 1.000000 Brand: Price: $ 12.53 |
Lower Mount (NLA) | 2 | $ 12.53 | ||
| 9-2 | 54161-94510 Lower Mount (NLA)
SKU: 54161-94510 Weight: 1.000000 Brand: Price: $ 12.53 |
Lower Mount (NLA) | 2 | $ 12.53 | DT115S | |
| 9-3 | 54161-94510 Lower Mount (NLA)
SKU: 54161-94510 Weight: 1.000000 Brand: Price: $ 12.53 |
Lower Mount (NLA) | 2 | $ 12.53 | Opt: Hard Type | |
| 10-1 | 54165-94504 Lower Thrust Mount (NLA)
SKU: 54165-94504 Weight: 0.100000 Brand: Price: $ 10.41 |
Lower Thrust Mount (NLA) | 1 | $ 10.41 | ||
| 10-2 | 54165-94510 Lower Thrust Mount (NLA)
SKU: 54165-94510 Weight: 0.100000 Brand: Price: $ 11.12 |
Lower Thrust Mount (NLA) | 1 | $ 11.12 | Opt: Hard Type | |
| 11 | 54166-94501 Lower Mount Stopper (NLA)
SKU: 54166-94501 Weight: 0.100000 Brand: Price: $ 30.57 |
Lower Mount Stopper (NLA) | 1 | $ 30.57 | ||
| 12 | 54211-94510-0ED Lower Mounting Bracket (NLA)
SKU: 54211-94510-0ED Weight: 10.000000 Brand: Price: $ 119.78 |
Lower Mounting Bracket (NLA) | 1 | $ 119.78 | ||
| 13 | 09104-14002 Bolt (14x55) (NLA)
SKU: 09104-14002 Weight: 0.100000 Brand: Price: $ 6.13 |
Bolt (14x55) (NLA) | 2 | $ 6.13 | ||
| 14 | 09162-14004 Lock Washer (NLA)
SKU: 09162-14004 Weight: 0.100000 Brand: Price: $ 1.65 |
Lock Washer (NLA) | 2 | $ 1.65 | ||
| 15 | 09118-10039 Bolt (10x130)
SKU: 09118-10039 Weight: 0.200000 Brand: Price: $ 14.14 |
Bolt (10x130) | 8 | $ 14.14 | ||
| 16 | 52131-94511-0ED Extension Case (X) (NLA)
SKU: 52131-94511-0ED Weight: 0.100000 Brand: Price: $ 608.91 |
Extension Case (X) (NLA) | 1 | $ 608.91 | ||
| 17 | 09108-10117 Stud Bolt (NLA)
SKU: 09108-10117 Weight: 0.100000 Brand: Price: $ 17.99 |
Stud Bolt (NLA) | 8 | $ 17.99 | ||
| 18 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 1 | $ 6.81 | ||
| 19 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 8 | $ 2.04 | ||
| 20 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 8 | $ 1.86 | ||
| 21 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 2 | $ 3.33 | ||
| 22 | 52161-94500 Bushing Housing (NLA)
SKU: 52161-94500 Weight: 0.100000 Brand: Price: $ 33.32 |
Bushing Housing (NLA) | 1 | $ 33.32 | ||
| 23 | 57130-94501 Drive Shaft Bushing
SKU: 57130-94501 Weight: 0.250000 Brand: Price: $ 59.33 |
Drive Shaft Bushing | 1 | $ 59.33 | ||
| 24 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 4 | $ 5.05 | ||
| 26 | 09387-45001 Set Ring (SUS)
SKU: 09387-45001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 27 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 28 | 52122-94500 Cover Spacer (NLA)
SKU: 52122-94500 Weight: 0.100000 Brand: Price: $ 2.41 |
Cover Spacer (NLA) | 1 | $ 2.41 | S/N 709842 Older | |
| 29 | 09103-06118 Bolt (6x60)
SKU: 09103-06118 Weight: 0.060000 Brand: Price: $ 2.41 |
Bolt (6x60) | 1 | $ 2.41 | S/N 709843 Newer | |
| 30 | 52181-94500 Over Flow Tube (NLA)
SKU: 52181-94500 Weight: 0.100000 Brand: Price: $ 5.18 |
Over Flow Tube (NLA) | 3 | $ 5.18 | ||
| 31 | 52190-94500 Water Outlet Tube (NLA)
SKU: 52190-94500 Weight: 0.100000 Brand: Price: $ 34.86 |
Water Outlet Tube (NLA) | 1 | $ 34.86 | ||
| 32 | 52194-94510 Water Outlet Tube Gasket
SKU: 52194-94510 Weight: 0.062500 Brand: Price: $ 4.84 |
Water Outlet Tube Gasket | 1 | $ 4.84 | ||
| 33 | 52195-94500 Water Outlet Tube Grommet
SKU: 52195-94500 Weight: 0.100000 Brand: Price: $ 7.16 |
Water Outlet Tube Grommet | 1 | $ 7.16 | ||
| 34 | 09117-06038 Bolt (6x16) (NLA)
SKU: 09117-06038 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt (6x16) (NLA) | 2 | $ 1.51 | ||
| 35 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 36 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 37 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 38 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | S/N 709843 Newer | |
| 39 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | S/N 709843 Newer | |
| 40-1 | 09355-40805-600 Hose (4x8x600)
SKU: 09355-40805-600 Weight: 0.250000 Brand: Price: $ 9.81 |
Hose (4x8x600) | 1 | $ 9.81 | Type: L L:600->70 S/N 709843 Newer | |
| 40-2 | 09355-40805-600 Hose (4x8x600)
SKU: 09355-40805-600 Weight: 0.250000 Brand: Price: $ 9.81 |
Hose (4x8x600) | 1 | $ 9.81 | Type: X L:600->210 S/N 709843 Newer | |
| 40-3 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->900 1996 to 2001 | |
| 41 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | S/N 709843 Newer | |
| 43 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
