Suzuki DT 115 Parts Listings 1986 to 2001

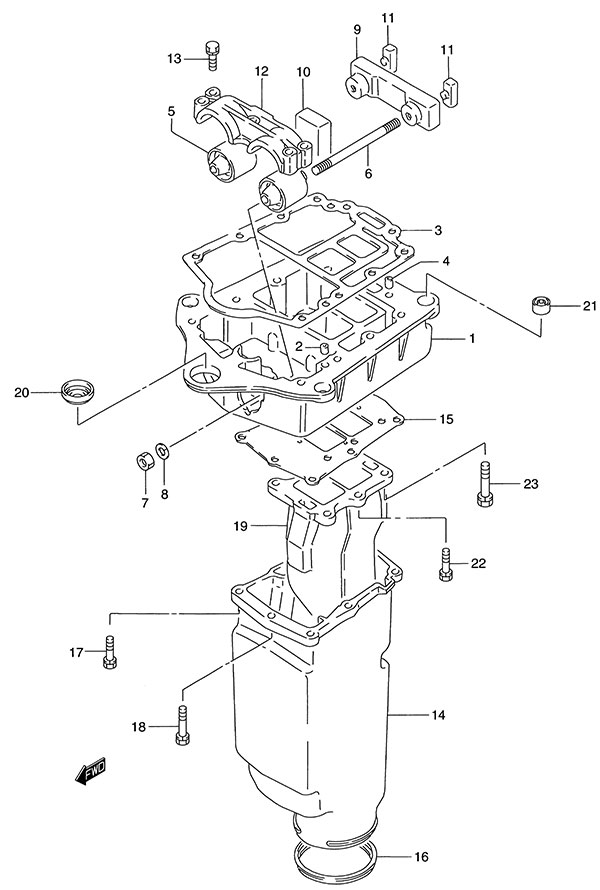

Fig. 43 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51111-94510-0ED Engine Holder
SKU: 51111-94510-0ED Weight: 9.500000 Brand: Price: $ 419.52 |
Engine Holder | 1 | $ 419.52 | ||
| 2 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 2 | $ 3.33 | ||
| 3 | 51211-94530 Engine Holder Gasket (NLA)
SKU: 51211-94530 Weight: 0.180000 Brand: Price: $ 43.08 |
Engine Holder Gasket (NLA) | 1 | $ 43.08 | ||
| 4 | 09206-13017 Pin (13x20)
SKU: 09206-13017 Weight: 0.125000 Brand: Price: $ 7.73 |
Pin (13x20) | 2 | $ 7.73 | ||
| 5-1 | 54130-94501 Upper Mount
SKU: 54130-94501 Weight: 1.000000 Brand: Price: $ 62.09 |
Upper Mount | 2 | $ 62.09 | ||
| 5-2 | 54130-94511 Upper Mount (NLA)
SKU: 54130-94511 Weight: 1.000000 Brand: Price: $ 89.44 |
Upper Mount (NLA) | 2 | $ 89.44 | DT115S | |
| 5-3 | 54130-94511 Upper Mount (NLA)
SKU: 54130-94511 Weight: 1.000000 Brand: Price: $ 89.44 |
Upper Mount (NLA) | 2 | $ 89.44 | Opt: Hard Type | |
| 6 | 09108-12002 Stud Bolt
SKU: 09108-12002 Weight: 0.250000 Brand: Price: $ 18.78 |
Stud Bolt | 2 | $ 18.78 | ||
| 7 | 09140-12029 Nut
SKU: 09140-12029 Weight: 0.060000 Brand: Price: $ 3.08 |
Nut | 2 | $ 3.08 | ||
| 8 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 2 | $ 2.06 | ||
| 9 | 54136-94503 Upper Mount Stopper (NLA)
SKU: 54136-94503 Weight: 0.500000 Brand: Price: $ 41.07 |
Upper Mount Stopper (NLA) | 1 | $ 41.07 | ||
| 10-1 | 54141-94501 Upper Front Mount
SKU: 54141-94501 Weight: 0.200000 Brand: Price: $ 9.02 |
Upper Front Mount | 1 | $ 9.02 | ||
| 10-2 | 54141-94510 Upper Front Mount (NLA)
SKU: 54141-94510 Weight: 0.100000 Brand: Price: $ 5.65 |
Upper Front Mount (NLA) | 1 | $ 5.65 | DT115S | |
| 10-3 | 54141-94510 Upper Front Mount (NLA)
SKU: 54141-94510 Weight: 0.100000 Brand: Price: $ 5.65 |
Upper Front Mount (NLA) | 1 | $ 5.65 | Opt: Hard Type | |
| 11-1 | 54142-94502 Upper Rear Mount (NLA)
SKU: 54142-94502 Weight: 0.100000 Brand: Price: $ 2.62 |
Upper Rear Mount (NLA) | 2 | $ 2.62 | ||
| 11-2 | 54142-94510 Upper Rear Mount (NLA)
SKU: 54142-94510 Weight: 0.100000 Brand: Price: $ 2.43 |
Upper Rear Mount (NLA) | 2 | $ 2.43 | DT115S | |
| 11-3 | 54142-94510 Upper Rear Mount (NLA)
SKU: 54142-94510 Weight: 0.100000 Brand: Price: $ 2.43 |
Upper Rear Mount (NLA) | 2 | $ 2.43 | Opt: Hard Type | |
| 12 | 51112-94502 Upper Mount Cover (NLA)
SKU: 51112-94502 Weight: 0.800000 Brand: Price: $ 51.88 |
Upper Mount Cover (NLA) | 1 | $ 51.88 | ||
| 13 | 09117-08038 Bolt (8x45)
SKU: 09117-08038 Weight: 0.060000 Brand: Price: $ 5.64 |
Bolt (8x45) | 5 | $ 5.64 | ||
| 14 | 52171-94510 Exhaust Housing
SKU: 52171-94510 Weight: 5.000000 Brand: Price: $ 206.83 |
Exhaust Housing | 1 | $ 206.83 | ||
| 15 | 52172-94541 Exhaust Housing Gasket
SKU: 52172-94541 Weight: 0.180000 Brand: Price: $ 33.76 |
Exhaust Housing Gasket | 1 | $ 33.76 | ||
| 16 | 52173-94502 Exhaust Housing Seal
SKU: 52173-94502 Weight: 0.080000 Brand: Price: $ 16.26 |
Exhaust Housing Seal | 1 | $ 16.26 | ||
| 17 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 6 | $ 3.08 | ||
| 18 | 09117-06032 Bolt (6x30)
SKU: 09117-06032 Weight: 0.060000 Brand: Price: $ 3.21 |
Bolt (6x30) | 1 | $ 3.21 | ||
| 19-1 | 14211-94612 Exhaust Tube
SKU: 14211-94612 Weight: 3.600000 Brand: Price: $ 136.43 |
Exhaust Tube | 1 | $ 136.43 | ||
| 19-2 | 14211-94900 Exhaust Tube (NLA)
SKU: 14211-94900 Weight: 0.100000 Brand: Price: $ 75.82 |
Exhaust Tube (NLA) | 1 | $ 75.82 | DT115S | |
| 20 | 09284-08004 Seal (NLA)
SKU: 09284-08004 Weight: 0.062500 Brand: Price: $ 5.47 |
Seal (NLA) | 1 | $ 5.47 | ||
| 21 | 09319-08043 Bushing (NLA)
SKU: 09319-08043 Weight: 0.200000 Brand: Price: $ 10.98 |
Bushing (NLA) | 4 | $ 10.98 | ||
| 22 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 2 | $ 3.08 | ||
| 23 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 4 | $ 5.05 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
