Suzuki DT 115 Parts Listings 1996 to 2001

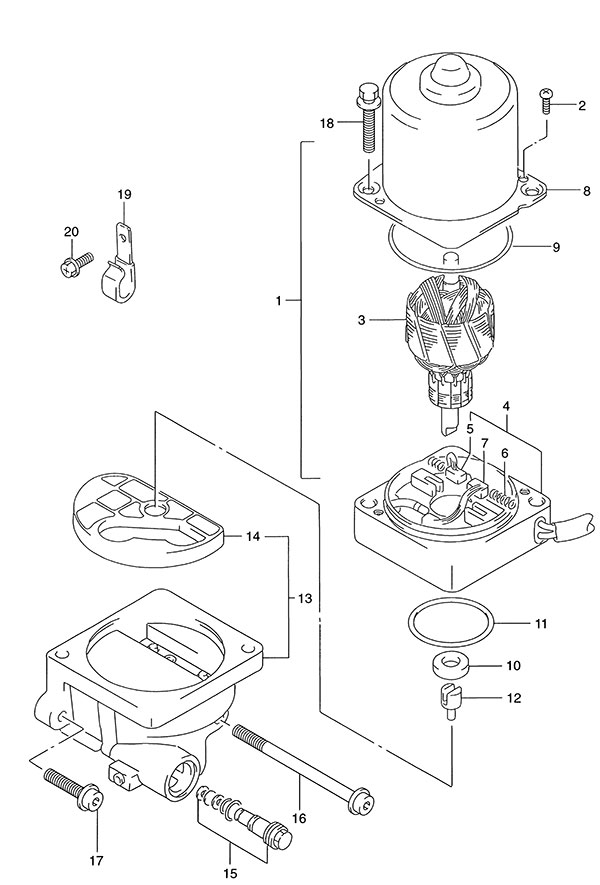

Fig. 40 - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-94900-0ED PTT Motor Assembly (NLA)
SKU: 38100-94900-0ED Weight: 5.000000 Brand: Price: $ 768.46 |
PTT Motor Assembly (NLA) | 1 | $ 768.46 | ||
| 2 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.39 |
Yoke Screw | 2 | $ 4.39 | ||
| 3 | 31311-94900 Armature (NLA)
SKU: 31311-94900 Weight: 5.000000 Brand: Price: $ 311.55 |
Armature (NLA) | 1 | $ 311.55 | ||
| 4 | 31173-94920 Brush Holder Assembly
SKU: 31173-94920 Weight: 1.000000 Brand: Price: $ 339.85 |
Brush Holder Assembly | 1 | $ 339.85 | ||
| 5 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 6 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 7 | 31136-94900 Breaker (NLA)
SKU: 31136-94900 Weight: 0.060000 Brand: Price: $ 64.19 |
Breaker (NLA) | 1 | $ 64.19 | ||
| 8 | 31110-94900 Yoke Assembly (NLA)
SKU: 31110-94900 Weight: 1.000000 Brand: Price: $ 316.37 |
Yoke Assembly (NLA) | 1 | $ 316.37 | ||
| 9 | 31123-87D60 O-Ring
SKU: 31123-87D60 Weight: 0.060000 Brand: Price: $ 12.85 |
O-Ring | 1 | $ 12.85 | ||
| 10 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 11 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 12 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 13 | 48502-94901 PTT Pump Assembly
SKU: 48502-94901 Weight: 1.500000 Brand: Price: $ 449.36 |
PTT Pump Assembly | 1 | $ 449.36 | ||
| 14 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 15-1 | 48864-94910 Manual Valve Set (NLA)
SKU: 48864-94910 Weight: 0.250000 Brand: Price: $ 103.63 |
Manual Valve Set (NLA) | 1 | $ 103.63 | ||
| 15-2 | 48864-94911 Manual Valve Set
SKU: 48864-94911 Weight: 0.250000 Brand: Price: $ 140.40 |
Manual Valve Set | 1 | $ 140.40 | 1999 to 2001 | |
| 16 | 48862-95E00 Bolt
SKU: 48862-95E00 Weight: 0.100000 Brand: Price: $ 11.40 |
Bolt | 1 | $ 11.40 | ||
| 17 | 48862-95E10 Bolt
SKU: 48862-95E10 Weight: 0.060000 Brand: Price: $ 13.20 |
Bolt | 2 | $ 13.20 | ||
| 18 | 31281-95E00 Through Bolt
SKU: 31281-95E00 Weight: 0.060000 Brand: Price: $ 8.95 |
Through Bolt | 4 | $ 8.95 | ||
| 19 | 09403-17304 Clamp
SKU: 09403-17304 Weight: 0.100000 Brand: Price: $ 3.11 |
Clamp | 1 | $ 3.11 | ||
| 20 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
