Suzuki DT 115 Parts Listings 1986 to 1989

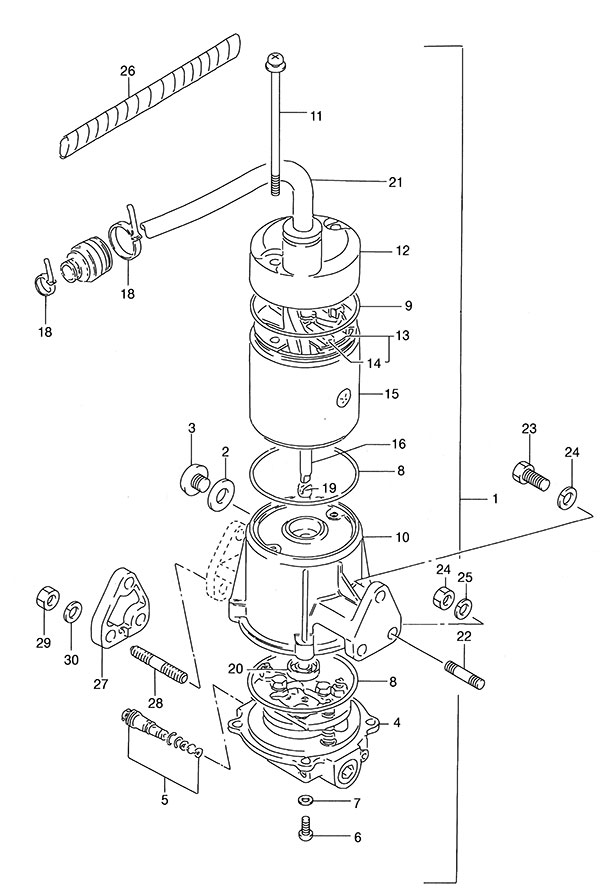

Fig. 38 - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 48500-94620-0ED Power Trim Power Unit Assembly (NLA)
SKU: 48500-94620-0ED Weight: 8.000000 Brand: Price: $ 1,881.86 |
Power Trim Power Unit Assembly (NLA) | 1 | $ 1,881.86 | Requires Ref# 31 32 | |
| 1-2 | 48500-94690-0ED Power Trim Power Unit Assembly (NLA)
SKU: 48500-94690-0ED Weight: 10.000000 Brand: Price: $ 1,881.86 |
Power Trim Power Unit Assembly (NLA) | 1 | $ 1,881.86 | Opt: Port Side Requires Ref# 31 32 | |
| 2 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 3 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 4 | 48502-94530 Pump & Valve Body (NLA)
SKU: 48502-94530 Weight: 2.000000 Brand: Price: $ 1,043.54 |
Pump & Valve Body (NLA) | 1 | $ 1,043.54 | ||
| 5 | 48550-94600 Manual Valve Release
SKU: 48550-94600 Weight: 0.125000 Brand: Price: $ 52.95 |
Manual Valve Release | 1 | $ 52.95 | ||
| 6 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 4 | $ 1.97 | ||
| 7 | 48592-94500 Washer (NLA)
SKU: 48592-94500 Weight: 0.100000 Brand: Price: $ 2.19 |
Washer (NLA) | 4 | $ 2.19 | ||
| 8 | 48585-94520 Valve Body O-Ring
SKU: 48585-94520 Weight: 0.060000 Brand: Price: $ 5.34 |
Valve Body O-Ring | 1 | $ 5.34 | ||
| 9 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 2 | $ 6.34 | ||
| 10 | 48570-94600-0ED Reservoir Assembly (NLA)
SKU: 48570-94600-0ED Weight: 0.100000 Brand: Price: $ 133.59 |
Reservoir Assembly (NLA) | 1 | $ 133.59 | ||
| 11 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 12 | 31170-94520-0ED Upper Cover (NLA)
SKU: 31170-94520-0ED Weight: 0.100000 Brand: Price: $ 92.83 |
Upper Cover (NLA) | 1 | $ 92.83 | ||
| 13 | 31173-94521 Brush Holder Assembly (NLA)
SKU: 31173-94521 Weight: 0.100000 Brand: Price: $ 91.06 |
Brush Holder Assembly (NLA) | 1 | $ 91.06 | ||
| 14 | 31133-94521 Brush (NLA)
SKU: 31133-94521 Weight: 0.060000 Brand: Price: $ 12.52 |
Brush (NLA) | 2 | $ 12.52 | ||
| 15 | 31110-94520-0ED Yoke Assembly (NLA)
SKU: 31110-94520-0ED Weight: 0.100000 Brand: Price: $ 190.13 |
Yoke Assembly (NLA) | 1 | $ 190.13 | ||
| 16 | 31311-94600 Armature (NLA)
SKU: 31311-94600 Weight: 1.100000 Brand: Price: $ 319.74 |
Armature (NLA) | 1 | $ 319.74 | ||
| 18 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 19 | 48583-94520 Drive Joint
SKU: 48583-94520 Weight: 0.060000 Brand: Price: $ 16.56 |
Drive Joint | 1 | $ 16.56 | ||
| 20 | 09282-08003 Oil Seal (NLA)
SKU: 09282-08003 Weight: 0.060000 Brand: Price: $ 36.47 |
Oil Seal (NLA) | 1 | $ 36.47 | ||
| 21 | 33861-95600 PTT Cable (NLA)
SKU: 33861-95600 Weight: 0.100000 Brand: Price: $ 98.29 |
PTT Cable (NLA) | 1 | $ 98.29 | L:1000 | |
| 22 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | ||
| 23 | 09100-08219 Bolt (8x20) (NLA)
SKU: 09100-08219 Weight: 0.060000 Brand: Price: $ 2.27 |
Bolt (8x20) (NLA) | 1 | $ 2.27 | ||
| 24 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 25 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | ||
| 26 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 27 | 48131-95200 Power Unit Spacer (NLA)
SKU: 48131-95200 Weight: 0.100000 Brand: Price: $ 3.95 |
Power Unit Spacer (NLA) | 1 | $ 3.95 | Opt: Port Side | |
| 28 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 3 | $ 5.23 | Opt: Port Side | |
| 29 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | Opt: Port Side | |
| 30 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | Opt: Port Side | |
| 31 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 2 | $ 140.10 | Not Shown | |
| 32 | 33832-94601 Trim Cable Assembly (NLA)
SKU: 33832-94601 Weight: 0.100000 Brand: Price: $ 12.35 |
Trim Cable Assembly (NLA) | 1 | $ 12.35 | Not Shown |
