Suzuki DT 115 Parts Listings 1996 to 2001

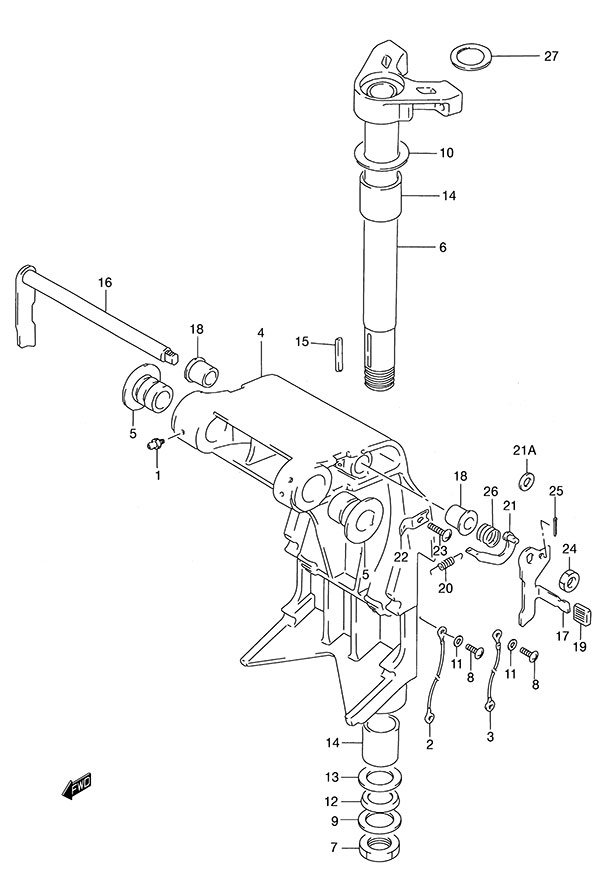

Fig. 36 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 5 | $ 3.36 | ||
| 2 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 3 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 4 | 43111-94901-0ED Swivel Bracket (NLA)
SKU: 43111-94901-0ED Weight: 10.000000 Brand: Price: $ 400.11 |
Swivel Bracket (NLA) | 1 | $ 400.11 | ||
| 5 | 43211-95510 Bushing (NLA)
SKU: 43211-95510 Weight: 0.060000 Brand: Price: $ 7.24 |
Bushing (NLA) | 2 | $ 7.24 | ||
| 6 | 43740-94505-0ED Pilot Shaft (NLA)
SKU: 43740-94505-0ED Weight: 0.100000 Brand: Price: $ 216.19 |
Pilot Shaft (NLA) | 1 | $ 216.19 | ||
| 7 | 09140-33002 Nut (NLA)
SKU: 09140-33002 Weight: 0.100000 Brand: Price: $ 7.76 |
Nut (NLA) | 1 | $ 7.76 | ||
| 8 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | ||
| 9 | 09160-33002 Lower Washer (NLA)
SKU: 09160-33002 Weight: 0.100000 Brand: Price: $ 4.81 |
Lower Washer (NLA) | 1 | $ 4.81 | ||
| 10 | 09160-36004 Upper Washer (NLA)
SKU: 09160-36004 Weight: 0.100000 Brand: Price: $ 3.09 |
Upper Washer (NLA) | 1 | $ 3.09 | ||
| 11 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 3 | $ 2.90 | ||
| 12 | 09166-33002 Washer (NLA)
SKU: 09166-33002 Weight: 0.100000 Brand: Price: $ 3.80 |
Washer (NLA) | 1 | $ 3.80 | ||
| 13 | 09181-36005 Shim (0.3) (NLA)
SKU: 09181-36005 Weight: 0.100000 Brand: Price: $ 1.76 |
Shim (0.3) (NLA) | 4 | $ 1.76 | ||
| 14 | 09306-36002 Bushing (NLA)
SKU: 09306-36002 Weight: 0.100000 Brand: Price: $ 3.25 |
Bushing (NLA) | 2 | $ 3.25 | ||
| 15 | 09421-05006 Key (NLA)
SKU: 09421-05006 Weight: 0.100000 Brand: Price: $ 3.65 |
Key (NLA) | 1 | $ 3.65 | ||
| 16 | 41220-95E13 Starboard Tilt Lock Lever
SKU: 41220-95E13 Weight: 0.250000 Brand: Price: $ 145.83 |
Starboard Tilt Lock Lever | 1 | $ 145.83 | ||
| 17 | 41221-95E40 Port Tilt Lock Lever
SKU: 41221-95E40 Weight: 0.250000 Brand: Price: $ 36.22 |
Port Tilt Lock Lever | 1 | $ 36.22 | ||
| 18 | 41224-95E01 Tilt Stopper Rod Bushing
SKU: 41224-95E01 Weight: 0.060000 Brand: Price: $ 4.62 |
Tilt Stopper Rod Bushing | 2 | $ 4.62 | ||
| 19 | 41225-94400 Tilt Lock Arm Rubber
SKU: 41225-94400 Weight: 0.060000 Brand: Price: $ 2.88 |
Tilt Lock Arm Rubber | 1 | $ 2.88 | ||
| 20 | 41228-95E00 Tilt Lock Lever Spring (NLA)
SKU: 41228-95E00 Weight: 0.100000 Brand: Price: $ 3.99 |
Tilt Lock Lever Spring (NLA) | 1 | $ 3.99 | ||
| 21 | 41230-95E00 Tilt Lock Lever Link
SKU: 41230-95E00 Weight: 0.125000 Brand: Price: $ 23.62 |
Tilt Lock Lever Link | 1 | $ 23.62 | ||
| 21A | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 22 | 41233-95E10 Tilt Lock Spring Bracket
SKU: 41233-95E10 Weight: 0.060000 Brand: Price: $ 10.26 |
Tilt Lock Spring Bracket | 1 | $ 10.26 | ||
| 23 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 24 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 25 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 26 | 09440-19028 Spring
SKU: 09440-19028 Weight: 0.060000 Brand: Price: $ 3.46 |
Spring | 1 | $ 3.46 | ||
| 27 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
