Suzuki DT 115 Parts Listings 1996 to 2001

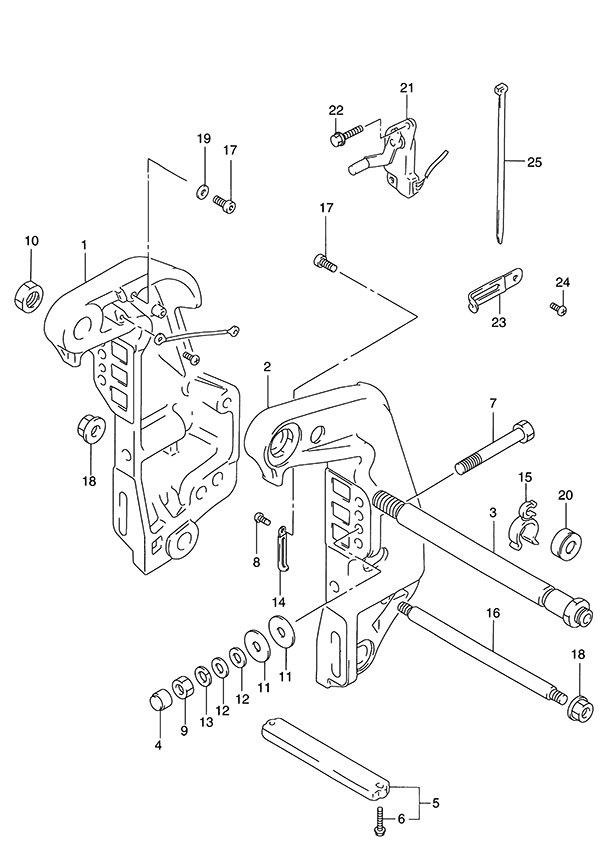

Fig. 34 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-95E03-0ED Starboard Clamp Bracket
SKU: 41111-95E03-0ED Weight: 10.000000 Brand: Price: $ 310.94 |
Starboard Clamp Bracket | 1 | $ 310.94 | 1996 | |
| 1-2 | 41111-94901-0ED Starboard Clamp Bracket (NLA)
SKU: 41111-94901-0ED Weight: 10.000000 Brand: Price: $ 322.67 |
Starboard Clamp Bracket (NLA) | 1 | $ 322.67 | DT115 1997 DT115S 1996 to 2001 | |
| 2-1 | 41121-95E05-0ED Port Clamp Bracket (NLA)
SKU: 41121-95E05-0ED Weight: 0.100000 Brand: Price: $ 170.65 |
Port Clamp Bracket (NLA) | 1 | $ 170.65 | 1996 | |
| 2-2 | 41121-94901-0ED Port Clamp Bracket (NLA)
SKU: 41121-94901-0ED Weight: 10.000000 Brand: Price: $ 322.67 |
Port Clamp Bracket (NLA) | 1 | $ 322.67 | DT115 1997 DT115S 1996 to 2001 | |
| 3 | 41130-95541 Clamp Bracket Shaft
SKU: 41130-95541 Weight: 2.000000 Brand: Price: $ 408.05 |
Clamp Bracket Shaft | 1 | $ 408.05 | ||
| 4 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 5 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 6 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 7 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 26 | |
| 8 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 9 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 10 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 11 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 12 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
| 13 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 14 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 15 | 09408-00113 Clamp (NLA)
SKU: 09408-00113 Weight: 0.100000 Brand: Price: $ 3.28 |
Clamp (NLA) | 1 | $ 3.28 | ||
| 16 | 45421-87D03 Tilt Lock Pin
SKU: 45421-87D03 Weight: 0.750000 Brand: Price: $ 23.88 |
Tilt Lock Pin | 1 | $ 23.88 | ||
| 17 | 09106-10065 Bolt (10x20)
SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
| 18 | 09159-14020 Nut (14mm)
SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | ||
| 19 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 20 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | ||
| 21 | 34801-94720 Trim Sender (NLA)
SKU: 34801-94720 Weight: 0.800000 Brand: Price: $ 220.52 |
Trim Sender (NLA) | 1 | $ 220.52 | ||
| 22 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 23 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 24 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 25 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 26 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
