Suzuki DT 115 Parts Listings 1986 to 2001

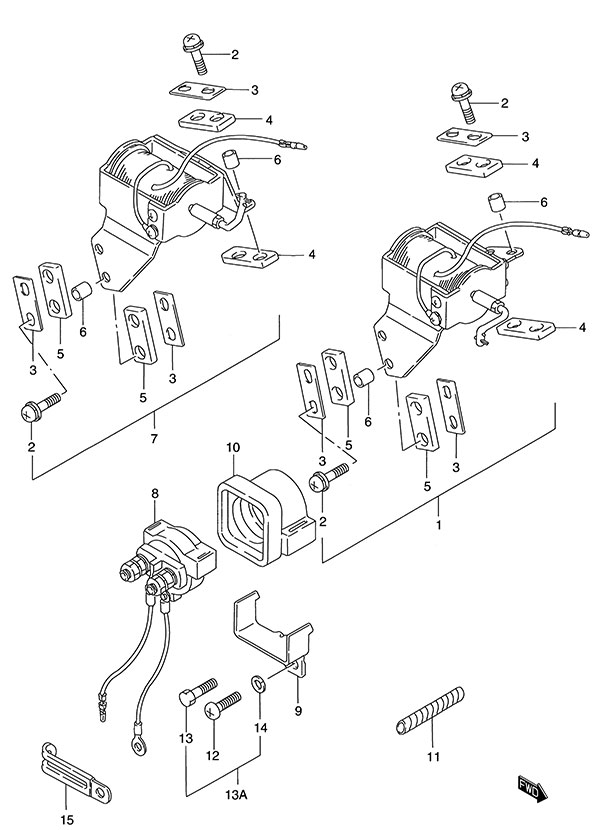

Fig. 32 - Solenoid
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38600-94810 Choke Solenoid Assembly (NLA)
SKU: 38600-94810 Weight: 1.180000 Brand: Price: $ 178.43 |
Choke Solenoid Assembly (NLA) | 1 | $ 178.43 | ||
| 2 | 02112-75207 SCREW
SKU: 02112-75207 Weight: 0.100000 Brand: Price: $ 2.88 |
SCREW | 4 | $ 2.88 | ||
| 3 | 38617-94600 Choke Solenoid Plate (NLA)
SKU: 38617-94600 Weight: 0.100000 Brand: Price: $ 3.59 |
Choke Solenoid Plate (NLA) | 3 | $ 3.59 | ||
| 4 | 38615-94600 Choke Solenoid Cushion (NLA)
SKU: 38615-94600 Weight: 0.100000 Brand: Price: $ 2.59 |
Choke Solenoid Cushion (NLA) | 2 | $ 2.59 | ||
| 5 | 38616-94600 Choke Solenoid Cushion (NLA)
SKU: 38616-94600 Weight: 0.100000 Brand: Price: $ 2.77 |
Choke Solenoid Cushion (NLA) | 2 | $ 2.77 | ||
| 6 | 09180-06248 Spacer
SKU: 09180-06248 Weight: 0.060000 Brand: Price: $ 2.12 |
Spacer | 4 | $ 2.12 | ||
| 8 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | ||
| 9 | 38412-94500 PTT Bracket (NLA)
SKU: 38412-94500 Weight: 0.100000 Brand: Price: $ 3.06 |
PTT Bracket (NLA) | 1 | $ 3.06 | ||
| 10 | 38422-94520 Relay Damper (NLA)
SKU: 38422-94520 Weight: 0.250000 Brand: Price: $ 11.22 |
Relay Damper (NLA) | 1 | $ 11.22 | ||
| 11 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 12 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 1 | $ 1.44 | 1986 to 1989 | |
| 13 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | 1990 to 1993 | |
| 13A | 01580-06167 BOLT
SKU: 01580-06167 Weight: 0.100000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 | 1994 to 1997 | |
| 14 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | 1986 to 1993 | |
| 15 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
