Suzuki DT 115S Parts Listings 1996 to 2001

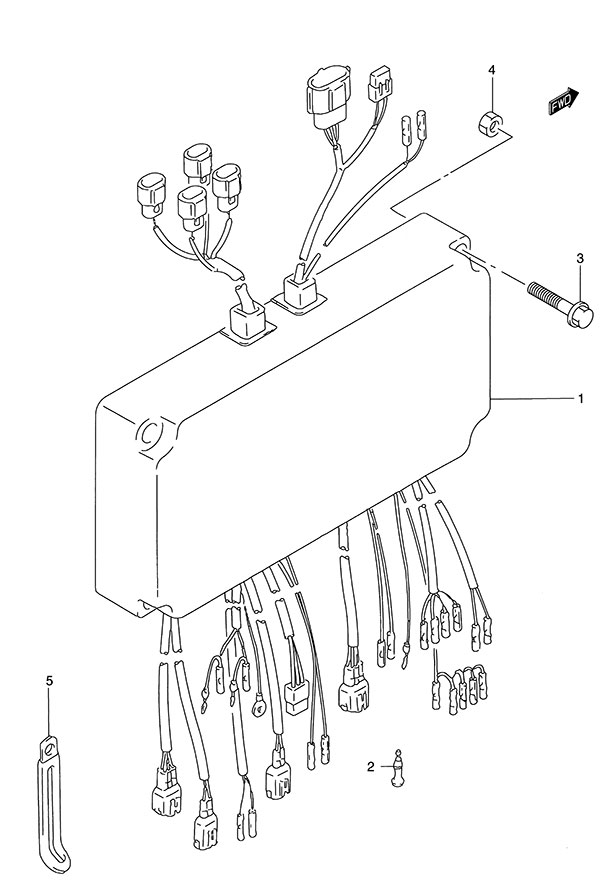

Fig. 31 - Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 33920-94601 Engine Control Unit
SKU: 33920-94601 Weight: 2.000000 Brand: Price: $ 3,062.08 |
Engine Control Unit | 1 | $ 3,062.08 | 1996 to 1999 | |
| 1-2 | 33920-94630 Engine Control Unit (NLA)
SKU: 33920-94630 Weight: 2.000000 Brand: Price: $ 1,641.55 |
Engine Control Unit (NLA) | 1 | $ 1,641.55 | 2000 to 2001 | |
| 2 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 3 | 01550-0640A BOLT
SKU: 01550-0640A Weight: 0.200000 Brand: Price: $ 2.43 |
BOLT | 4 | $ 2.43 | ||
| 4 | 08310-0006A Nut
SKU: 08310-0006A Weight: 0.100000 Brand: Price: $ 1.85 |
Nut | 4 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
