Suzuki DT 115S Parts Listings 1996 to 2001

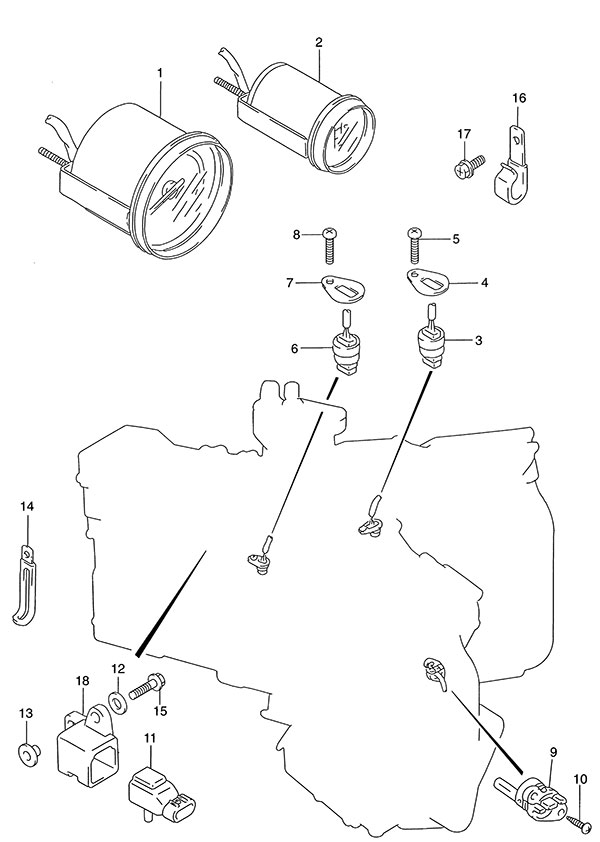

Fig. 30 - Sensor & Meter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34200-92E02 Tachometer (NLA)
SKU: 34200-92E02 Weight: 1.000000 Brand: Price: $ 116.95 |
Tachometer (NLA) | 1 | $ 116.95 | ||
| 2 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | ||
| 3 | 34830-92E00 Temp Sensor
SKU: 34830-92E00 Weight: 0.060000 Brand: Price: $ 50.06 |
Temp Sensor | 1 | $ 50.06 | Cylinder | |
| 4 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | ||
| 5 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 1 | $ 2.09 | ||
| 6 | 34830-94600 Air Temp Sensor (NLA)
SKU: 34830-94600 Weight: 0.060000 Brand: Price: $ 50.55 |
Air Temp Sensor (NLA) | 1 | $ 50.55 | 1996 to 1999 | |
| 7 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | 1996 to 1999 | |
| 8 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 1 | $ 2.09 | 1996 to 1999 | |
| 9 | 34876-92E00 Water Sensor Hole Plug
SKU: 34876-92E00 Weight: 0.060000 Brand: Price: $ 12.63 |
Water Sensor Hole Plug | 1 | $ 12.63 | ||
| 10 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 2 | $ 2.49 | ||
| 11-1 | 18590-94600 MAP Sensor
SKU: 18590-94600 Weight: 0.100000 Brand: Price: $ 307.60 |
MAP Sensor | 1 | $ 307.60 | ||
| 11-2 | 18590-53A01 MAP Sensor (NLA)
SKU: 18590-53A01 Weight: 0.200000 Brand: Price: $ 242.35 |
MAP Sensor (NLA) | 1 | $ 242.35 | Optional 1996 | |
| 12-1 | 09160-06052 Washer
SKU: 09160-06052 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 1 | $ 1.44 | ||
| 12-2 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | Optional | |
| 13 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 1 | $ 2.52 | ||
| 15 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 1 | $ 1.49 | ||
| 16 | 09403-17304 Clamp
SKU: 09403-17304 Weight: 0.100000 Brand: Price: $ 3.11 |
Clamp | 1 | $ 3.11 | ||
| 17 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 17 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 18-1 | 34881-94600 Air Pressure Sensor Bracket (NLA)
SKU: 34881-94600 Weight: 0.100000 Brand: Price: $ 6.78 |
Air Pressure Sensor Bracket (NLA) | 1 | $ 6.78 | ||
| 18-2 | 34881-92E00 Air Pressure Sensor Bracket (NLA)
SKU: 34881-92E00 Weight: 0.100000 Brand: Price: $ 12.68 |
Air Pressure Sensor Bracket (NLA) | 1 | $ 12.68 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
