Suzuki DT 115 Parts Listings 1986 to 2000

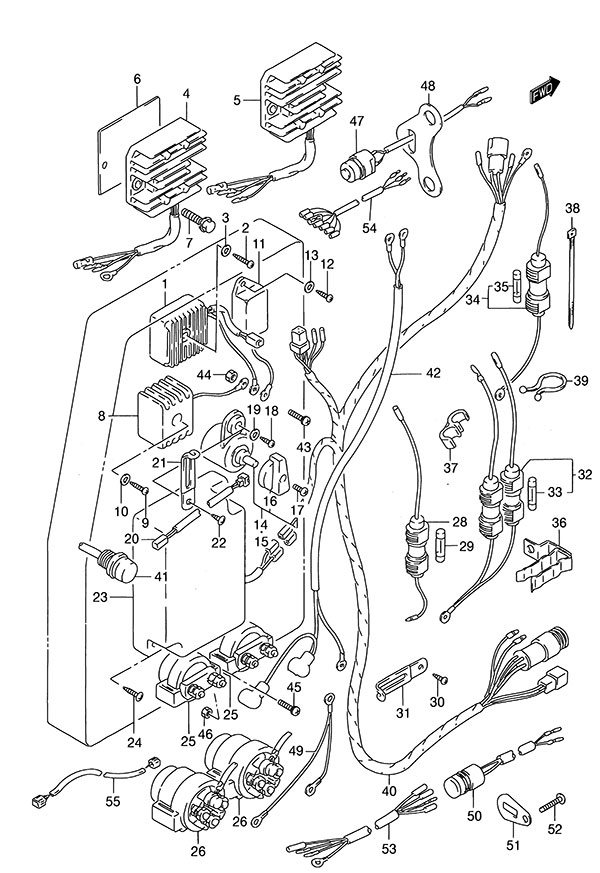

Fig. 29 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-94601 Rectifier & Regulator (NLA)
SKU: 32800-94601 Weight: 0.200000 Brand: Price: $ 109.49 |
Rectifier & Regulator (NLA) | 1 | $ 109.49 | 1986 to 1988 | |
| 2 | 03212-0530B SCREW
SKU: 03212-0530B Weight: 0.060000 Brand: Price: $ 2.12 |
SCREW | 1 | $ 2.12 | ||
| 3 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 4 | 32800-87E00 Rectifier & Regulator (NLA)
SKU: 32800-87E00 Weight: 0.250000 Brand: Price: $ 113.84 |
Rectifier & Regulator (NLA) | 1 | $ 113.84 | 1989 to 1990 | |
| 5 | 32800-94620 Rectifier & Regulator
SKU: 32800-94620 Weight: 0.500000 Brand: Price: $ 133.77 |
Rectifier & Regulator | 1 | $ 133.77 | 1991 to 1994 S/N 461656 Newer | |
| 6 | 32805-94600 Rectifier & Regulator Plate (NLA)
SKU: 32805-94600 Weight: 0.100000 Brand: Price: $ 6.16 |
Rectifier & Regulator Plate (NLA) | 1 | $ 6.16 | 1990 to 1991 | |
| 7-1 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 1989 to 1990 | |
| 7-2 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 1991 to 2000 | |
| 8 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1986 to 1988 | |
| 9 | 03212-05253 Screw (NLA)
SKU: 03212-05253 Weight: 0.060000 Brand: Price: $ 1.60 |
Screw (NLA) | 1 | $ 1.60 | ||
| 10 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 11-1 | 37875-94611 Low Oil Warning Unit (NLA)
SKU: 37875-94611 Weight: 0.100000 Brand: Price: $ 83.67 |
Low Oil Warning Unit (NLA) | 1 | $ 83.67 | S/N 608698 Older | |
| 11-2 | 37875-94630 Low Oil Warning Unit (NLA)
SKU: 37875-94630 Weight: 0.100000 Brand: Price: $ 133.28 |
Low Oil Warning Unit (NLA) | 1 | $ 133.28 | S/N 608699 to 811082 | |
| 11-3 | 37875-94641 Low Oil Warning Unit
SKU: 37875-94641 Weight: 0.500000 Brand: Price: $ 175.62 |
Low Oil Warning Unit | 1 | $ 175.62 | S/N 811083 Newer | |
| 12 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 1 | $ 2.49 | ||
| 13 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 14 | 37920-87D00 Ignition Timing Switch Assembly
SKU: 37920-87D00 Weight: 0.100000 Brand: Price: $ 101.27 |
Ignition Timing Switch Assembly | 1 | $ 101.27 | 1986 to 1988 | |
| 15 | 37920-94621 Ignition Timing Switch Assembly (NLA)
SKU: 37920-94621 Weight: 0.100000 Brand: Price: $ 53.10 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 53.10 | 1989 to 1990 | |
| 16 | 37922-94610 Knob
SKU: 37922-94610 Weight: 0.100000 Brand: Price: $ 7.10 |
Knob | 1 | $ 7.10 | ||
| 17 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 1 | $ 1.11 | ||
| 18 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 1 | $ 2.62 | ||
| 19 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 1 | $ 1.54 | ||
| 20 | 37940-94701 Ignition Timing Resistor (NLA)
SKU: 37940-94701 Weight: 0.060000 Brand: Price: $ 23.41 |
Ignition Timing Resistor (NLA) | 1 | $ 23.41 | 1991 to 1994 | |
| 22 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 1 | $ 1.27 | 1991 to 1994 | |
| 23-1 | 32900-94602 CDI Unit Assembly
SKU: 32900-94602 Weight: 5.000000 Brand: Price: $ 1,234.74 |
CDI Unit Assembly | 1 | $ 1,234.74 | S/N 608993 to 812886 | |
| 23-2 | 32900-94640 CDI Unit Assembly (NLA)
SKU: 32900-94640 Weight: 5.000000 Brand: Price: $ 1,191.99 |
CDI Unit Assembly (NLA) | 1 | $ 1,191.99 | S/N 912900 Newer | |
| 24 | 03242-05253 Screw (NLA)
SKU: 03242-05253 Weight: 0.100000 Brand: Price: $ 1.17 |
Screw (NLA) | 2 | $ 1.17 | ||
| 25 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 2 | $ 131.56 | 1986 to 1986 | |
| 26 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 2 | $ 140.10 | 1990 to 2000 | |
| 28 | 36740-94720 Fuse Case Assembly (NLA)
SKU: 36740-94720 Weight: 0.100000 Brand: Price: $ 9.64 |
Fuse Case Assembly (NLA) | 1 | $ 9.64 | 1986 to 1988 | |
| 29 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | 1986 to 1988 | |
| 30 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 1 | $ 2.62 | ||
| 31-1 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 31-2 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 1 | $ 3.21 | ||
| 32 | 36740-94771 Fuse Case Assembly (NLA)
SKU: 36740-94771 Weight: 0.100000 Brand: Price: $ 25.52 |
Fuse Case Assembly (NLA) | 1 | $ 25.52 | ||
| 33 | 09481-25001 25 Amp Fuse
SKU: 09481-25001 Weight: 0.060000 Brand: Price: $ 2.06 |
25 Amp Fuse | 1 | $ 2.06 | ||
| 34 | 36740-94620 Fuse Case Assembly (NLA)
SKU: 36740-94620 Weight: 0.100000 Brand: Price: $ 11.75 |
Fuse Case Assembly (NLA) | 1 | $ 11.75 | DT115S | |
| 35 | 09481-10001 10 Amp Fuse
SKU: 09481-10001 Weight: 0.060000 Brand: Price: $ 1.73 |
10 Amp Fuse | 1 | $ 1.73 | DT115S | |
| 36 | 36791-87E00 Fuse Case Holder (NLA)
SKU: 36791-87E00 Weight: 0.100000 Brand: Price: $ 3.94 |
Fuse Case Holder (NLA) | 1 | $ 3.94 | 1989 to 1993 | |
| 37 | 09408-00043 Clamp
SKU: 09408-00043 Weight: 0.250000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | 1994 to 2000 | |
| 38 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 39 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 | 1989 to 1992 | |
| 40-1 | 36610-94600 Wiring Harness Assembly (NLA)
SKU: 36610-94600 Weight: 5.000000 Brand: Price: $ 79.06 |
Wiring Harness Assembly (NLA) | 1 | $ 79.06 | S/N 608590 Older | |
| 40-2 | 36610-94631 Wiring Harness Assembly (NLA)
SKU: 36610-94631 Weight: 5.000000 Brand: Price: $ 86.68 |
Wiring Harness Assembly (NLA) | 1 | $ 86.68 | S/N 608591 Newer | |
| 40-3 | 36610-94640 Wiring Harness Assembly (NLA)
SKU: 36610-94640 Weight: 5.000000 Brand: Price: $ 114.75 |
Wiring Harness Assembly (NLA) | 1 | $ 114.75 | 1989 to 1992 | |
| 40-4 | 36610-94670 Wiring Harness Assembly (NLA)
SKU: 36610-94670 Weight: 5.000000 Brand: Price: $ 176.07 |
Wiring Harness Assembly (NLA) | 1 | $ 176.07 | 1993 to 1996 | |
| 40-5 | 36610-94680 Wiring Harness Assembly (NLA)
SKU: 36610-94680 Weight: 5.000000 Brand: Price: $ 158.32 |
Wiring Harness Assembly (NLA) | 1 | $ 158.32 | DT115S | |
| 41 | 37930-94706 Oil Warning Reset Switch Assembly (NLA)
SKU: 37930-94706 Weight: 0.100000 Brand: Price: $ 17.10 |
Oil Warning Reset Switch Assembly (NLA) | 1 | $ 17.10 | 1986 to 1988 | |
| 42 | 33831-94630 Trim Relay Cable Assembly (NLA)
SKU: 33831-94630 Weight: 0.100000 Brand: Price: $ 19.30 |
Trim Relay Cable Assembly (NLA) | 1 | $ 19.30 | ||
| 43 | 02112-36207 Screw (NLA)
SKU: 02112-36207 Weight: 0.060000 Brand: Price: $ 1.35 |
Screw (NLA) | 1 | $ 1.35 | ||
| 44 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 45 | 02112-36207 Screw (NLA)
SKU: 02112-36207 Weight: 0.060000 Brand: Price: $ 1.35 |
Screw (NLA) | 1 | $ 1.35 | ||
| 46 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 47 | 34820-94600 Engine Temp Sensor (NLA)
SKU: 34820-94600 Weight: 0.060000 Brand: Price: $ 113.27 |
Engine Temp Sensor (NLA) | 1 | $ 113.27 | 1989 | |
| 48 | 34853-94600 Engine Temp Support (NLA)
SKU: 34853-94600 Weight: 0.100000 Brand: Price: $ 2.44 |
Engine Temp Support (NLA) | 1 | $ 2.44 | 1989 | |
| 49 | 33832-94601 Trim Cable Assembly (NLA)
SKU: 33832-94601 Weight: 0.100000 Brand: Price: $ 12.35 |
Trim Cable Assembly (NLA) | 1 | $ 12.35 | ||
| 50 | 34850-94610 Heat Sensor Assy
SKU: 34850-94610 Weight: 0.080000 Brand: Price: $ 106.60 |
Heat Sensor Assy | 1 | $ 106.60 | 1992 to 1997 | |
| 51 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | 1992 to 1997 | |
| 52 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 1 | $ 2.09 | 1992 to 1997 | |
| 53-1 | 36810-94601 Rectifier Extension Lead (NLA)
SKU: 36810-94601 Weight: 0.100000 Brand: Price: $ 12.20 |
Rectifier Extension Lead (NLA) | 1 | $ 12.20 | 1994 to 1997 | |
| 53-2 | 36810-94610 Rectifier Extension Lead (NLA)
SKU: 36810-94610 Weight: 0.100000 Brand: Price: $ 17.19 |
Rectifier Extension Lead (NLA) | 1 | $ 17.19 | DT115S | |
| 54 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | 1993 to 2000 | |
| 55 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | 1993 to 2000 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
