Suzuki DT 115S Parts Listings 1996 to 2001

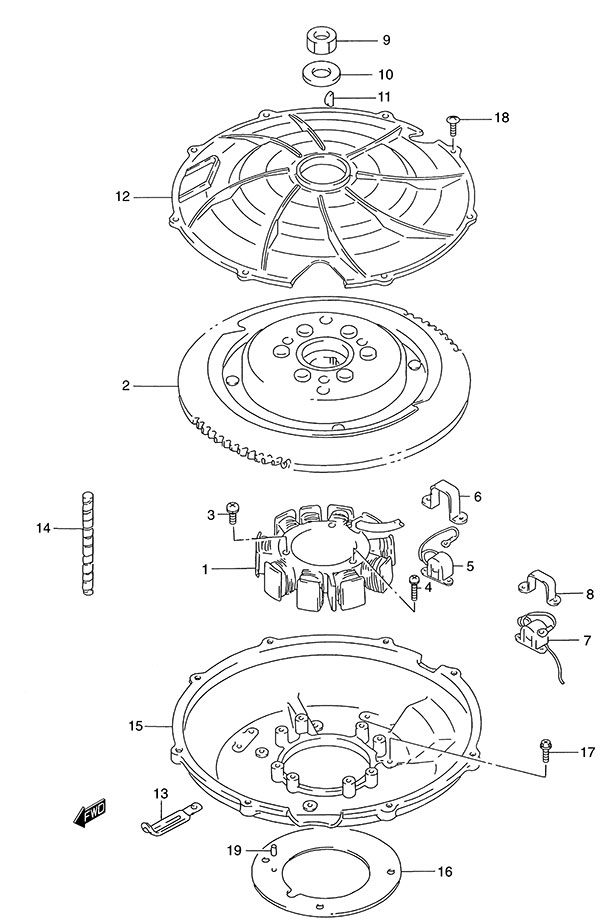

Fig. 26 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32101-94620 Stator Coil
SKU: 32101-94620 Weight: 2.000000 Brand: Price: $ 742.32 |
Stator Coil | 1 | $ 742.32 | ||
| 2 | 32102-94620 Flywheel (NLA)
SKU: 32102-94620 Weight: 10.200000 Brand: Price: $ 877.62 |
Flywheel (NLA) | 1 | $ 877.62 | ||
| 3 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 4 | $ 1.54 | ||
| 4 | 02112-36257 SCREW
SKU: 02112-36257 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 3 | $ 2.72 | ||
| 5 | 32160-94620 Igntion Timing Coil
SKU: 32160-94620 Weight: 0.200000 Brand: Price: $ 150.80 |
Igntion Timing Coil | 1 | $ 150.80 | ||
| 6 | 32156-94610 Igntion Timing Coil Band (NLA)
SKU: 32156-94610 Weight: 0.100000 Brand: Price: $ 4.77 |
Igntion Timing Coil Band (NLA) | 1 | $ 4.77 | ||
| 7 | 32150-94630 Gear Counter Coil
SKU: 32150-94630 Weight: 0.200000 Brand: Price: $ 168.12 |
Gear Counter Coil | 1 | $ 168.12 | ||
| 8 | 32156-94600 Gear Counter Coil Band
SKU: 32156-94600 Weight: 0.100000 Brand: Price: $ 4.92 |
Gear Counter Coil Band | 1 | $ 4.92 | ||
| 9 | 09140-18007 Nut (NLA)
SKU: 09140-18007 Weight: 0.120000 Brand: Price: $ 3.77 |
Nut (NLA) | 1 | $ 3.77 | ||
| 10 | 09160-18011 Washer
SKU: 09160-18011 Weight: 0.062500 Brand: Price: $ 5.96 |
Washer | 1 | $ 5.96 | ||
| 11 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 12 | 11511-94603 Ring Gear Cover (NLA)
SKU: 11511-94603 Weight: 1.000000 Brand: Price: $ 21.71 |
Ring Gear Cover (NLA) | 1 | $ 21.71 | ||
| 14 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 15 | 11521-94900-0ED Ring Gear Case
SKU: 11521-94900-0ED Weight: 2.000000 Brand: Price: $ 192.12 |
Ring Gear Case | 1 | $ 192.12 | ||
| 16 | 11523-94610 Ring Gear Case Gasket (NLA)
SKU: 11523-94610 Weight: 0.200000 Brand: Price: $ 7.09 |
Ring Gear Case Gasket (NLA) | 1 | $ 7.09 | ||
| 17 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 18 | 02142-05167 SCREW 5X16 CROS
SKU: 02142-05167 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 5X16 CROS | 8 | $ 1.38 | ||
| 19 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 1 | $ 1.11 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
