Suzuki DT 115 Parts Listings 1986 to 1988

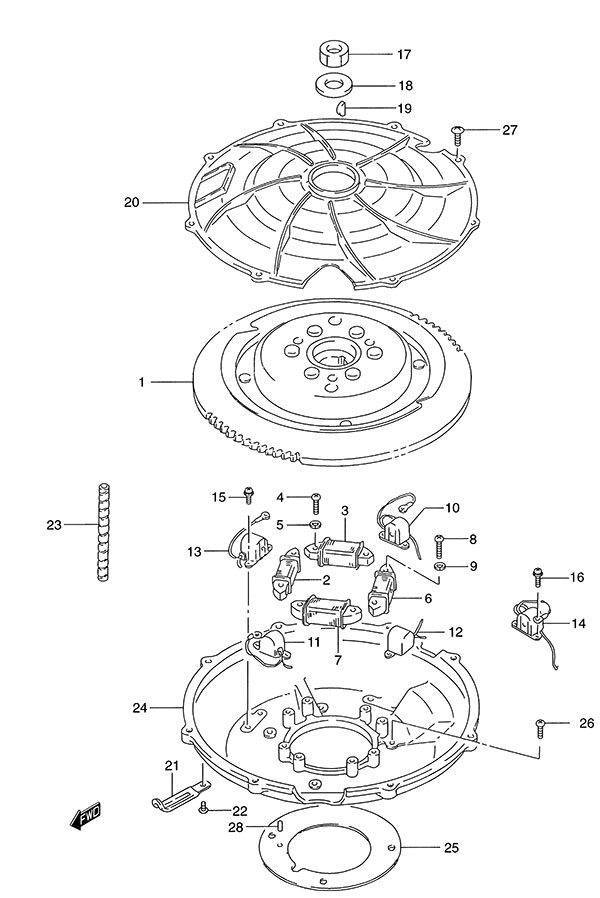

Fig. 24 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-94600 Flywheel (NLA)
SKU: 32102-94600 Weight: 0.100000 Brand: Price: $ 845.39 |
Flywheel (NLA) | 1 | $ 845.39 | ||
| 2 | 32140-94600 Primary Coil #1 (NLA)
SKU: 32140-94600 Weight: 0.250000 Brand: Price: $ 144.68 |
Primary Coil #1 (NLA) | 1 | $ 144.68 | ||
| 3 | 32140-94610 Primary Coil #2 (NLA)
SKU: 32140-94610 Weight: 0.100000 Brand: Price: $ 144.68 |
Primary Coil #2 (NLA) | 1 | $ 144.68 | ||
| 4 | 02112-06207 CROSS SCREW,6X2
SKU: 02112-06207 Weight: 0.060000 Brand: Price: $ 1.78 |
CROSS SCREW,6X2 | 4 | $ 1.78 | ||
| 5 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | ||
| 6 | 32120-94600 Battery Charge Coil #1 (NLA)
SKU: 32120-94600 Weight: 0.200000 Brand: Price: $ 165.98 |
Battery Charge Coil #1 (NLA) | 1 | $ 165.98 | ||
| 7 | 32120-94610 Battery Charge Coil #2 (NLA)
SKU: 32120-94610 Weight: 0.200000 Brand: Price: $ 165.98 |
Battery Charge Coil #2 (NLA) | 1 | $ 165.98 | ||
| 8 | 02112-06257 6X25CROSS SCREW
SKU: 02112-06257 Weight: 0.060000 Brand: Price: $ 1.78 |
6X25CROSS SCREW | 4 | $ 1.78 | ||
| 9 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | ||
| 10 | 32160-94610 Pulser Coil #1
SKU: 32160-94610 Weight: 0.200000 Brand: Price: $ 135.85 |
Pulser Coil #1 | 1 | $ 135.85 | ||
| 11 | 32170-94610 Pulser Coil #2 (NLA)
SKU: 32170-94610 Weight: 0.200000 Brand: Price: $ 131.61 |
Pulser Coil #2 (NLA) | 1 | $ 131.61 | ||
| 12 | 32180-94610 Pulser Coil #3
SKU: 32180-94610 Weight: 0.200000 Brand: Price: $ 135.85 |
Pulser Coil #3 | 1 | $ 135.85 | ||
| 13 | 32190-94610 Pulser Coil #4 (NLA)
SKU: 32190-94610 Weight: 0.200000 Brand: Price: $ 131.61 |
Pulser Coil #4 (NLA) | 1 | $ 131.61 | ||
| 14 | 32150-94600 Gear Counter Coil
SKU: 32150-94600 Weight: 0.200000 Brand: Price: $ 148.56 |
Gear Counter Coil | 1 | $ 148.56 | ||
| 15 | 02112-75107 Screw (NLA)
SKU: 02112-75107 Weight: 0.100000 Brand: Price: $ 1.94 |
Screw (NLA) | 8 | $ 1.94 | ||
| 16 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 | ||
| 17 | 09140-18007 Nut (NLA)
SKU: 09140-18007 Weight: 0.120000 Brand: Price: $ 3.77 |
Nut (NLA) | 1 | $ 3.77 | ||
| 18 | 09160-18011 Washer
SKU: 09160-18011 Weight: 0.062500 Brand: Price: $ 5.96 |
Washer | 1 | $ 5.96 | ||
| 19 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 20 | 11511-94603 Ring Gear Cover (NLA)
SKU: 11511-94603 Weight: 1.000000 Brand: Price: $ 21.71 |
Ring Gear Cover (NLA) | 1 | $ 21.71 | ||
| 22 | 02142-05087 SCREW 5X8 CROSS
SKU: 02142-05087 Weight: 0.062500 Brand: Price: $ 1.43 |
SCREW 5X8 CROSS | 4 | $ 1.43 | ||
| 23 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 24 | 11521-94602-0ED Ring Gear Case
SKU: 11521-94602-0ED Weight: 2.000000 Brand: Price: $ 192.12 |
Ring Gear Case | 1 | $ 192.12 | ||
| 25 | 11523-94610 Ring Gear Case Gasket (NLA)
SKU: 11523-94610 Weight: 0.200000 Brand: Price: $ 7.09 |
Ring Gear Case Gasket (NLA) | 1 | $ 7.09 | ||
| 26 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 4 | $ 1.44 | ||
| 27 | 02142-05167 SCREW 5X16 CROS
SKU: 02142-05167 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 5X16 CROS | 8 | $ 1.38 | ||
| 28 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 1 | $ 1.11 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
