Suzuki DT 115 Parts Listings 2000 to 2001

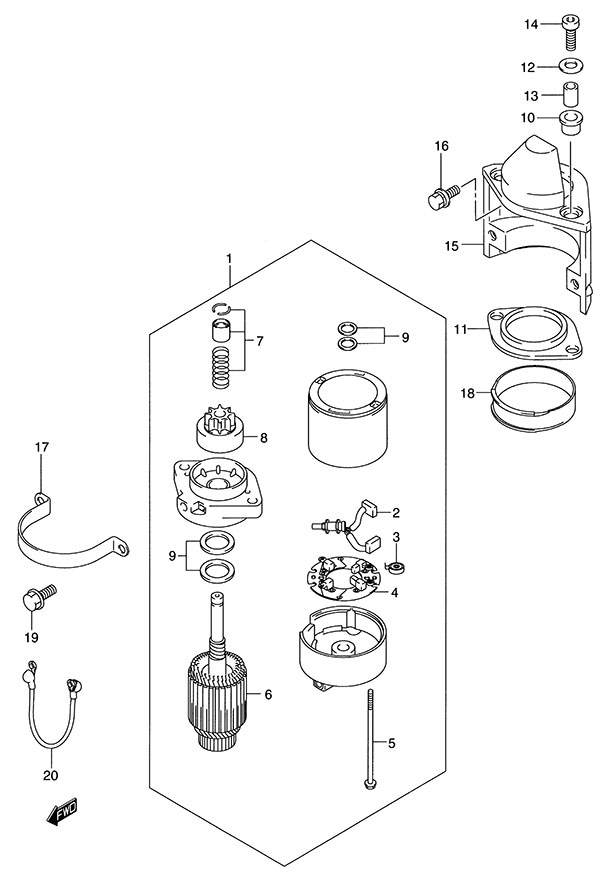

Fig. 23A - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-94610 Starter Motor Assembly (NLA)
SKU: 31100-94610 Weight: 8.000000 Brand: Price: $ 764.39 |
Starter Motor Assembly (NLA) | 1 | $ 764.39 | ||
| 2 | 31131-99E00 Brush (+)
SKU: 31131-99E00 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 1 | $ 25.72 | ||
| 3 | 31135-99E00 Spring
SKU: 31135-99E00 Weight: 0.060000 Brand: Price: $ 4.52 |
Spring | 4 | $ 4.52 | ||
| 4 | 31173-99E00 Brush Holder
SKU: 31173-99E00 Weight: 0.100000 Brand: Price: $ 126.57 |
Brush Holder | 1 | $ 126.57 | ||
| 5 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 6 | 31310-99E00 Armature (NLA)
SKU: 31310-99E00 Weight: 5.000000 Brand: Price: $ 315.01 |
Armature (NLA) | 1 | $ 315.01 | ||
| 7 | 31312-87J00 Pinion Stopper Set (NLA)
SKU: 31312-87J00 Weight: 0.100000 Brand: Price: $ 15.68 |
Pinion Stopper Set (NLA) | 1 | $ 15.68 | ||
| 8 | 31320-94600 Pinion Assembly (NLA)
SKU: 31320-94600 Weight: 0.100000 Brand: Price: $ 164.26 |
Pinion Assembly (NLA) | 1 | $ 164.26 | ||
| 9 | 31360-99E10 Washer Kit (NLA)
SKU: 31360-99E10 Weight: 0.100000 Brand: Price: $ 6.81 |
Washer Kit (NLA) | 1 | $ 6.81 | ||
| 10 | 31916-94500 Starter Motor Upper Damper
SKU: 31916-94500 Weight: 0.100000 Brand: Price: $ 4.84 |
Starter Motor Upper Damper | 2 | $ 4.84 | ||
| 11 | 31917-94500 Starter Motor Middle Damper (NLA)
SKU: 31917-94500 Weight: 0.100000 Brand: Price: $ 9.16 |
Starter Motor Middle Damper (NLA) | 1 | $ 9.16 | ||
| 12 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 3 | $ 1.44 | ||
| 13 | 09180-08097-XC0 Spacer
SKU: 09180-08097-XC0 Weight: 0.060000 Brand: Price: $ 2.71 |
Spacer | 2 | $ 2.71 | ||
| 14 | 07130-08407 BOLT
SKU: 07130-08407 Weight: 0.060000 Brand: Price: $ 3.20 |
BOLT | 2 | $ 3.20 | ||
| 15 | 31911-94620-0ED Starter Motor Bracket
SKU: 31911-94620-0ED Weight: 1.200000 Brand: Price: $ 56.64 |
Starter Motor Bracket | 1 | $ 56.64 | ||
| 16 | 01580-08257 BOLT
SKU: 01580-08257 Weight: 0.060000 Brand: Price: $ 3.24 |
BOLT | 4 | $ 3.24 | ||
| 17 | 31912-94600 Starting Motor Band (NLA)
SKU: 31912-94600 Weight: 0.100000 Brand: Price: $ 4.37 |
Starting Motor Band (NLA) | 1 | $ 4.37 | ||
| 18 | 31918-94600 Lower Damper (NLA)
SKU: 31918-94600 Weight: 0.100000 Brand: Price: $ 7.01 |
Lower Damper (NLA) | 1 | $ 7.01 | ||
| 19 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 2 | $ 2.84 | ||
| 20 | 33820-94600 Cable Assembly (NLA)
SKU: 33820-94600 Weight: 5.000000 Brand: Price: $ 8.84 |
Cable Assembly (NLA) | 1 | $ 8.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
