Suzuki DT 115 Parts Listings 1986 to 2001

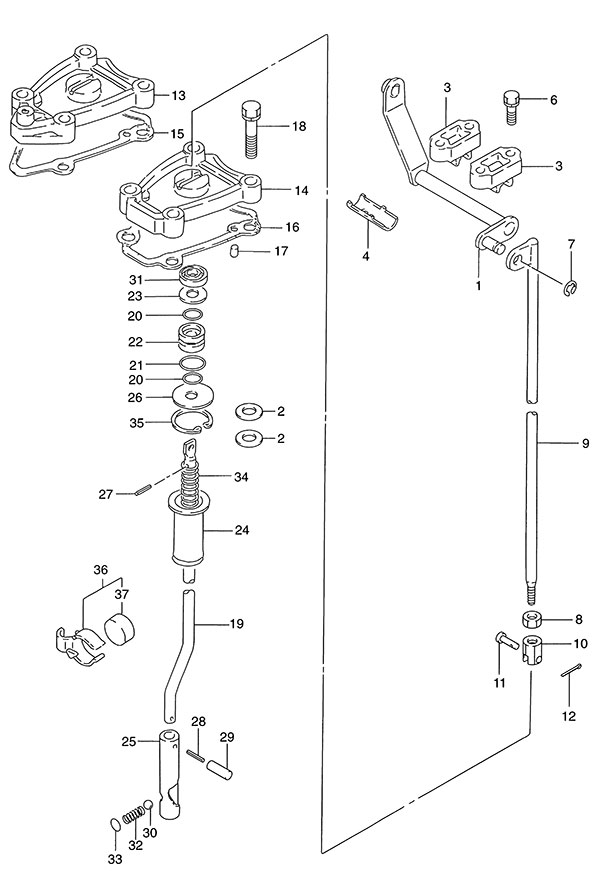

Fig. 22 - Clutch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 25142-94520 Shift Guide Gasket
SKU: 25142-94520 Weight: 0.060000 Brand: Price: $ 6.20 |
Shift Guide Gasket | 22 | $ 6.20 | S/N 709843 Newer | |
| 1 | 21210-94500 Clutch Shift Shaft (NLA)
SKU: 21210-94500 Weight: 0.250000 Brand: Price: $ 65.94 |
Clutch Shift Shaft (NLA) | 1 | $ 65.94 | ||
| 2 | 09160-08090 Washer
SKU: 09160-08090 Weight: 0.200000 Brand: Price: $ 2.40 |
Washer | 2 | $ 2.40 | DT115S S/N 971072 Newer | |
| 3 | 21311-94503 Clutch Shaft Holder
SKU: 21311-94503 Weight: 0.200000 Brand: Price: $ 4.82 |
Clutch Shaft Holder | 2 | $ 4.82 | ||
| 4 | 21312-94500 Clutch Shaft Bushing (NLA)
SKU: 21312-94500 Weight: 0.100000 Brand: Price: $ 8.12 |
Clutch Shaft Bushing (NLA) | 2 | $ 8.12 | ||
| 6 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 4 | $ 3.08 | ||
| 7 | 09383-08004 E Ring
SKU: 09383-08004 Weight: 0.060000 Brand: Price: $ 0.91 |
E Ring | 1 | $ 0.91 | ||
| 8-1 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | Type: L | |
| 8-2 | 09140-08019 Nut (8mm)
SKU: 09140-08019 Weight: 0.060000 Brand: Price: $ 2.02 |
Nut (8mm) | 1 | $ 2.02 | Type: X 1994 Older | |
| 8-3 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | Type: X 1995 to 2001 | |
| 9-1 | 23110-94502 Clutch Rod (L) (NLA)
SKU: 23110-94502 Weight: 0.500000 Brand: Price: $ 20.58 |
Clutch Rod (L) (NLA) | 1 | $ 20.58 | Type: L | |
| 9-2 | 23110-94510 Clutch Rod (X) (NLA)
SKU: 23110-94510 Weight: 0.100000 Brand: Price: $ 22.56 |
Clutch Rod (X) (NLA) | 1 | $ 22.56 | Type: X | |
| 10-1 | 23315-94503 Clutch Rod Connector (L)
SKU: 23315-94503 Weight: 0.060000 Brand: Price: $ 11.34 |
Clutch Rod Connector (L) | 1 | $ 11.34 | Type: L | |
| 10-2 | 23315-94510 Clutch Rod Connector (X)
SKU: 23315-94510 Weight: 0.100000 Brand: Price: $ 15.99 |
Clutch Rod Connector (X) | 1 | $ 15.99 | Type: X | |
| 11-1 | 23313-87D00 Clutch Rod Connector Pin (L)
SKU: 23313-87D00 Weight: 0.060000 Brand: Price: $ 4.15 |
Clutch Rod Connector Pin (L) | 1 | $ 4.15 | Type: L | |
| 11-2 | 23313-99E01 Clutch Rod Connector Pin
SKU: 23313-99E01 Weight: 0.060000 Brand: Price: $ 4.08 |
Clutch Rod Connector Pin | 1 | $ 4.08 | Type: X | |
| 12 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 13 | 25141-94503 Shift Rod Housing Guide (NLA)
SKU: 25141-94503 Weight: 0.100000 Brand: Price: $ 18.32 |
Shift Rod Housing Guide (NLA) | 1 | $ 18.32 | S/N 709842 Older | |
| 14 | 25141-94510 Shift Rod Housing Guide
SKU: 25141-94510 Weight: 0.100000 Brand: Price: $ 35.09 |
Shift Rod Housing Guide | 1 | $ 35.09 | S/N 709843 Newer | |
| 15 | 25142-94560 Shift Guide Gasket
SKU: 25142-94560 Weight: 0.060000 Brand: Price: $ 8.03 |
Shift Guide Gasket | 1 | $ 8.03 | S/N 709842 Older | |
| 16 | 25142-94520 Shift Guide Gasket
SKU: 25142-94520 Weight: 0.060000 Brand: Price: $ 6.20 |
Shift Guide Gasket | 1 | $ 6.20 | S/N 709843 Newer | |
| 17 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 18 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 4 | $ 6.05 | ||
| 19-1 | 25111-94503 Shift Rod (L) (NLA)
SKU: 25111-94503 Weight: 0.500000 Brand: Price: $ 24.47 |
Shift Rod (L) (NLA) | 1 | $ 24.47 | Type: L Required Ref# 2 | |
| 19-2 | 25111-94503 Shift Rod (L) (NLA)
SKU: 25111-94503 Weight: 0.500000 Brand: Price: $ 24.47 |
Shift Rod (L) (NLA) | 1 | $ 24.47 | Type: L DT115S S/N 971072 Newer | |
| 19-3 | 25111-94511 Shift Rod (X)
SKU: 25111-94511 Weight: 0.500000 Brand: Price: $ 25.96 |
Shift Rod (X) | 1 | $ 25.96 | Type: X Requires Ref# 2 | |
| 19-4 | 25111-94511 Shift Rod (X)
SKU: 25111-94511 Weight: 0.500000 Brand: Price: $ 25.96 |
Shift Rod (X) | 1 | $ 25.96 | Type: X DT115S S/N 971072 Newer | |
| 20 | 09280-08008 O-Ring
SKU: 09280-08008 Weight: 0.060000 Brand: Price: $ 1.07 |
O-Ring | 2 | $ 1.07 | ||
| 21 | 09280-15003 O-Ring
SKU: 09280-15003 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 1 | $ 1.78 | ||
| 22 | 25211-94501 Shift Rod Guide
SKU: 25211-94501 Weight: 0.060000 Brand: Price: $ 11.45 |
Shift Rod Guide | 1 | $ 11.45 | ||
| 23 | 09160-09015 Washer (9x19x1.0)
SKU: 09160-09015 Weight: 0.060000 Brand: Price: $ 2.06 |
Washer (9x19x1.0) | 1 | $ 2.06 | ||
| 24 | 25205-94501 Shift Rod Spring Collar
SKU: 25205-94501 Weight: 0.100000 Brand: Price: $ 13.26 |
Shift Rod Spring Collar | 1 | $ 13.26 | ||
| 25 | 25311-94510 Shift Cam
SKU: 25311-94510 Weight: 0.250000 Brand: Price: $ 49.00 |
Shift Cam | 1 | $ 49.00 | ||
| 26 | 09160-09010 Washer (9x30x1.6)
SKU: 09160-09010 Weight: 0.100000 Brand: Price: $ 1.86 |
Washer (9x30x1.6) | 1 | $ 1.86 | ||
| 27 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 1 | $ 0.92 | ||
| 28 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 29 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (3.5x12) | 1 | $ 1.07 | ||
| 30 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 31 | 09284-08003 Dust Seal
SKU: 09284-08003 Weight: 0.060000 Brand: Price: $ 3.36 |
Dust Seal | 1 | $ 3.36 | ||
| 32 | 09440-07033 Cam Notch Spring
SKU: 09440-07033 Weight: 0.060000 Brand: Price: $ 1.51 |
Cam Notch Spring | 1 | $ 1.51 | ||
| 33 | 21121-93300 Clutch Notch Plate
SKU: 21121-93300 Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Notch Plate | 1 | $ 1.46 | ||
| 34 | 09440-12025 Spring
SKU: 09440-12025 Weight: 0.100000 Brand: Price: $ 1.85 |
Spring | 1 | $ 1.85 | ||
| 35 | 08331-41309 Circlip
SKU: 08331-41309 Weight: 0.060000 Brand: Price: $ 2.45 |
Circlip | 1 | $ 2.45 | ||
| 36 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 1 | $ 17.66 | ||
| 37 | 25232-94300 Gear Case Magnet
SKU: 25232-94300 Weight: 0.125000 Brand: Price: $ 3.25 |
Gear Case Magnet | 1 | $ 3.25 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
