Suzuki DT 115 Parts Listings 1986 to 2001

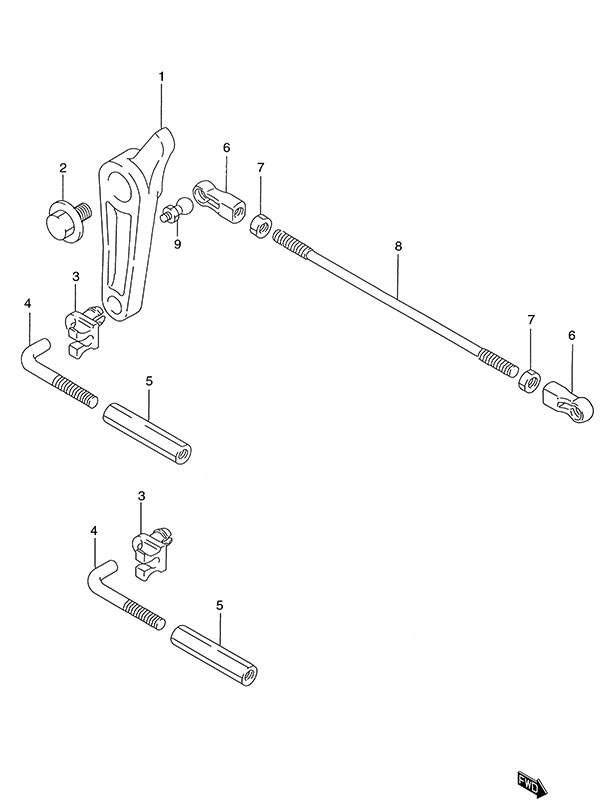

Fig. 21 - Throttle Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19111-94602 Throttle Control Lever
SKU: 19111-94602 Weight: 0.060000 Brand: Price: $ 9.02 |
Throttle Control Lever | 1 | $ 9.02 | ||
| 2 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 1 | $ 2.98 | ||
| 3 | 19131-94503 Cable Rod Retainer
SKU: 19131-94503 Weight: 0.060000 Brand: Price: $ 2.18 |
Cable Rod Retainer | 2 | $ 2.18 | ||
| 4 | 19137-94500 Cable Link Rod
SKU: 19137-94500 Weight: 0.060000 Brand: Price: $ 4.60 |
Cable Link Rod | 2 | $ 4.60 | ||
| 5 | 09159-05011 Turnbuckle
SKU: 09159-05011 Weight: 0.060000 Brand: Price: $ 7.96 |
Turnbuckle | 2 | $ 7.96 | ||
| 6 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 8-1 | 19136-94600 Throttle Rod (NLA)
SKU: 19136-94600 Weight: 0.150000 Brand: Price: $ 3.48 |
Throttle Rod (NLA) | 1 | $ 3.48 | ||
| 8-2 | 19136-94900 Throttle Rod (NLA)
SKU: 19136-94900 Weight: 0.100000 Brand: Price: $ 3.82 |
Throttle Rod (NLA) | 1 | $ 3.82 | DT115S | |
| 9 | 09119-05010 Pivot Ball
SKU: 09119-05010 Weight: 0.060000 Brand: Price: $ 6.97 |
Pivot Ball | 1 | $ 6.97 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
