Suzuki DT 115 Parts Listings 1986 to 1997

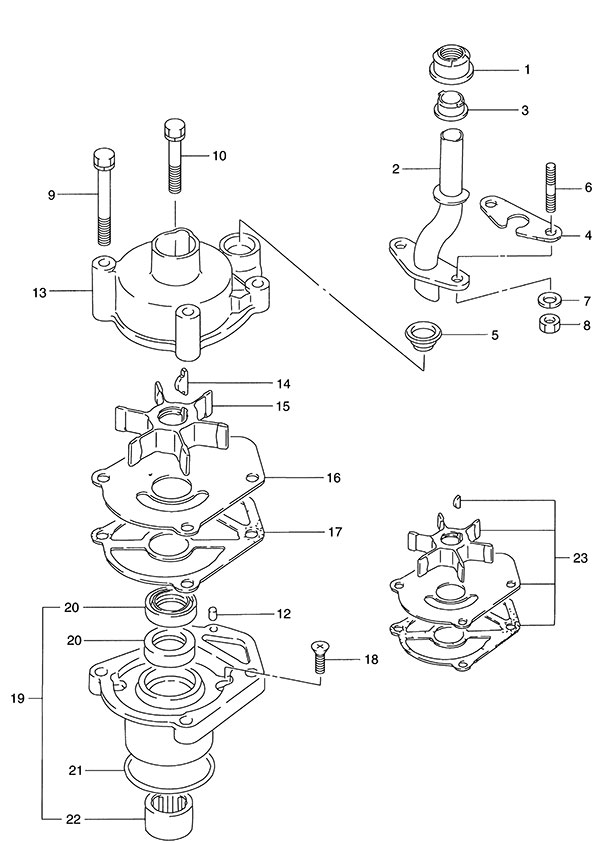

Fig. 19 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17563-94502 Water Tube Bushing
SKU: 17563-94502 Weight: 0.060000 Brand: Price: $ 2.87 |
Water Tube Bushing | 1 | $ 2.87 | ||
| 2-1 | 17560-94521 Water Tube (L)
SKU: 17560-94521 Weight: 0.250000 Brand: Price: $ 39.88 |
Water Tube (L) | 1 | $ 39.88 | Type: L | |
| 2-2 | 17560-94531 Water Tube (X) (NLA)
SKU: 17560-94531 Weight: 0.100000 Brand: Price: $ 23.84 |
Water Tube (X) (NLA) | 1 | $ 23.84 | Type: X | |
| 3 | 09306-16002 Bushing
SKU: 09306-16002 Weight: 0.060000 Brand: Price: $ 1.62 |
Bushing | 1 | $ 1.62 | ||
| 4 | 17567-94510 Water Tube Gasket (NLA)
SKU: 17567-94510 Weight: 0.060000 Brand: Price: $ 2.95 |
Water Tube Gasket (NLA) | 1 | $ 2.95 | ||
| 5 | 09320-16011 Bushing
SKU: 09320-16011 Weight: 0.060000 Brand: Price: $ 2.67 |
Bushing | 1 | $ 2.67 | ||
| 6-1 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 2 | $ 1.74 | S/N 709357 Older | |
| 6-2 | 09108-06063 Stud Bolt (6x12)
SKU: 09108-06063 Weight: 0.060000 Brand: Price: $ 3.00 |
Stud Bolt (6x12) | 2 | $ 3.00 | S/N 709358 Newer | |
| 7 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 8 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 9 | 09117-08062 Bolt (8x70)
SKU: 09117-08062 Weight: 0.080000 Brand: Price: $ 8.18 |
Bolt (8x70) | 2 | $ 8.18 | ||
| 10 | 09117-08063-XC0 Bolt (8x50)
SKU: 09117-08063-XC0 Weight: 0.125000 Brand: Price: $ 5.80 |
Bolt (8x50) | 2 | $ 5.80 | ||
| 12 | 09202-04008 Dowel Pin (4x9)
SKU: 09202-04008 Weight: 0.060000 Brand: Price: $ 1.49 |
Dowel Pin (4x9) | 1 | $ 1.49 | ||
| 13 | 17411-94601 Water Pump Case (NLA)
SKU: 17411-94601 Weight: 1.440000 Brand: Price: $ 85.84 |
Water Pump Case (NLA) | 1 | $ 85.84 | ||
| 14-1 | 09420-05005 Key (NLA)
SKU: 09420-05005 Weight: 0.060000 Brand: Price: $ 9.39 |
Key (NLA) | 1 | $ 9.39 | S/N 812174 Older | |
| 14-2 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | S/N 812175 Newer | |
| 15 | 17461-90J01 Water Pump Impeller
SKU: 17461-90J01 Weight: 0.160000 Brand: Price: $ 67.58 |
Water Pump Impeller | 1 | $ 67.58 | ||
| 16 | 17471-94600 Water Pump Plate
SKU: 17471-94600 Weight: 0.160000 Brand: Price: $ 10.83 |
Water Pump Plate | 1 | $ 10.83 | ||
| 17 | 17472-94510 Water Pump Plate Gasket
SKU: 17472-94510 Weight: 0.060000 Brand: Price: $ 7.42 |
Water Pump Plate Gasket | 1 | $ 7.42 | ||
| 18 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 4 | $ 1.88 | ||
| 19 | 56130-94502 Drive Shaft Bearing Housing (NLA)
SKU: 56130-94502 Weight: 1.000000 Brand: Price: $ 103.85 |
Drive Shaft Bearing Housing (NLA) | 1 | $ 103.85 | ||
| 20 | 09282-24003 Oil Seal (24x36x6)
SKU: 09282-24003 Weight: 0.060000 Brand: Price: $ 5.41 |
Oil Seal (24x36x6) | 2 | $ 5.41 | ||
| 21 | 09280-55002 O-Ring
SKU: 09280-55002 Weight: 0.060000 Brand: Price: $ 2.86 |
O-Ring | 1 | $ 2.86 | ||
| 22 | 09263-26010 Bearing (26x34x20)(NLA)
SKU: 09263-26010 Weight: 0.100000 Brand: Price: $ 37.45 |
Bearing (26x34x20)(NLA) | 1 | $ 37.45 | ||
| 23 | 17400-94611 Water Pump Repair Kit DT115 / DT140
SKU: 17400-94611 Weight: 0.380000 Brand: Price: $ 71.82 |
Water Pump Repair Kit DT115 / DT140 | 1 | $ 71.82 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
