Suzuki DT 115 Parts Listings 1995 to 1997

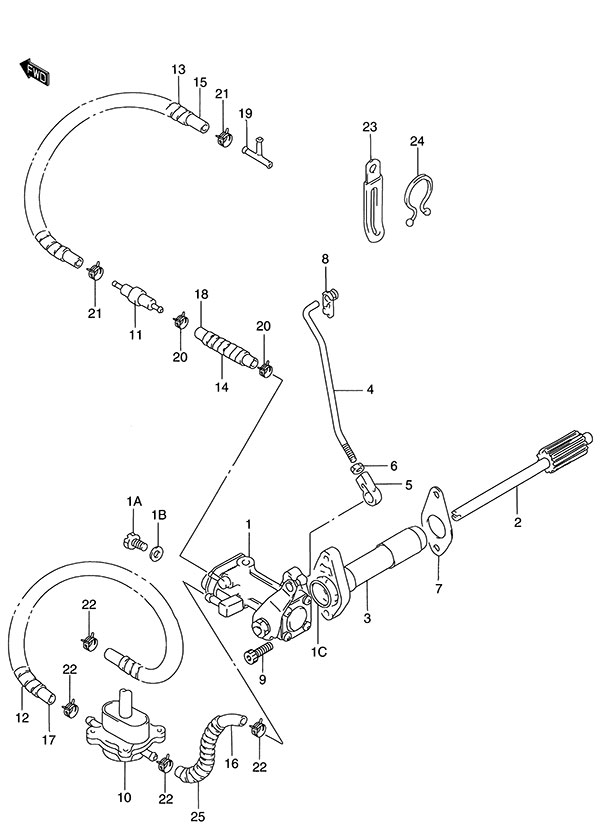

Fig. 17 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-94630 Oil Pump Assembly (NLA)
SKU: 16100-94630 Weight: 0.100000 Brand: Price: $ 162.02 |
Oil Pump Assembly (NLA) | 1 | $ 162.02 | ||
| 1A | 16091-94900 Bolt (NLA)
SKU: 16091-94900 Weight: 0.100000 Brand: Price: $ 2.27 |
Bolt (NLA) | 1 | $ 2.27 | ||
| 1B | 16092-92440 Gasket (NLA)
SKU: 16092-92440 Weight: 0.100000 Brand: Price: $ 1.28 |
Gasket (NLA) | 1 | $ 1.28 | ||
| 1C | 16198-87D00 Oil Pump O-Ring
SKU: 16198-87D00 Weight: 0.060000 Brand: Price: $ 1.65 |
Oil Pump O-Ring | 1 | $ 1.65 | ||
| 2 | 16331-94601 Oil Pump Driven Gear (NLA)
SKU: 16331-94601 Weight: 0.200000 Brand: Price: $ 35.32 |
Oil Pump Driven Gear (NLA) | 1 | $ 35.32 | ||
| 3 | 16340-94610 Driven Gear Retainer (NLA)
SKU: 16340-94610 Weight: 0.250000 Brand: Price: $ 30.86 |
Driven Gear Retainer (NLA) | 1 | $ 30.86 | ||
| 4 | 16411-94611 Oil Pump Control Rod (NLA)
SKU: 16411-94611 Weight: 0.100000 Brand: Price: $ 10.37 |
Oil Pump Control Rod (NLA) | 1 | $ 10.37 | ||
| 5 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 7 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 8 | 09209-05017 Connector
SKU: 09209-05017 Weight: 0.060000 Brand: Price: $ 1.51 |
Connector | 1 | $ 1.51 | ||
| 9 | 07130-06307 BOLT
SKU: 07130-06307 Weight: 0.100000 Brand: Price: $ 3.74 |
BOLT | 2 | $ 3.74 | ||
| 10 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | ||
| 11 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 1 | $ 27.53 | ||
| 12-1 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->240 | |
| 12-2 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | 1997 L:540->145 | |
| 13 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->145 | |
| 14 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | 1995 to 1996 L:540->40 | |
| 15 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | Check Valve to 3 Way L:2000->160 | |
| 16-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Sensor to Pump L:600->45 | |
| 16-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Sensor to Pump 1997 L:600->110 | |
| 17-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Tank to Sensor L:600->270 | |
| 17-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Tank to Sensor 1997 L:600->180 | |
| 18-1 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Check Valve L:600->60 | |
| 18-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Check Valve 1997 L:600->40 | |
| 19 | 09367-08005 3 Way
SKU: 09367-08005 Weight: 0.060000 Brand: Price: $ 4.18 |
3 Way | 1 | $ 4.18 | ||
| 20 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 | ||
| 21 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 2 | $ 2.02 | ||
| 22 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | ||
| 23 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 3 | $ 2.06 | ||
| 24 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 2 | $ 1.52 | 1995 | |
| 25 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | Sensor to Pump 1997 L:540->90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
