Suzuki DT 115 Parts Listings 1986 to 1994

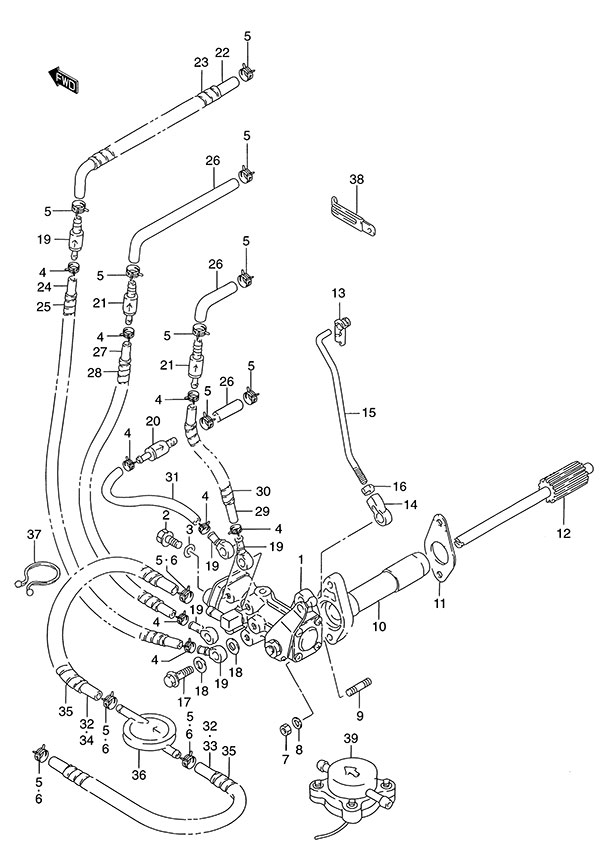

Fig. 16 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-94615 Oil Pump Assembly (NLA)
SKU: 16100-94615 Weight: 0.500000 Brand: Price: $ 286.59 |
Oil Pump Assembly (NLA) | 1 | $ 286.59 | ||
| 2 | 16191-94600 Air Vent Bolt (NLA)
SKU: 16191-94600 Weight: 0.100000 Brand: Price: $ 3.52 |
Air Vent Bolt (NLA) | 1 | $ 3.52 | ||
| 3 | 16192-94600 Air Vent Washer (NLA)
SKU: 16192-94600 Weight: 0.060000 Brand: Price: $ 1.69 |
Air Vent Washer (NLA) | 1 | $ 1.69 | ||
| 4 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 8 | $ 2.12 | ||
| 5-1 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 12 | $ 2.02 | 1989 to 1990 | |
| 5-2 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 8 | $ 2.02 | 1991 to 1994 | |
| 6 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1994 | |
| 7 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | ||
| 8 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 9 | 01421-06257 BOLT, STUD
SKU: 01421-06257 Weight: 0.125000 Brand: Price: $ 2.62 |
BOLT, STUD | 2 | $ 2.62 | ||
| 10 | 16340-94610 Driven Gear Retainer (NLA)
SKU: 16340-94610 Weight: 0.250000 Brand: Price: $ 30.86 |
Driven Gear Retainer (NLA) | 1 | $ 30.86 | ||
| 11 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 12 | 16331-94601 Oil Pump Driven Gear (NLA)
SKU: 16331-94601 Weight: 0.200000 Brand: Price: $ 35.32 |
Oil Pump Driven Gear (NLA) | 1 | $ 35.32 | ||
| 13 | 09209-05017 Connector
SKU: 09209-05017 Weight: 0.060000 Brand: Price: $ 1.51 |
Connector | 1 | $ 1.51 | ||
| 14 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 15 | 16411-94611 Oil Pump Control Rod (NLA)
SKU: 16411-94611 Weight: 0.100000 Brand: Price: $ 10.37 |
Oil Pump Control Rod (NLA) | 1 | $ 10.37 | ||
| 16 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 17 | 09360-06012 Union Bolt
SKU: 09360-06012 Weight: 0.100000 Brand: Price: $ 3.62 |
Union Bolt | 4 | $ 3.62 | ||
| 18 | 09168-06023 Gasket
SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.04 |
Gasket | 8 | $ 2.04 | ||
| 19 | 09363-02002 Union
SKU: 09363-02002 Weight: 0.060000 Brand: Price: $ 8.37 |
Union | 4 | $ 8.37 | ||
| 20 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 1 | $ 19.39 | ||
| 21 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 3 | $ 27.53 | ||
| 22 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | L:2000->100 | |
| 23 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->90 | |
| 24-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1986 to 1990 L:600->350 | |
| 24-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1994 to 1994 L:600->350 | |
| 25 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->340 | |
| 26 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 3 | $ 9.26 | L:2000->45 | |
| 27-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1986 to 1990 L:600->270 | |
| 27-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->270 | |
| 28 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->240 | |
| 29-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1986 to 1990 L:600->160 | |
| 29-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->160 | |
| 30 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->130 | |
| 31-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1986 to 1987 L:600->120 1988 to 1990 L:600->100 | |
| 31-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->100 | |
| 32 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 2 | $ 9.26 | 1986 to 1987 L:2000->130 | |
| 33-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | 1988 to 1990 L:2000->260 | |
| 33-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 1991 to 1994 L:600->260 | |
| 34-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | 1988 to 1990 L:2000->45 | |
| 34-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 1991 to 1994 L:600->45 | |
| 35 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 2 | $ 8.45 | L:540->90 | |
| 36 | 16810-95501 Oil Filter
SKU: 16810-95501 Weight: 0.060000 Brand: Price: $ 15.82 |
Oil Filter | 1 | $ 15.82 | S/N 609018 Older | |
| 37 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 38 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 2 | $ 2.06 | ||
| 39 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
