Suzuki DT 115S Parts Listings 1996 to 2001

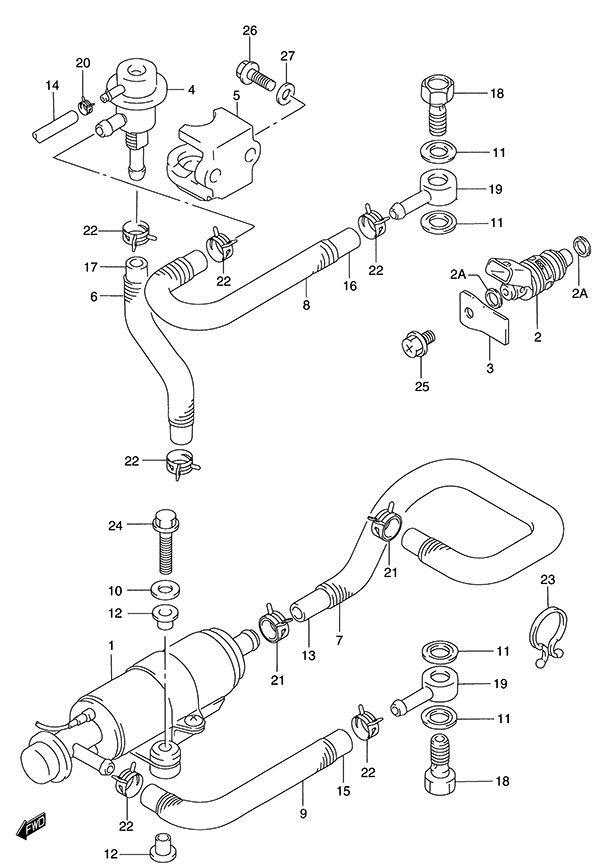

Fig. 15 - Fuel Injector

Ref#	Part Number	Description	Req Qty*	Price Each	Order	Remarks
1	15100-94900 Fuel Pump Assembly SKU: 15100-94900 Weight: 2.000000 Brand: Price: $ 585.31	Fuel Pump Assembly	1	$ 585.31
2	15710-94900 Fuel Injector SKU: 15710-94900 Weight: 0.250000 Brand: Price: $ 316.82	Fuel Injector	4	$ 316.82
2A	15751-94900 Fuel Injector Cushion SKU: 15751-94900 Weight: 0.060000 Brand: Price: $ 2.86	Fuel Injector Cushion	8	$ 2.86
3	15741-94900 Fuel Injector Stopper (NLA) SKU: 15741-94900 Weight: 0.100000 Brand: Price: $ 1.79	Fuel Injector Stopper (NLA)	4	$ 1.79	Not Available
4	15760-92E01 Fuel Pressure Regulator SKU: 15760-92E01 Weight: 0.220000 Brand: Price: $ 246.50	Fuel Pressure Regulator	1	$ 246.50
5	15765-88D20 Fuel Pressure Regulator Holder (NLA) SKU: 15765-88D20 Weight: 0.100000 Brand: Price: $ 6.60	Fuel Pressure Regulator Holder (NLA)	1	$ 6.60	Not Available
6	16911-92E20 Protector SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74	Protector	1	$ 8.74		L:540->310
7	16911-94900 Protector (NLA) SKU: 16911-94900 Weight: 0.100000 Brand: Price: $ 7.23	Protector (NLA)	1	$ 7.23	Not Available
8	16911-92E20 Protector SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74	Protector	1	$ 8.74		L:540->180
9	16911-92E20 Protector SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74	Protector	1	$ 8.74		L:540->145
10	09160-06084 Washer (6.5x18x1.6) SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.88	Washer (6.5x18x1.6)	2	$ 1.88
11	09168-12013 Gasket SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.63	Gasket	4	$ 3.63
12	09169-06062 Washer (6.3x17x1.6) SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.65	Washer (6.3x17x1.6)	6	$ 2.65
13	09354-10173-600 Hose (10x17x600)* SKU: 09354-10173-600 Weight: 0.250000 Brand: Price: $ 18.23	Hose (10x17x600)*	1	$ 18.23	Not Available	Separator to Pump L:600->560
14	09355-35755-600 Hose (L:600) SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94	Hose (L:600)	1	$ 7.94		L:600->380
15	09356-75137-600 Fuel Hose (L:600) SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 115.77	Fuel Hose (L:600)	1	$ 115.77		Pump to Injector L:600->170
16	09356-75137-600 Fuel Hose (L:600) SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 115.77	Fuel Hose (L:600)	1	$ 115.77		Injector to Regulator L:600->190
17	09356-75137-600 Fuel Hose (L:600) SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 115.77	Fuel Hose (L:600)	1	$ 115.77		Regulator to Separator L:600->310
18	09360-12008 Union Bolt SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 10.32	Union Bolt	2	$ 10.32
19	09363-08004 Union SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 17.27	Union	2	$ 17.27
20	09401-06405 Clamp SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.23	Clamp	2	$ 2.23
21	09401-18404 Clip SKU: 09401-18404 Weight: 0.060000 Brand: Price: $ 2.06	Clip	2	$ 2.06
22	09401-11414 Clip SKU: 09401-11414 Weight: 0.060000 Brand: Price: $ 2.90	Clip	6	$ 2.90
23	09408-00024 Clamp SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.60	Clamp	1	$ 1.60
24	01550-06357 BOLT SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.97	BOLT	2	$ 2.97
25	02162-06127 BOLT SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.53	BOLT	4	$ 1.53
26	02162-06257 SCREW SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.54	SCREW	2	$ 1.54

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
