Suzuki DT 115S Parts Listings 1996 to 2001

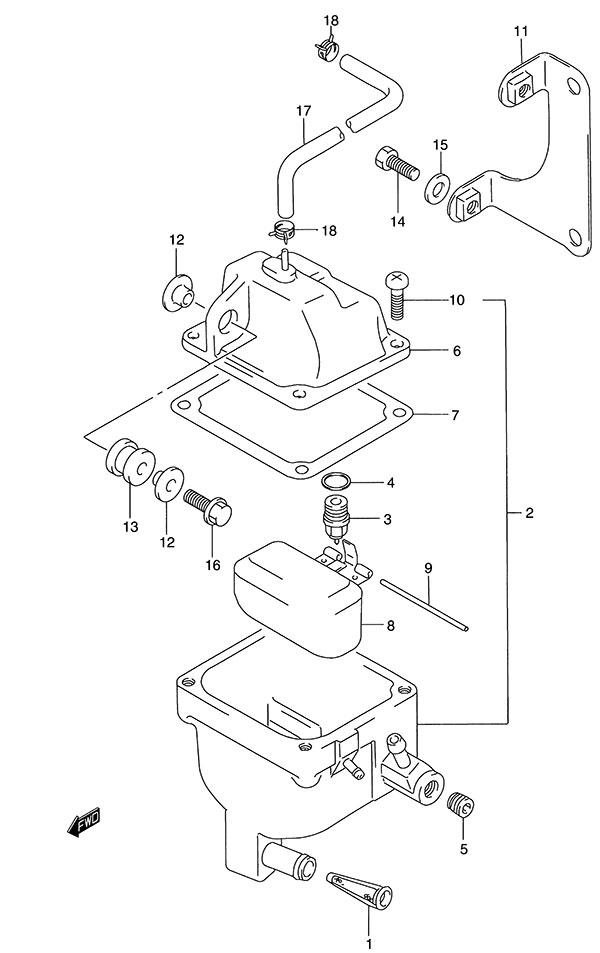

Fig. 14 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15412-92E00 Fuel Filter
SKU: 15412-92E00 Weight: 0.060000 Brand: Price: $ 8.03 |
Fuel Filter | 1 | $ 8.03 | ||
| 2 | 15600-94901-0ED Fuel Vapor Separator Assembly (NLA)
SKU: 15600-94901-0ED Weight: 1.340000 Brand: Price: $ 355.36 |
Fuel Vapor Separator Assembly (NLA) | 1 | $ 355.36 | ||
| 3 | 13370-92E00 Needle Valve Assembly
SKU: 13370-92E00 Weight: 0.060000 Brand: Price: $ 22.80 |
Needle Valve Assembly | 1 | $ 22.80 | ||
| 4 | 13392-16600 Needle Valve Gasket
SKU: 13392-16600 Weight: 0.060000 Brand: Price: $ 2.04 |
Needle Valve Gasket | 1 | $ 2.04 | ||
| 5 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
| 6 | 15620-94900-0ED Fuel Vapor Separator Cover (NLA)
SKU: 15620-94900-0ED Weight: 0.100000 Brand: Price: $ 77.89 |
Fuel Vapor Separator Cover (NLA) | 1 | $ 77.89 | ||
| 7 | 15626-92E12 Fuel Sep Cover Gasket
SKU: 15626-92E12 Weight: 0.060000 Brand: Price: $ 11.67 |
Fuel Sep Cover Gasket | 1 | $ 11.67 | ||
| 8 | 15650-87D00 Float
SKU: 15650-87D00 Weight: 0.060000 Brand: Price: $ 35.84 |
Float | 1 | $ 35.84 | ||
| 9 | 15654-92E00 Float Pin (NLA)
SKU: 15654-92E00 Weight: 0.060000 Brand: Price: $ 2.92 |
Float Pin (NLA) | 1 | $ 2.92 | ||
| 10 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 4 | $ 1.44 | ||
| 11 | 15670-94901 Vapor Separator Bracket (NLA)
SKU: 15670-94901 Weight: 0.100000 Brand: Price: $ 9.39 |
Vapor Separator Bracket (NLA) | 1 | $ 9.39 | ||
| 12 | 09169-06067 Washer (6.8x19x1.6)
SKU: 09169-06067 Weight: 0.060000 Brand: Price: $ 3.40 |
Washer (6.8x19x1.6) | 4 | $ 3.40 | ||
| 13 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 2 | $ 3.31 | ||
| 14 | 01500-08207 BOLT
SKU: 01500-08207 Weight: 0.200000 Brand: Price: $ 2.54 |
BOLT | 2 | $ 2.54 | ||
| 15 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 2 | $ 1.44 | ||
| 16 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 17 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->380 | |
| 18 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
