Suzuki DT 115S Parts Listings 1996 to 2001

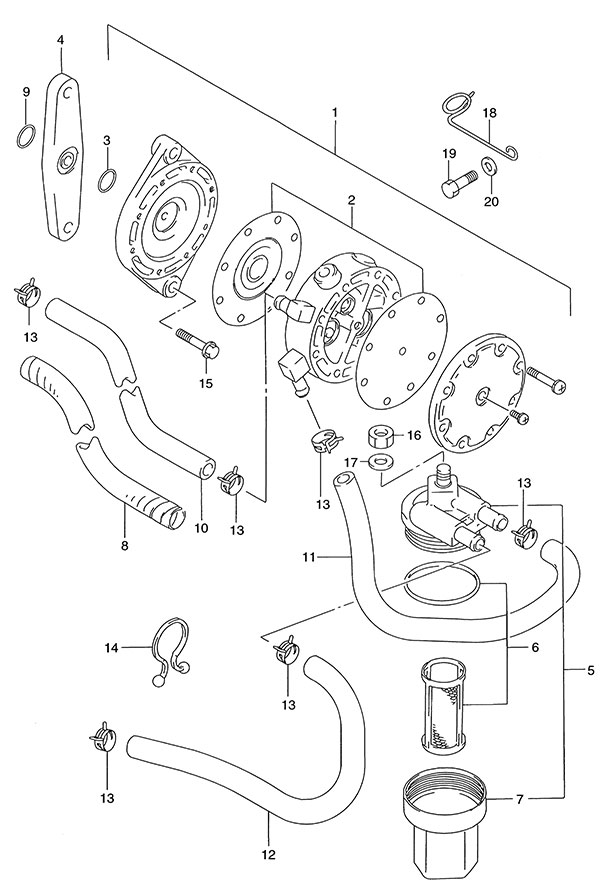

Fig. 13 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-94911 Fuel Pump Assembly (NLA)
SKU: 15100-94911 Weight: 0.800000 Brand: Price: $ 103.34 |
Fuel Pump Assembly (NLA) | 1 | $ 103.34 | ||
| 2 | 15100-7281V Fuel Pump Diaphragm Set
SKU: 15100-7281V Weight: 0.125000 Brand: Price: $ 30.28 |
Fuel Pump Diaphragm Set | 1 | $ 30.28 | ||
| 3 | 15165-93010 Fuel Pump O-Ring
SKU: 15165-93010 Weight: 0.060000 Brand: Price: $ 3.53 |
Fuel Pump O-Ring | 1 | $ 3.53 | ||
| 4 | 15322-93000 Fuel Pump Insulator(NLA)
SKU: 15322-93000 Weight: 0.060000 Brand: Price: $ 13.35 |
Fuel Pump Insulator(NLA) | 1 | $ 13.35 | ||
| 5 | 15410-95541 Fuel Filter Assy
SKU: 15410-95541 Weight: 0.120000 Brand: Price: $ 24.50 |
Fuel Filter Assy | 1 | $ 24.50 | ||
| 6 | 15430-87D10 Fuel Filter Strainer Set
SKU: 15430-87D10 Weight: 0.060000 Brand: Price: $ 12.95 |
Fuel Filter Strainer Set | 1 | $ 12.95 | ||
| 7 | 15413-87D10 Fuel Strainer Cup
SKU: 15413-87D10 Weight: 0.060000 Brand: Price: $ 9.10 |
Fuel Strainer Cup | 1 | $ 9.10 | ||
| 8 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->350 | |
| 9 | 09280-12012 O-Ring
SKU: 09280-12012 Weight: 0.060000 Brand: Price: $ 4.73 |
O-Ring | 1 | $ 4.73 | ||
| 10 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | Pump to Separator L:600->400 | |
| 11 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | Filter to Pump L:600->200 | |
| 12 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | Connector to Filter L:600->230 | |
| 13 | 09401-11415 Clip
SKU: 09401-11415 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 6 | $ 2.27 | ||
| 14 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 15 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 16 | 08310-00087 Nut (8mm)
SKU: 08310-00087 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut (8mm) | 1 | $ 1.85 | ||
| 17 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 18 | 65793-94600 Fuel Hose Holder (NLA)
SKU: 65793-94600 Weight: 0.100000 Brand: Price: $ 5.95 |
Fuel Hose Holder (NLA) | 1 | $ 5.95 | 1999 to 2001 | |
| 19 | 09100-08160 Bolt (8x45)
SKU: 09100-08160 Weight: 0.060000 Brand: Price: $ 3.77 |
Bolt (8x45) | 1 | $ 3.77 | 1999 to 2001 | |
| 20 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | 1999 to 2001 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
