Suzuki DT 115S Parts Listings 1996 to 2001

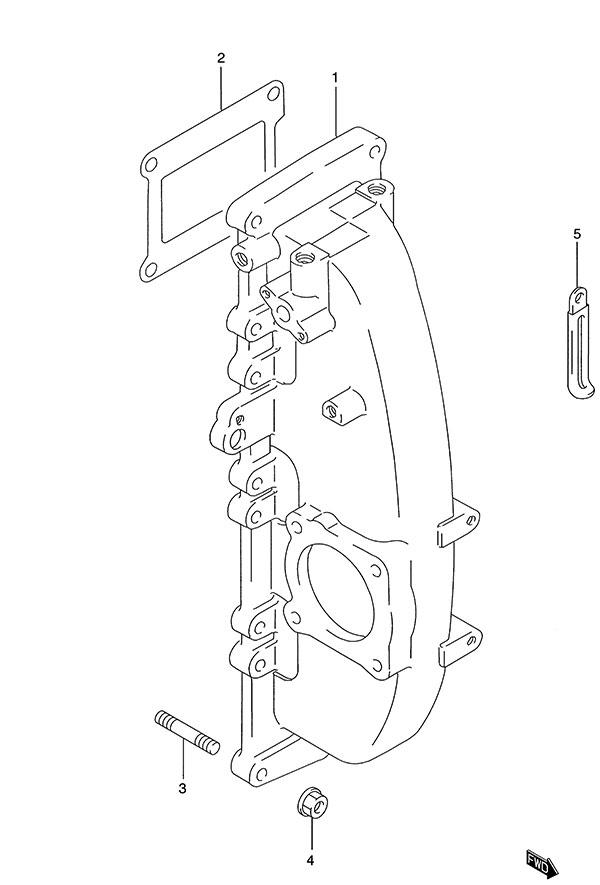

Fig. 5 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13111-94900-0ED Intake Manifold (NLA)
SKU: 13111-94900-0ED Weight: 1.000000 Brand: Price: $ 462.67 |
Intake Manifold (NLA) | 1 | $ 462.67 | ||
| 2 | 13121-94510 Inlet Case Gasket (NLA)
SKU: 13121-94510 Weight: 0.060000 Brand: Price: $ 5.45 |
Inlet Case Gasket (NLA) | 4 | $ 5.45 | ||
| 3 | 01421-08357 BOLT,STUD
SKU: 01421-08357 Weight: 0.060000 Brand: Price: $ 4.62 |
BOLT,STUD | 16 | $ 4.62 | ||
| 4 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 16 | $ 2.27 | ||
| 5 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 2 | $ 3.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
