Suzuki DT 115 Parts Listings 1986 to 2001

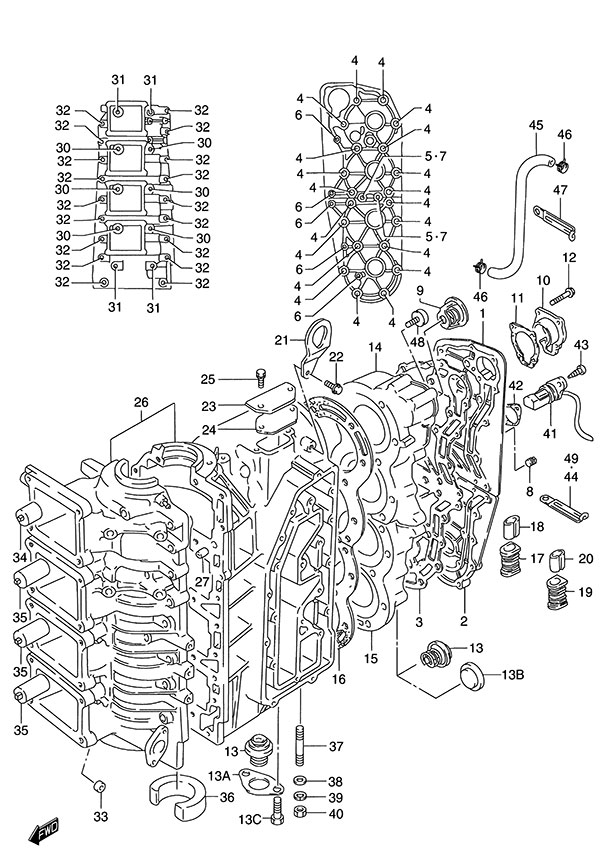

Fig. 1 - Crankcase
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11151-94620-0ED Cylinder Head Upper Cover (NLA)
SKU: 11151-94620-0ED Weight: 2.000000 Brand: Price: $ 62.84 |
Cylinder Head Upper Cover (NLA) | 1 | $ 62.84 | ||
| 2 | 11161-94620-0ED Cylinder Head Lower Cover
SKU: 11161-94620-0ED Weight: 2.000000 Brand: Price: $ 83.23 |
Cylinder Head Lower Cover | 1 | $ 83.23 | ||
| 3 | 11162-94630 Cylinder Head Cover Gasket (NLA)
SKU: 11162-94630 Weight: 0.500000 Brand: Price: $ 40.52 |
Cylinder Head Cover Gasket (NLA) | 1 | $ 40.52 | ||
| 4 | 01560-10807 BOLT
SKU: 01560-10807 Weight: 0.120000 Brand: Price: $ 4.46 |
BOLT | 20 | $ 4.46 | ||
| 5 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 2 | $ 1.44 | ||
| 6 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 5 | $ 2.74 | ||
| 7 | 01550-08807 BOLT
SKU: 01550-08807 Weight: 0.080000 Brand: Price: $ 4.11 |
BOLT | 2 | $ 4.11 | ||
| 8 | 09246-04005 Plug
SKU: 09246-04005 Weight: 0.060000 Brand: Price: $ 4.11 |
Plug | 1 | $ 4.11 | ||
| 9 | 17670-95303 Thermostat (42c)
SKU: 17670-95303 Weight: 0.160000 Brand: Price: $ 35.03 |
Thermostat (42c) | 1 | $ 35.03 | ||
| 10 | 17681-94612-0ED Thermostat Cover
SKU: 17681-94612-0ED Weight: 0.200000 Brand: Price: $ 28.55 |
Thermostat Cover | 1 | $ 28.55 | ||
| 11 | 17685-94610 Thermostat Gasket
SKU: 17685-94610 Weight: 0.060000 Brand: Price: $ 6.69 |
Thermostat Gasket | 1 | $ 6.69 | ||
| 12 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 13 | 17660-94601 Water Pressure Valve
SKU: 17660-94601 Weight: 0.060000 Brand: Price: $ 14.04 |
Water Pressure Valve | 1 | $ 14.04 | ||
| 13A | 17665-94600 Pressure Valve Cover (NLA)
SKU: 17665-94600 Weight: 0.060000 Brand: Price: $ 3.07 |
Pressure Valve Cover (NLA) | 1 | $ 3.07 | 1997 to 2001 | |
| 13B | 17666-94600 Pressure Valve Plug (NLA)
SKU: 17666-94600 Weight: 0.060000 Brand: Price: $ 3.48 |
Pressure Valve Plug (NLA) | 1 | $ 3.48 | 1997 to 2001 | |
| 13C | 09128-06021 Bolt (6x14)
SKU: 09128-06021 Weight: 0.060000 Brand: Price: $ 1.91 |
Bolt (6x14) | 2 | $ 1.91 | 1997 to 2001 | |
| 14-1 | 11111-94610-0ED Upper Cylinder Head (NLA)
SKU: 11111-94610-0ED Weight: 4.500000 Brand: Price: $ 243.34 |
Upper Cylinder Head (NLA) | 1 | $ 243.34 | ||
| 14-2 | 11111-94900-0ED Upper Cylinder Head
SKU: 11111-94900-0ED Weight: 10.000000 Brand: Price: $ 208.22 |
Upper Cylinder Head | 1 | $ 208.22 | DT115S | |
| 15-1 | 11121-94610-0ED Lower Cylinder Head (NLA)
SKU: 11121-94610-0ED Weight: 10.000000 Brand: Price: $ 200.39 |
Lower Cylinder Head (NLA) | 1 | $ 200.39 | ||
| 15-2 | 11121-94900-0ED Lower Cylinder Head (NLA)
SKU: 11121-94900-0ED Weight: 10.000000 Brand: Price: $ 205.89 |
Lower Cylinder Head (NLA) | 1 | $ 205.89 | DT115S | |
| 16 | 11141-94620 Cylinder Head Gasket
SKU: 11141-94620 Weight: 0.340000 Brand: Price: $ 60.40 |
Cylinder Head Gasket | 1 | $ 60.40 | ||
| 17 | 11181-94501 Cylinder Head Connector
SKU: 11181-94501 Weight: 0.060000 Brand: Price: $ 9.95 |
Cylinder Head Connector | 1 | $ 9.95 | ||
| 18 | 11182-94500 Cylinder Head Connector Insert
SKU: 11182-94500 Weight: 0.060000 Brand: Price: $ 3.53 |
Cylinder Head Connector Insert | 1 | $ 3.53 | ||
| 19 | 11171-94501 Cylinder Head Connector
SKU: 11171-94501 Weight: 0.060000 Brand: Price: $ 10.07 |
Cylinder Head Connector | 1 | $ 10.07 | ||
| 20 | 11172-94500 Cylinder Head Connector Insert
SKU: 11172-94500 Weight: 0.060000 Brand: Price: $ 3.53 |
Cylinder Head Connector Insert | 1 | $ 3.53 | ||
| 21-1 | 11291-94600 Engine Hook (NLA)
SKU: 11291-94600 Weight: 0.250000 Brand: Price: $ 5.27 |
Engine Hook (NLA) | 1 | $ 5.27 | ||
| 21-2 | 11291-94600 Engine Hook (NLA)
SKU: 11291-94600 Weight: 0.250000 Brand: Price: $ 5.27 |
Engine Hook (NLA) | 2 | $ 5.27 | DT115S | |
| 22-1 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 22-2 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | DT115S | |
| 23 | 11231-94602-0ED Cylinder Water Jacket Cover (NLA)
SKU: 11231-94602-0ED Weight: 0.100000 Brand: Price: $ 9.97 |
Cylinder Water Jacket Cover (NLA) | 1 | $ 9.97 | ||
| 24 | 11232-94610 Water Jacket Cover Gasket (NLA)
SKU: 11232-94610 Weight: 0.060000 Brand: Price: $ 6.79 |
Water Jacket Cover Gasket (NLA) | 1 | $ 6.79 | ||
| 25 | 01570-06207 BOLT
SKU: 01570-06207 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 2 | $ 2.72 | ||
| 26-1 | 11301-94625-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11301-94625-0ED Weight: 0.100000 Brand: Price: $ 1,321.92 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,321.92 | 1986 to 1996 Requires Ref# 13A, 13B 13C | |
| 26-2 | 11301-94640-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11301-94640-0ED Weight: 50.000000 Brand: Price: $ 1,722.88 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,722.88 | 1997 | |
| 26-3 | 11301-94900-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11301-94900-0ED Weight: 0.100000 Brand: Price: $ 1,321.92 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,321.92 | DT115S 1996 Requires Ref# 13A, 13B 13C | |
| 26-4 | 11301-94910-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11301-94910-0ED Weight: 50.000000 Brand: Price: $ 1,930.00 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,930.00 | DT115S 1997 | |
| 26-5 | 11301-94920-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11301-94920-0ED Weight: 50.000000 Brand: Price: $ 1,913.47 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,913.47 | DT115S 1998 to 2001 | |
| 27 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 30 | 01560-10557 BOLT
SKU: 01560-10557 Weight: 0.125000 Brand: Price: $ 4.11 |
BOLT | 6 | $ 4.11 | ||
| 31 | 01560-10757 Bolt (NLA)
SKU: 01560-10757 Weight: 0.100000 Brand: Price: $ 3.28 |
Bolt (NLA) | 4 | $ 3.28 | ||
| 32 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 18 | $ 3.48 | ||
| 33 | 16351-94610 Drive Gear Stopper (NLA)
SKU: 16351-94610 Weight: 0.100000 Brand: Price: $ 4.55 |
Drive Gear Stopper (NLA) | 1 | $ 4.55 | ||
| 34 | 11315-94600 Crankcase Plug (NLA)
SKU: 11315-94600 Weight: 0.100000 Brand: Price: $ 2.76 |
Crankcase Plug (NLA) | 1 | $ 2.76 | ||
| 35 | 11316-94600 Crankcase Plug (NLA)
SKU: 11316-94600 Weight: 0.060000 Brand: Price: $ 3.65 |
Crankcase Plug (NLA) | 3 | $ 3.65 | ||
| 36 | 16361-94600 Oil Gear Plug (NLA)
SKU: 16361-94600 Weight: 0.060000 Brand: Price: $ 7.17 |
Oil Gear Plug (NLA) | 1 | $ 7.17 | ||
| 37 | 09108-10026 Stud Bolt (NLA)
SKU: 09108-10026 Weight: 0.100000 Brand: Price: $ 2.11 |
Stud Bolt (NLA) | 2 | $ 2.11 | ||
| 38 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 2 | $ 1.87 | ||
| 39 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 40 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 41-1 | 34870-94630 Cooling Water Sensor
SKU: 34870-94630 Weight: 0.100000 Brand: Price: $ 84.62 |
Cooling Water Sensor | 1 | $ 84.62 | S/N 011278 Older Requires Ref# 43-2 | |
| 41-2 | 34870-94630 Cooling Water Sensor
SKU: 34870-94630 Weight: 0.100000 Brand: Price: $ 84.62 |
Cooling Water Sensor | 1 | $ 84.62 | S/N 011279 Newer | |
| 41-3 | 34820-94610 Cylinder Sensor Assembly (NLA)
SKU: 34820-94610 Weight: 0.080000 Brand: Price: $ 50.19 |
Cylinder Sensor Assembly (NLA) | 1 | $ 50.19 | 1992 to 1996 | |
| 42 | 34875-94660 Cooling Water Sensor Gasket (NLA)
SKU: 34875-94660 Weight: 0.060000 Brand: Price: $ 3.77 |
Cooling Water Sensor Gasket (NLA) | 1 | $ 3.77 | ||
| 43-1 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 2 | $ 2.62 | S/N 011278 Older | |
| 43-2 | 03121-0516A SCREW
SKU: 03121-0516A Weight: 0.060000 Brand: Price: $ 1.96 |
SCREW | 2 | $ 1.96 | S/N 011279 Newer | |
| 44 | 09404-10206 Clamp
SKU: 09404-10206 Weight: 0.200000 Brand: Price: $ 2.04 |
Clamp | 1 | $ 2.04 | ||
| 45 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->180 | |
| 46 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 2 | $ 1.78 | ||
| 47 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 48 | 11130-94600 Zinc Anode
SKU: 11130-94600 Weight: 0.060000 Brand: Price: $ 9.01 |
Zinc Anode | 1 | $ 9.01 | ||
| 49 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
