Suzuki DT 30C Parts Listings 1988 to 1997

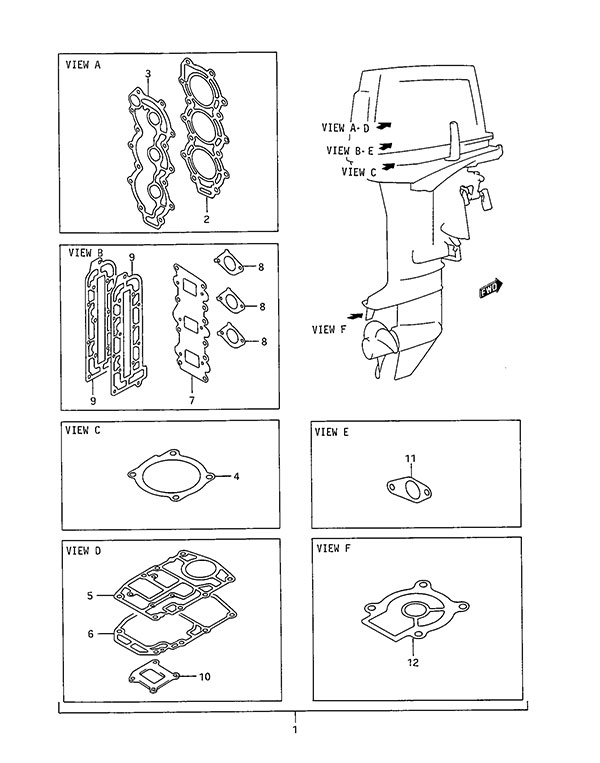

Fig. 43 - Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-95856 Engine Gasket Set (NLA)
SKU: 11400-95856 Weight: 5.000000 Brand: Price: $ 156.18 |
Engine Gasket Set (NLA) | 1 | $ 156.18 | ||
| 2 | 11141-95D40 Cylinder Head Gasket
SKU: 11141-95D40 Weight: 0.180000 Brand: Price: $ 38.77 |
Cylinder Head Gasket | 1 | $ 38.77 | ||
| 3 | 11162-95D20 Cylinder Head Cover Gasket
SKU: 11162-95D20 Weight: 0.250000 Brand: Price: $ 23.29 |
Cylinder Head Cover Gasket | 1 | $ 23.29 | ||
| 4 | 11413-95D10 Upper Oil Seal Hsg Gasket
SKU: 11413-95D10 Weight: 0.060000 Brand: Price: $ 4.33 |
Upper Oil Seal Hsg Gasket | 1 | $ 4.33 | ||
| 5 | 11433-95D11 Under Oil Seal Hsg Gasket
SKU: 11433-95D11 Weight: 0.250000 Brand: Price: $ 10.89 |
Under Oil Seal Hsg Gasket | 1 | $ 10.89 | ||
| 6 | 11434-95D10 Oil Seal Housing Gasket
SKU: 11434-95D10 Weight: 0.250000 Brand: Price: $ 14.95 |
Oil Seal Housing Gasket | 1 | $ 14.95 | ||
| 7 | 13121-95D01 Inlet Case Gasket (NLA)
SKU: 13121-95D01 Weight: 0.120000 Brand: Price: $ 13.01 |
Inlet Case Gasket (NLA) | 1 | $ 13.01 | ||
| 8 | 13125-95D20 Carburetor Gasket
SKU: 13125-95D20 Weight: 0.060000 Brand: Price: $ 4.77 |
Carburetor Gasket | 3 | $ 4.77 | ||
| 9 | 14151-95D10 Exhaust Cover Gasket
SKU: 14151-95D10 Weight: 0.060000 Brand: Price: $ 13.62 |
Exhaust Cover Gasket | 2 | $ 13.62 | ||
| 10 | 14215-95D10 Exhaust Tube Gasket (NLA)
SKU: 14215-95D10 Weight: 0.060000 Brand: Price: $ 4.53 |
Exhaust Tube Gasket (NLA) | 1 | $ 4.53 | ||
| 11 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 12 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
