Suzuki DT 30C Parts Listings 1988 to 1997

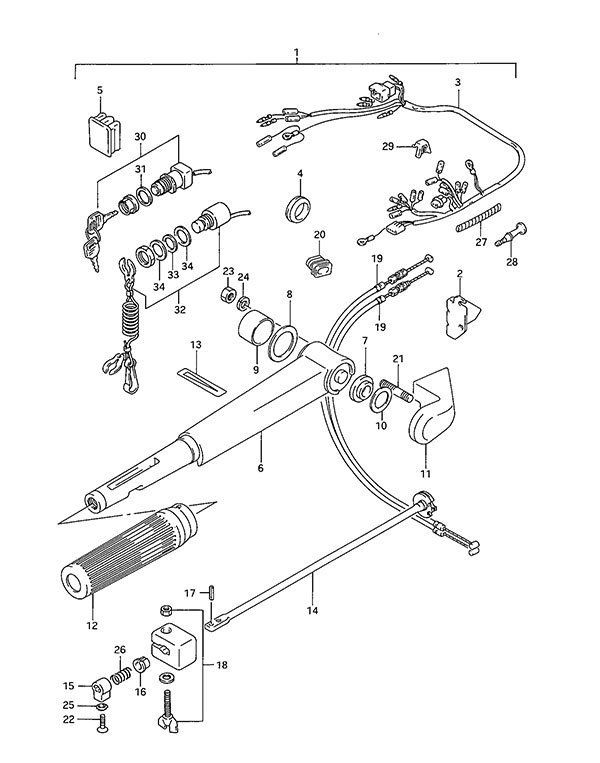

Fig. 42 - Opt: Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 63001-95D41-0ED Tiller Handle Assembly (NLA)
SKU: 63001-95D41-0ED Weight: 0.100000 Brand: Price: $ 364.62 |
Tiller Handle Assembly (NLA) | 1 | $ 364.62 | ||
| 1-2 | 63001-95D70-0ED Tiller Handle Assembly (NLA)
SKU: 63001-95D70-0ED Weight: 0.100000 Brand: Price: $ 325.85 |
Tiller Handle Assembly (NLA) | 1 | $ 325.85 | 1996 to 1997 | |
| 2 | 19184-95D01 Throttle Cable Bracket (NLA)
SKU: 19184-95D01 Weight: 0.200000 Brand: Price: $ 10.51 |
Throttle Cable Bracket (NLA) | 1 | $ 10.51 | ||
| 3 | 36610-95DC0 Wiring Harness Assembly (NLA)
SKU: 36610-95DC0 Weight: 5.000000 Brand: Price: $ 115.13 |
Wiring Harness Assembly (NLA) | 1 | $ 115.13 | 1995 to 1997 | |
| 4 | 43753-94400 Steering Bracket Grommet (NLA)
SKU: 43753-94400 Weight: 0.100000 Brand: Price: $ 2.76 |
Steering Bracket Grommet (NLA) | 1 | $ 2.76 | ||
| 5 | 61124-95D01 Cable Grommet (NLA)
SKU: 61124-95D01 Weight: 0.125000 Brand: Price: $ 9.16 |
Cable Grommet (NLA) | 1 | $ 9.16 | ||
| 6 | 63111-96332-0ED Tiller Handle
SKU: 63111-96332-0ED Weight: 2.000000 Brand: Price: $ 101.77 |
Tiller Handle | 1 | $ 101.77 | ||
| 7 | 63114-95L00 Handle Cover Spacer
SKU: 63114-95L00 Weight: 0.060000 Brand: Price: $ 5.65 |
Handle Cover Spacer | 1 | $ 5.65 | ||
| 8 | 63115-96310 Handle Cover Inside Spacer
SKU: 63115-96310 Weight: 0.060000 Brand: Price: $ 6.26 |
Handle Cover Inside Spacer | 1 | $ 6.26 | ||
| 9 | 63116-96301 Tiller Handle Bushing
SKU: 63116-96301 Weight: 0.060000 Brand: Price: $ 5.98 |
Tiller Handle Bushing | 1 | $ 5.98 | ||
| 10 | 63118-94300 Tiller Handle Shim (0.3)
SKU: 63118-94300 Weight: 0.062500 Brand: Price: $ 3.57 |
Tiller Handle Shim (0.3) | 1 | $ 3.57 | ||
| 11-1 | 63121-96320-0ED Tiller Handle Cover (NLA)
SKU: 63121-96320-0ED Weight: 0.100000 Brand: Price: $ 37.95 |
Tiller Handle Cover (NLA) | 1 | $ 37.95 | ||
| 11-2 | 63121-96401-0ED Tiller Handle Cover (NLA)
SKU: 63121-96401-0ED Weight: 0.600000 Brand: Price: $ 71.95 |
Tiller Handle Cover (NLA) | 1 | $ 71.95 | 1995 to 1997 | |
| 12 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 13 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 14 | 63220-96302 Handle Rod
SKU: 63220-96302 Weight: 1.000000 Brand: Price: $ 29.78 |
Handle Rod | 1 | $ 29.78 | ||
| 15 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 16 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 17 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 18 | 63240-97E20 Handle Grip Adjuster
SKU: 63240-97E20 Weight: 0.250000 Brand: Price: $ 27.71 |
Handle Grip Adjuster | 1 | $ 27.71 | ||
| 19 | 63610-95D02 Throttle Cable Assembly (NLA)
SKU: 63610-95D02 Weight: 0.200000 Brand: Price: $ 17.36 |
Throttle Cable Assembly (NLA) | 2 | $ 17.36 | ||
| 20 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 21-1 | 09108-08147 Stud Bolt (8x61)
SKU: 09108-08147 Weight: 0.060000 Brand: Price: $ 7.17 |
Stud Bolt (8x61) | 2 | $ 7.17 | ||
| 21-2 | 09108-08219 Stud Bolt (8x25)
SKU: 09108-08219 Weight: 0.200000 Brand: Price: $ 5.08 |
Stud Bolt (8x25) | 2 | $ 5.08 | 1995 to 1997 | |
| 22 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 23 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 24 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 25 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 26 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 27 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 28 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 29 | 36641-94710 Cable Stopper (NLA)
SKU: 36641-94710 Weight: 0.100000 Brand: Price: $ 2.53 |
Cable Stopper (NLA) | 1 | $ 2.53 | ||
| 30 | 37110-95D21 Ignition Switch Assembly (NLA)
SKU: 37110-95D21 Weight: 0.500000 Brand: Price: $ 76.76 |
Ignition Switch Assembly (NLA) | 1 | $ 76.76 | ||
| 31 | 09160-25069 Washer
SKU: 09160-25069 Weight: 0.100000 Brand: Price: $ 5.05 |
Washer | 1 | $ 5.05 | ||
| 32 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 33 | 09160-12087 Washer
SKU: 09160-12087 Weight: 0.200000 Brand: Price: $ 1.99 |
Washer | 1 | $ 1.99 | ||
| 34 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 2 | $ 3.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
